Part Number # PB9
SKU # 2294185
PB9

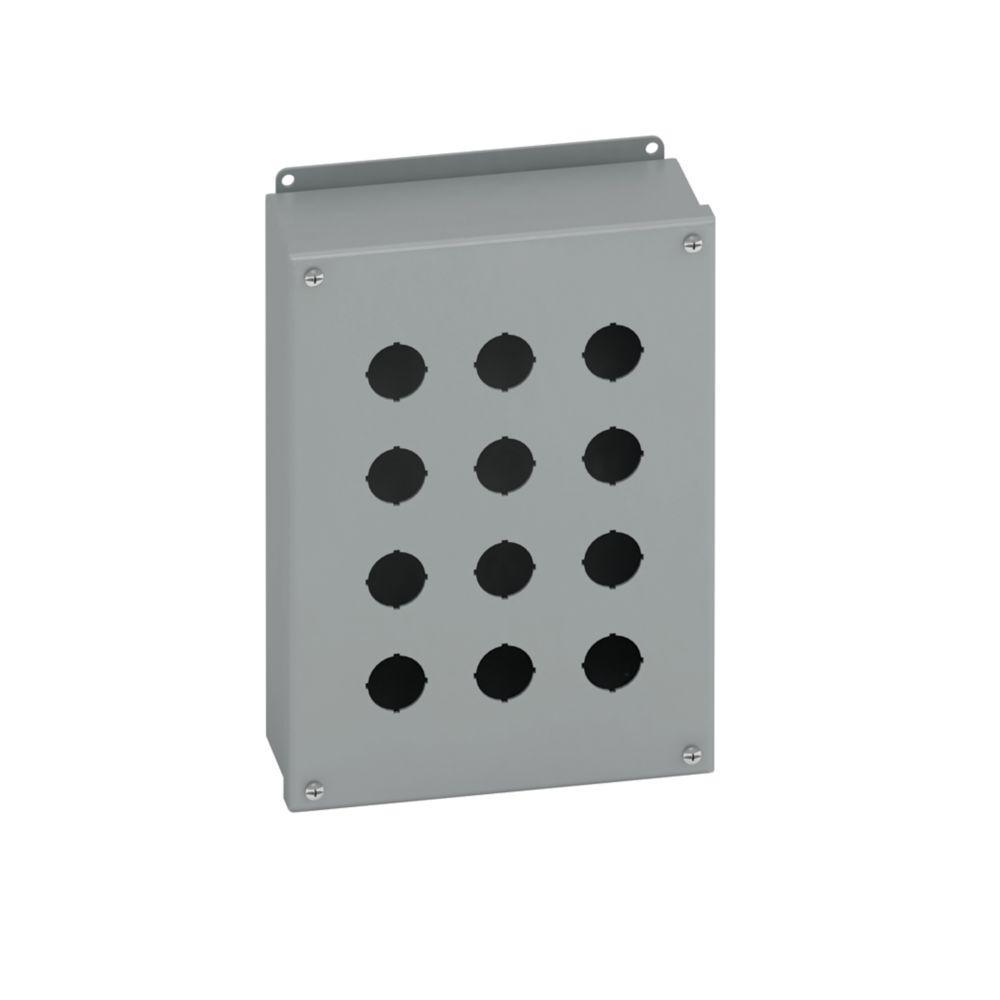

B-Line PB9 Pushbutton Enclosure
Part Number # PB9
SKU # 2294185
B-Line PB9 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | PB9 |
| SKU #: | 2294185 |
| NEMA Rating: | NEMA 4X/12/13/IP65 |
| Mounting type: | Feet/Wall |
| UNSPSC: | 39121326 |
| UPC: | 00782051701029 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line PB9 Pushbutton Enclosure
Brand: B-Line
Part Number: PB9
B-Line Pushbutton Enclosure, Standard, 9-1/2 in Length, 8-1/2 in Width, 3 in Depth, NEMA 12, Removable Concealed Detachable Hinged Cover, Lock: Screw, Wall Mount, 14 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-PB9 (N) PB9 ENCLOSURE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series push button enclosures, 9.5" height, 3" length, 8.5" width, NEMA 12, Hinged cover, PB enclosure, Surface mounted, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
PB9 Application
Electrical Assemblies, Panels and EOEMsPB9 Item Features
- Enclosure and cover are fabricated from 14 ga steel
- All continuous welded seams are finished smooth
- Cover is attached with captive screws which thread into sealed well nuts
- Cover has concealed, detachable hinges which allow for quick removal and can be hinged on either side
- Cover has a fixed, oil-resistant gasket
- Weldnut in body of enclosure for grounding
- Cover is pre-punched with standard 30.5 mm or miniature 22.5 mm "4-way" pushbutton holes
- External mounting feet are provided for secure wall mounting
- Recessed pullring
PB9 Standards
CSA C22.2 #94|IEC 60529|UL 508ASKU #2294185Part Number #PB9UNSPSC39121326UPC00782051701029
Image provided may only be a representation of final product and may include optional equipment
