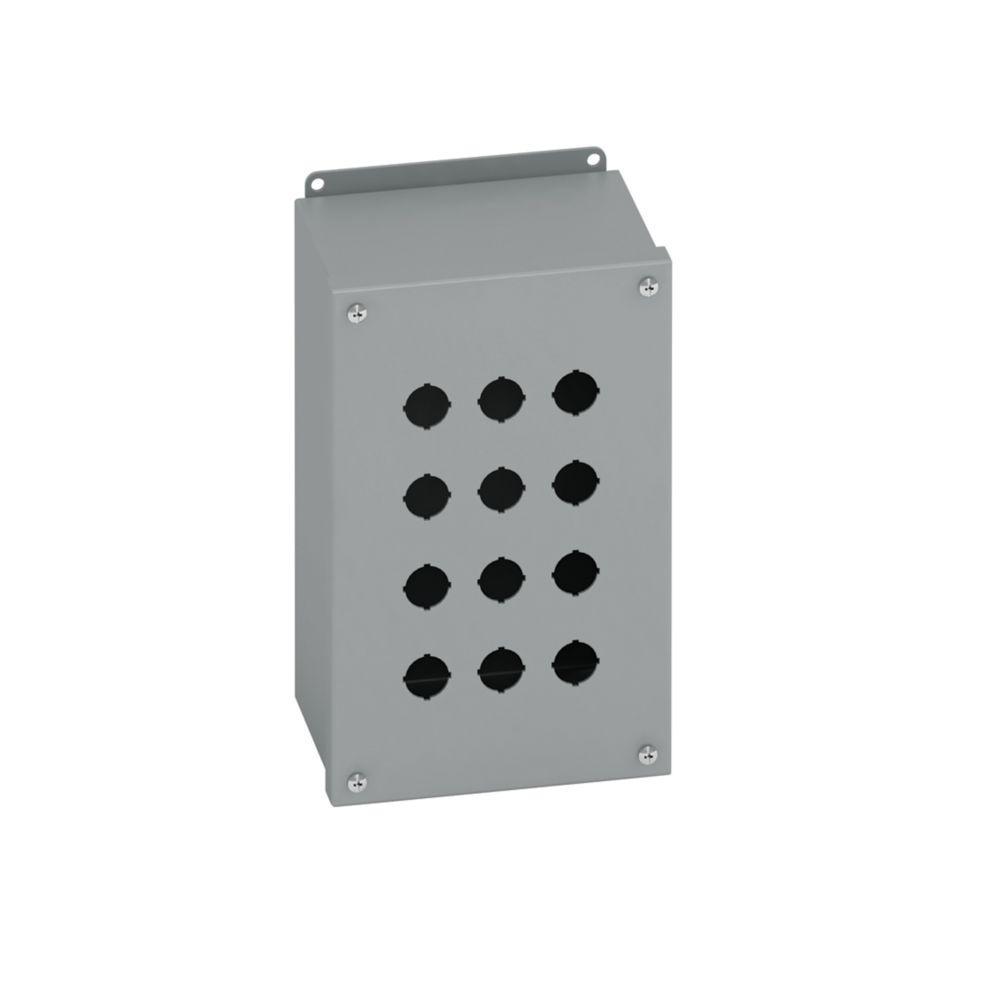

B-Line PBS3B Pushbutton Enclosure
Part Number # PBS3B
SKU # 2412801
B-Line PBS3B Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | PBS3B |
| SKU #: | 2412801 |
| NEMA Rating: | NEMA 12/13/IP65 |
| Mounting type: | Feet/Wall |
| UNSPSC: | 39121326 |
| UPC: | 00782051702163 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line PBS3B Pushbutton Enclosure
Brand: B-Line
Part Number: PBS3B
B-Line Pushbutton Enclosure, 7 in Length, 2-3/4 in Width, 3-1/2 in D, NEMA 12/13/IP65, Screw Cover, 3 Outlets, Feet/Wall Mount, Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-PBS3B (N) PBS3B NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series push button enclosures, 7" height, 3.5" length, 2.75" width, NEMA 12, Hinged cover, PBSB enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
PBS3B Application
For mounting 22.5 mm miniature oil-tight pushbuttons, Type 12 pushbuttons, pilot lights, switches and protects against circulating dust, falling dirt, dripping non-corrosive liquids and industrial applicationsPBS3B Item Features
- All continuous welded seams are finished smooth
- Covers more than 2-3/4 in wide have concealed, detachable hinges which allow for quick removal and can be hinged ON either side
- Cover has a fixed oil resistant gasket
- Weldnut in body of enclosure for grounding
- Cover is pre-punched with miniature 22.5 mm "4-way" pushbutton holes
- External mounting feet are provided for secure wall mounting
PBS3B Standards
UL 508|CSA C22.2 No. 94|IEC 60529SKU #2412801Part Number #PBS3BUNSPSC39121326UPC00782051702163
Image provided may only be a representation of final product and may include optional equipment
