PV4

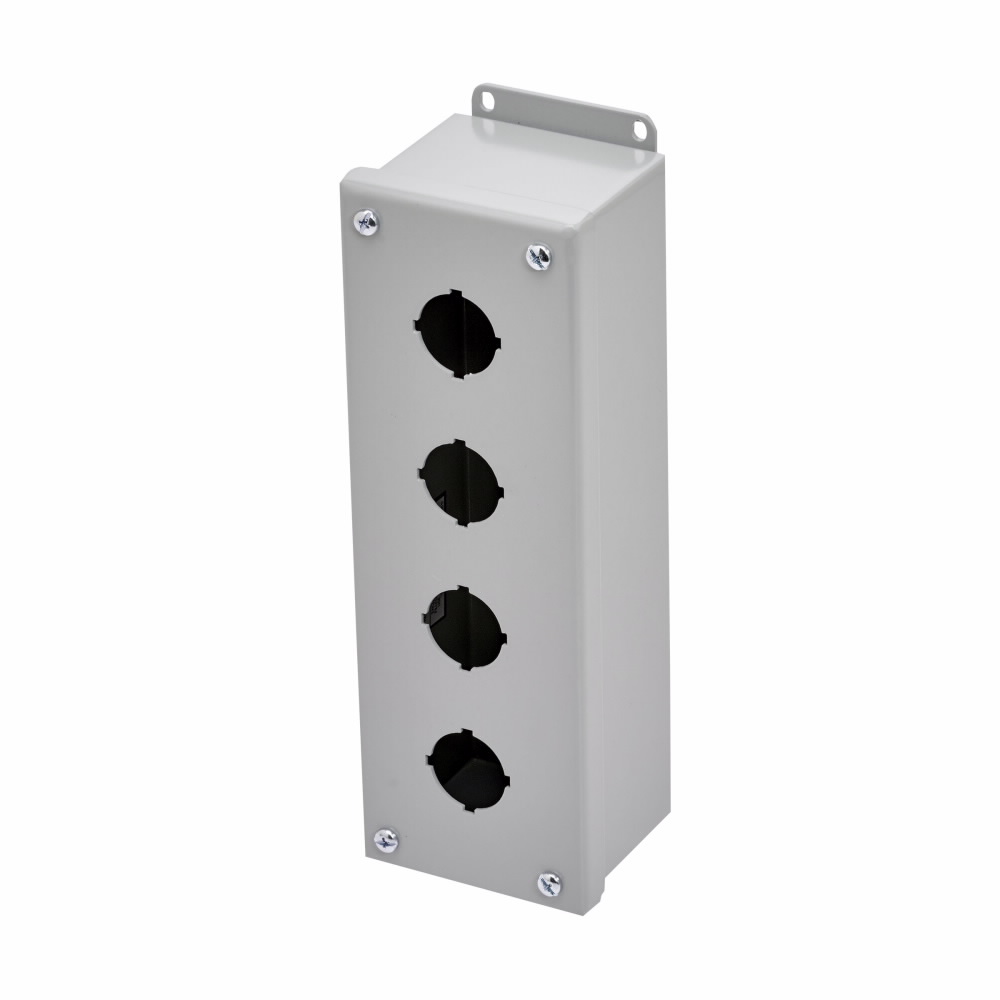

B-Line PV4 Pushbutton Enclosure
Part Number # PV4
SKU # 2232794
B-Line PV4 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | PV4 |
| SKU #: | 2232794 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 4X/12/13/IP65 |
| Number of Outlets: | 4 |
| Series: | PV Series |
| Type: | Vertical Column |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 2-3/4, 2-3/4 in |
| Length: | 10-1/4, 10-1/4 in |
| Material: | Steel |
| Mounting type: | Feet/Wall |
| Width: | 3-1/4, 3-1/4 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121326 |
| UPC: | 00782051702460 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line PV4 Pushbutton Enclosure
Brand: B-Line
Part Number: PV4
B-Line Pushbutton Enclosure, Vertical Column, Series: PV Series, 10-1/4 in Length, 3-1/4 in Width, 2-3/4 in D, NEMA 4X/12/13/IP65, Screw Cover, 4 Outlets, Feet/Wall Mount, Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-PV4 (N) PV4 ENCLOSURE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series push button enclosures, 7.25" height, 4.75" length, 6.25" width, NEMA 12, Screw cover, PV enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
PV4 Application
For mounting 30.5 mm standard oil-tight pushbuttons, pilot lights, switches and protects against circulating dust, falling dirt and dipping non-corrosive liquidsPV4 Item Features
- All continuous welded seams are finished smooth
- Cover has concealed, detachable hinges which allow for quick removal and can be hinged ON either side
- Cover has a fixed oil resistant gasket
- Weldnut in body of enclosure for grounding
- Cover is pre-punched with standard 30.5 mm or miniature 22.5 mm "4-way" pushbutton holes
- External mounting feet are provided for secure wall mounting
PV4 Standards
UL 508|CSA C22.2 No. 94|IEC 60529SKU #2232794Part Number #PV4UNSPSC39121326UPC00782051702460
