PV5

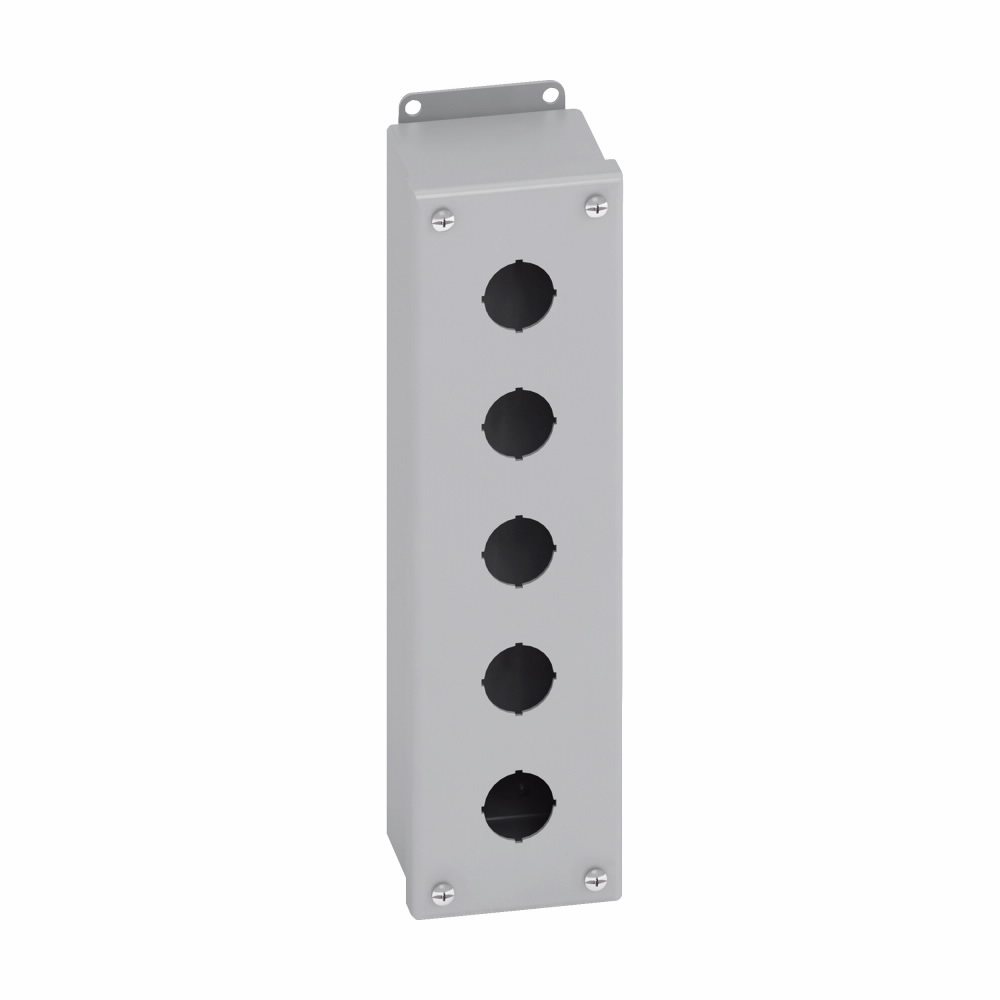

B-Line PV5 Pushbutton Enclosure
Part Number # PV5
SKU # 2354353
B-Line PV5 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | PV5 |
| SKU #: | 2354353 |
| Finish: | Polyester Powder Coated, Powder Coated |
| NEMA Rating: | NEMA 12 |
| Type: | Vertical |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 2-3/4 in |
| Length: | 12-1/2 in |
| Material: | 14 ga Steel, Steel |
| Mounting type: | Wall |
| Width: | 3-1/4 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121326 |
| UPC: | 00782051702484 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line PV5 Pushbutton Enclosure
Brand: B-Line
Part Number: PV5
B-Line Pushbutton Enclosure, Vertical, 12-1/2 in Length, 3-1/4 in Width, 2-3/4 in Depth, NEMA 12, Removable Concealed Detachable Hinged Cover, Lock: Screw, Wall Mount, 14 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-PV5 (N) PV5 ENCLOSURE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series push button enclosures, 12.50" height, 2.75" length, 3.25" width, NEMA 12, Screw cover, PV enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
PV5 Application
Electrical Assemblies, Panels and EOEMsPV5 Item Features
- Enclosure and cover are fabricated from 14 ga steel
- All continuous welded seams are finished smooth
- Cover is attached with captive screws which thread into sealed well nuts
- Cover has concealed, detachable hinges which allow for quick removal and can be hinged on either side
- Cover has a fixed, oil-resistant gasket
- Weldnut in body of enclosure for grounding
- Cover is pre-punched with standard 30.5 mm or miniature 22.5 mm "4-way" pushbutton holes
- External mounting feet are provided for secure wall mounting
- 30.5 mm device hole
PV5 Standards
CSA C22.2 #94|IEC 60529|UL 508ASKU #2354353Part Number #PV5UNSPSC39121326UPC00782051702484
