Part Number # PV6
SKU # 2327641

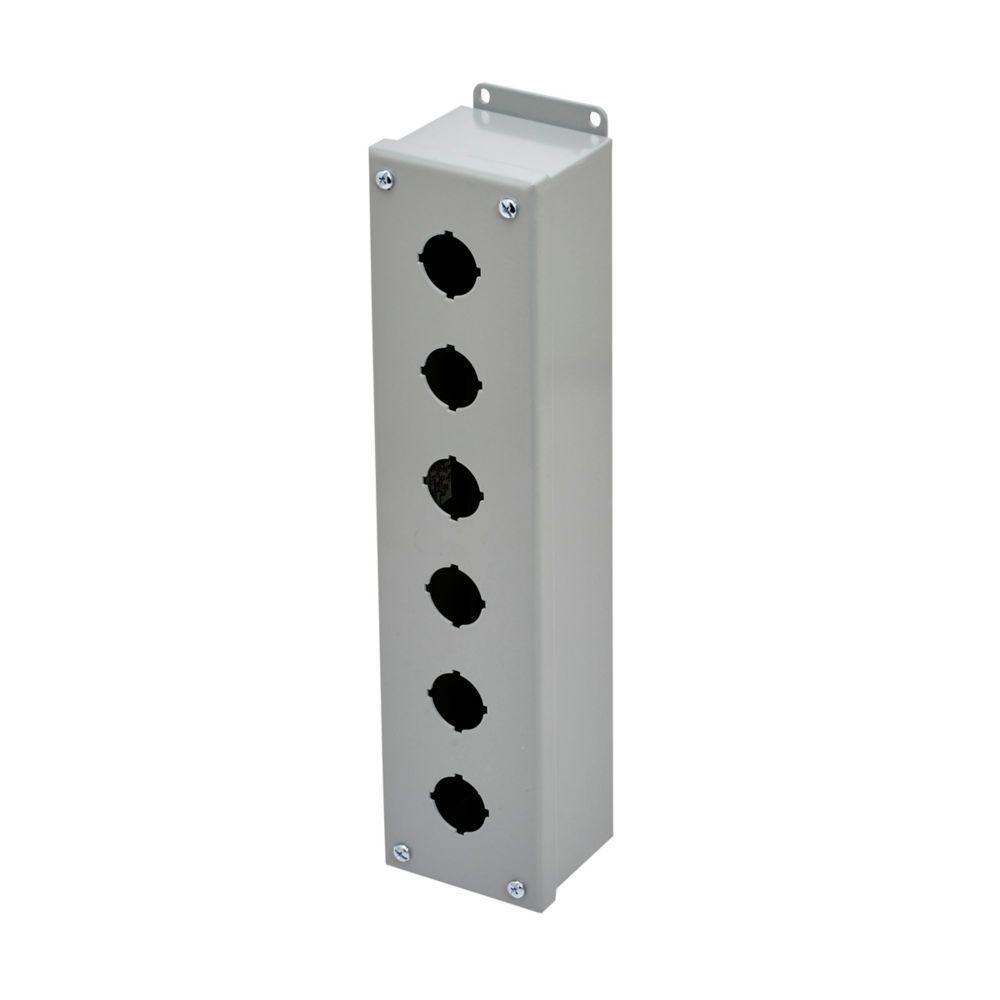

Image provided may only be a representation of
final product and may include optional equipment
PV6
B-Line PV6 Pushbutton Enclosure
Part Number # PV6
SKU # 2327641
B-Line PV6 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | PV6 |
| SKU #: | 2327641 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 4X/12/13/IP65 |
| Series: | PV Series |
| Type: | 6-Hole Oil-Tight Standard Vertical Column |
| Country of origin: | US |
| Depth: | 2-3/4, 2-3/4 in |
| Material: | Steel |
| Mounting type: | Feet/Wall |
| Width: | 3-1/4, 3-1/4 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121326 |
| UPC: | 00782051702507 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line PV6 Pushbutton Enclosure
Brand: B-Line
Part Number: PV6
B-Line Pushbutton Enclosure, 6-Hole Oil-Tight Standard Vertical Column, Series: PV Series, 3-1/4 in Width, 2-3/4 in D, NEMA 4X/12/13/IP65, Screw Cover, Feet/Wall Mount, Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-PV6 (N) PV6 ENCLOSURE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series push button enclosures, 9.50" height, 4.75" length, 6.25" width, NEMA 12, Screw cover, PV enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
PV6 Application
For mounting 30.5 mm standard oil-tight pushbuttons, pilot lights, switches and protects against circulating dust, falling dirt and dipping non-corrosive liquidsPV6 Item Features
- All continuous welded seams are finished smooth
- Cover has concealed, detachable hinges which allow for quick removal and can be hinged on either side
- Cover has a fixed oil resistant gasket
- Weldnut in body of enclosure for grounding
- Cover is pre-punched with standard 30.5 mm or miniature 22.5 mm "4-way" pushbutton holes
- External mounting feet are provided for secure wall mounting
PV6 Standards
UL 508|CSA C22.2 No. 94|IEC 60529SKU #2327641Part Number #PV6UNSPSC39121326UPC00782051702507
