PV6MF
B-Line PV6MF Weatherproof Device/Outlet Box with Cover
Part Number # PV6MF
SKU # 2325606
B-Line PV6MF Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | PV6MF |
| SKU #: | 2325606 |
| Type: | In-Line Vertical |
| Length: | 11.13 in |
| Material: | Molded Fiberglass Reinforced Polyester |
| UNSPSC: | 39121305 |
| UPC: | 00782051537994 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
B-Line PV6MF Weatherproof Device/Outlet Box with Cover
Brand: B-Line
Part Number: PV6MF
B-Line Pushbutton Enclosure, In-Line Vertical, 11.13 in Length, 3.81 in Width, 3.89 in Depth, NEMA 4X, Lock: Screw, Surface Mount, -40 to 250 deg F, Molded Fiberglass Reinforced Polyester, Gray
Additional Description: BLIN-PV6MF (N) PV6MF 22MM, 6 HOLE PUSHBUTTON, 22MM, 6 HOLE NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series pushbutton fiberglass enclosures, PVMF enclosure, 6-hole, 11.13" x 3.81" x 3.89", Screw cover, Medium single door, Unfinished, Gray, Surface mount, Seamless poured in-place gasket, No mounting provisions, In-Line 22mm
PV6MF Application
Industrial Facilities and Factories - Lighting and Lighting Controls, Critical Power, Safety and Security Systems, Manufacturing Process Electrification and Control, Power Distribution and Controls, Automation and Monitoring, Commercial/Institutional Buildings/Structures - Power Distribution and Controls, Utility - Substations, Utility Transmission and DistributionPV6MF Item Features
- Enclosures are an impact resistant, non-conductive, light-weight hot compression molded fiberglass reinforced polyester
- Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
- Recessed captive screws provide smooth surfaces
- Secure mounting of pushbutton in non-rotatable notched key hole
- 300 series stainless steel used on all external hardware
- Rounded edges reduce build-up of dust and debris
- Full metal grounding strap is provided
- 22 mm device hole
PV6MF Standards
CSA C22.2|cUL Listed|UL 50|UL 94 5VSKU #2325606Part Number #PV6MFUNSPSC39121305UPC00782051537994

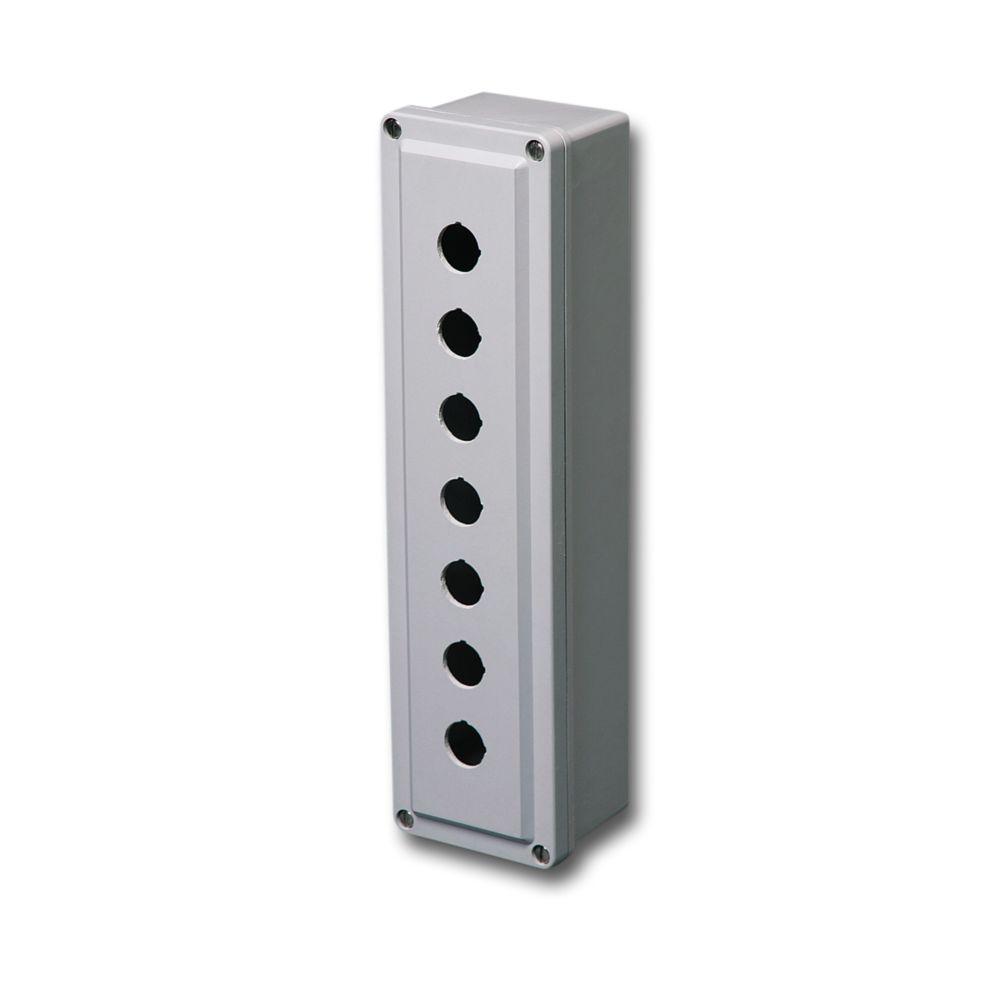

Image provided may only be a representation of final product and may include optional equipment
