Part Number # PVX1
SKU # 2318462
PVX1
B-Line PVX1 Pushbutton Enclosure
Part Number # PVX1
SKU # 2318462
B-Line PVX1 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | PVX1 |
| SKU #: | 2318462 |
| NEMA Rating: | NEMA 4X/12/13/IP65 |
| Type: | Extra Deep Vertical Column |
| Mounting type: | Feet/Wall |
| UNSPSC: | 39121326 |
| UPC: | 00782051701180 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line PVX1 Pushbutton Enclosure
Brand: B-Line
Part Number: PVX1
B-Line Pushbutton Enclosure, Extra Deep, 4 in Length, 4 in Width, 4-3/4 in Depth, NEMA 12, Concealed/Detachable Hinged Cover, Lock: Screw, Wall Mount, 14 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-PVX1 (N) PVX1 ENCLOSURE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series push button enclosures, 4" height, 4.75" length, 4" width, NEMA 12, Screw cover, PVX enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
PVX1 Application
Electrical Assemblies, Panels and EOEMsPVX1 Item Features
- Enclosure and cover are fabricated from 14 ga steel
- Enclosure has extra depth for those components that require more room
- All continuous welded seams are finished smooth
- Cover is attached with captive screws which thread into sealed well nuts
- Cover has concealed, detachable hinges which allow for quick removal and can be hinged on either side
- Cover has a fixed, oil-resistant gasket
- Weldnut in body of enclosure for grounding
- Cover is pre-punched with standard 30.5 mm "4-way" pushbutton holes
- External mounting feet are provided for secure wall mounting
- 30.5 mm device hole
PVX1 Standards
CSA C22.2 #94|IEC 60529|UL 508ASKU #2318462Part Number #PVX1UNSPSC39121326UPC00782051701180

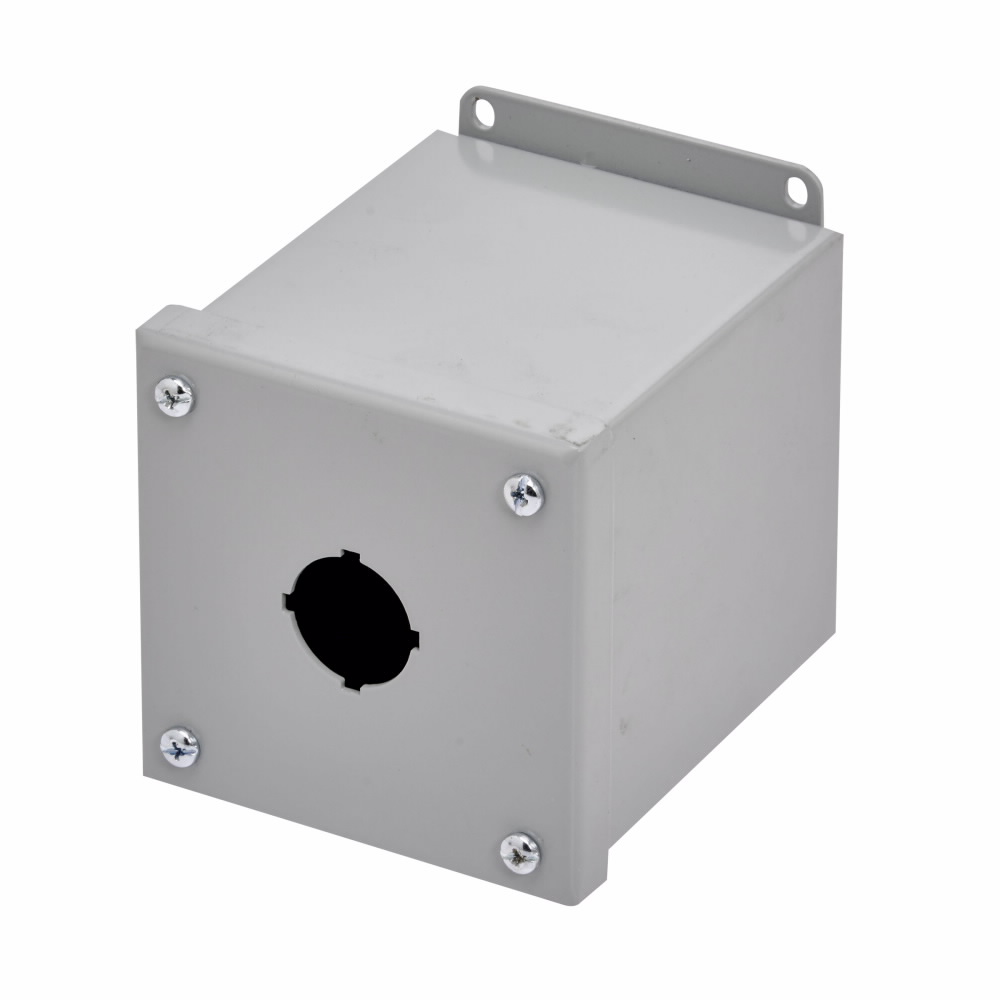

Image provided may only be a representation of final product and may include optional equipment
