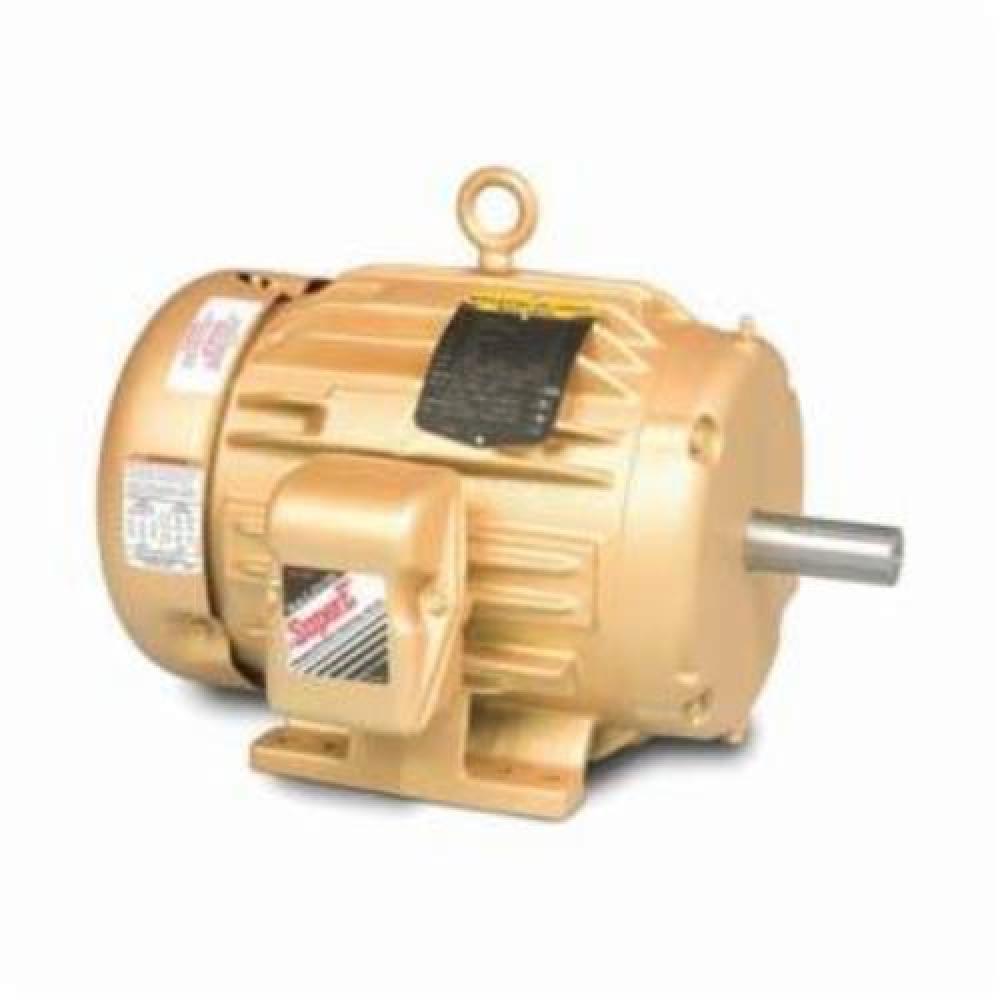

Baldor Electric EM2334T General Purpose Motor Ac

Brand: Baldor Electric

Part Number: EM2334T

Baldor-Reliance Super-E® AC Motor, Continuous Duty, Application Type: Compressor Motor, General Purpose AC Motor, Fan & Blower Motor, Special Features: 0960M Motor, Direct On Line Starting Method, 20 hp, 230/460 VAC, 24/48 A, 60 Hz, 3, 1765 rpm, 1 Speed, TEFC, 256 Frame, 1-5/8 in Dia Shaft, Reversible, Service Factor: 1.1499999999999999, Ball Bearing, 232 lb-ft, F1 Mount, 40 to 76 deg C, Insulation Class: Class F, Iron, 23.28 in L

Additional Description: BALD-EM2334T 20HP,1770RPM,3PH,60HZ,256T,0960M,TE FC,F1

Catalog Description: Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Phase: 3 PH; Voltage Rating: 230/460 VAC; Full Load Current: 48/24 AMP; Service Factor: 1.15; Enclosure: TEFC; Frame: 256T; Horsepower: 20 HP; Speed Rating: 1765 RPM; Frequency Ra
