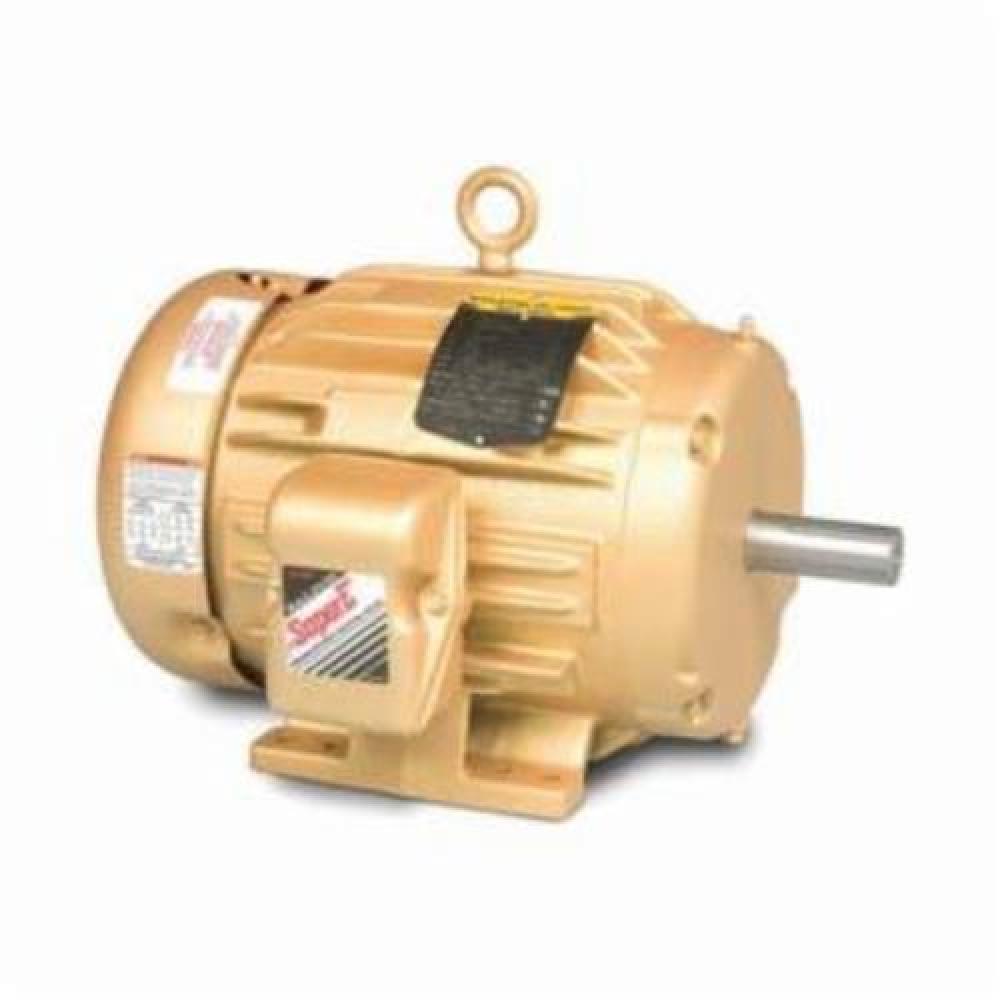

Baldor Electric EM3665T General Purpose Motor Ac

Brand: Baldor Electric

Part Number: EM3665T

Baldor-Reliance Super-E AC Motor, 208/230/460 VAC, 6.6/13.2/14 A, 60 Hz, 5 hp, 3, 1750 rpm, 1 Speed, TEFC, 184 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 53.9 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 15.24 in L x 11.91 in W x 11.23 in H

Additional Description: BALD-EM3665T 42M 4P TEFC HOR 184T SUPER E C,F1 CODE J, 1740 RPM, CONT. DUTY, FRAME 184T, CLASS F INS., SER. FAC. 1.15, NEMA DES B, MAX AMB. 40 DEG. C, MODEL EM3665T 230/460 VOLTS, EM3665T 230/460 VOLTS, 13/6.5 MFG. BALDOR

Catalog Description: Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 208-230/460 VAC; Horsepower: 5 HP; Speed Rating: 1750 RPM; Frequency Rating: 60 HZ; Full Load Current: 14-13.2/6.6 AMP; Torque Rating: 15 LB-FT Full Load, 48.3 LB-FT Break Down, 28.7 LB-FT Pull-Up, 3
