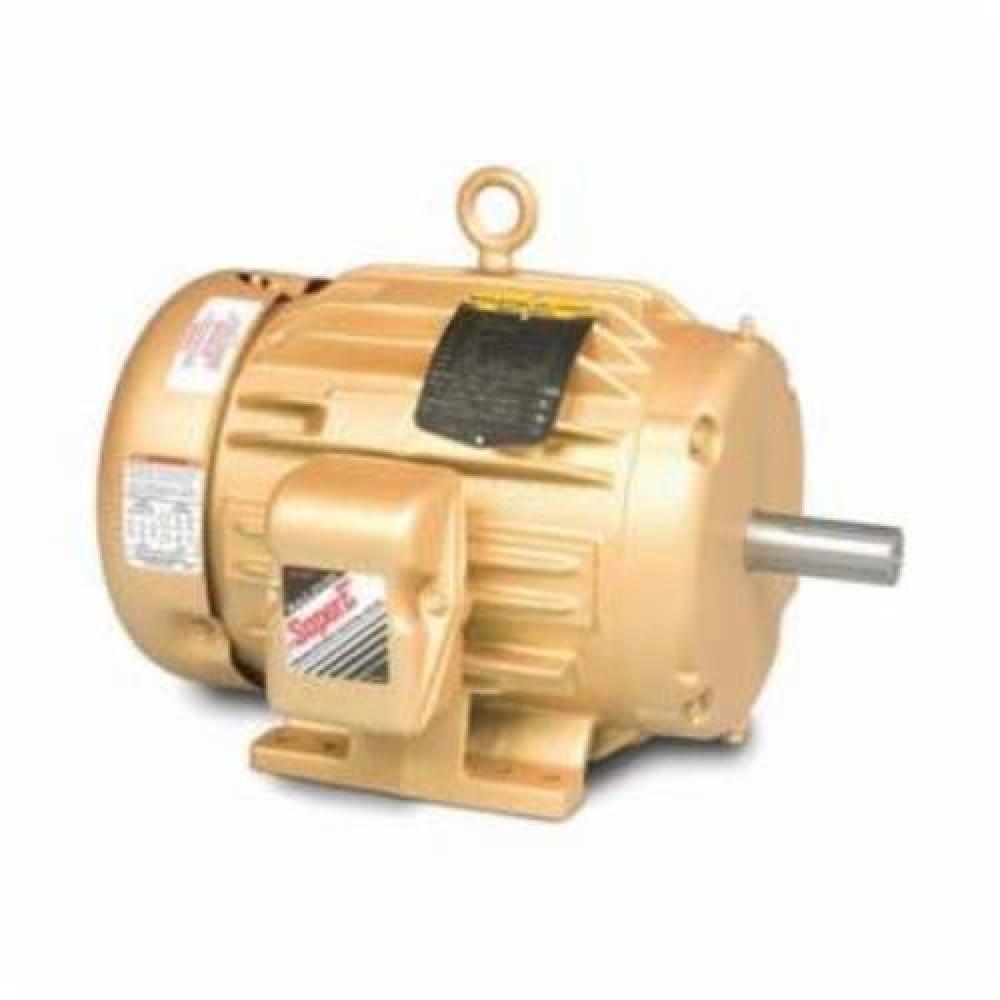

Baldor Electric EM3774T General Purpose Motor Ac

Brand: Baldor Electric

Part Number: EM3774T

Baldor-Reliance Super-E AC Motor, 230/460 VAC, 12.2/24.4 A, 60 Hz, 10 hp, 3, 1760 rpm, 1 Speed, TEFC, 215 Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 80.9 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 18.45 in L x 14.96 in W x 12.99 in H

Additional Description: BALD-EM3774T 10HP,1765RPM,3PH,60HZ,213T,0748M, TEFC,F1

Catalog Description: Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Horsepower: 10 HP; Phase: 3 PH; Voltage Rating: 230/460 VAC; Full Load Current: 24.4/12.2 AMP; Power Factor: 83; Service Factor: 1.15; Enclosure: TEFC; Frame: 215T; Insulation Cla
