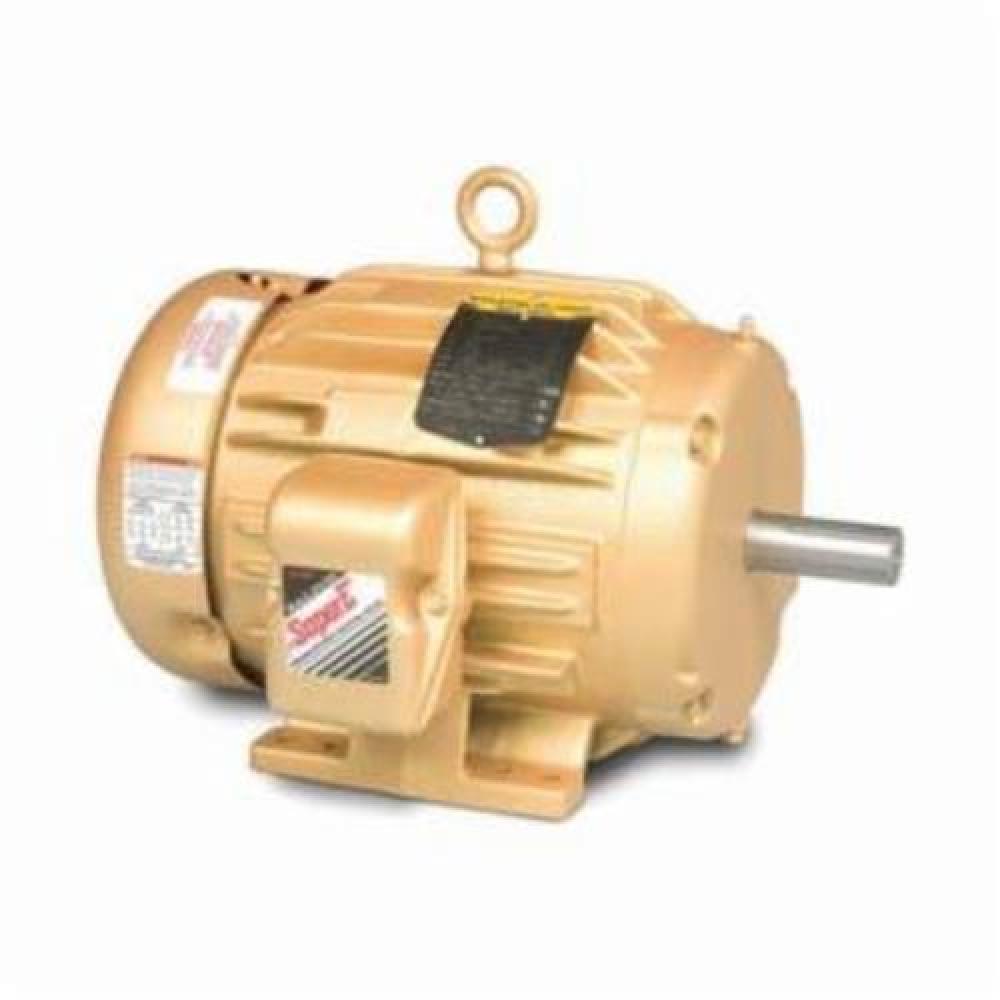

Baldor Electric EM4103T General Purpose Motor Ac

Brand: Baldor Electric

Part Number: EM4103T

Baldor-Reliance Super-E AC Motor, 230/460 VAC, 30/60 A, 60 Hz, 25 hp, 3 Phase, 1770 rpm, 1 Speed, TEFC, 284 Frame, 1-7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 235 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 27.76 in L x 20.5 in W x 17.16 in H

Additional Description: BALD-EM4103T 25HP,1775RPM,3PH,60HZ,284T,1054M,TE FC,F1

Catalog Description: Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Horsepower: 25 HP; Phase: 3 PH; Voltage Rating: 230/460 VAC; Full Load Current: 60/30 AMP; Power Factor: 84; Service Factor: 1.15; Enclosure: TEFC; Frame: 284T; Insulation Class:
