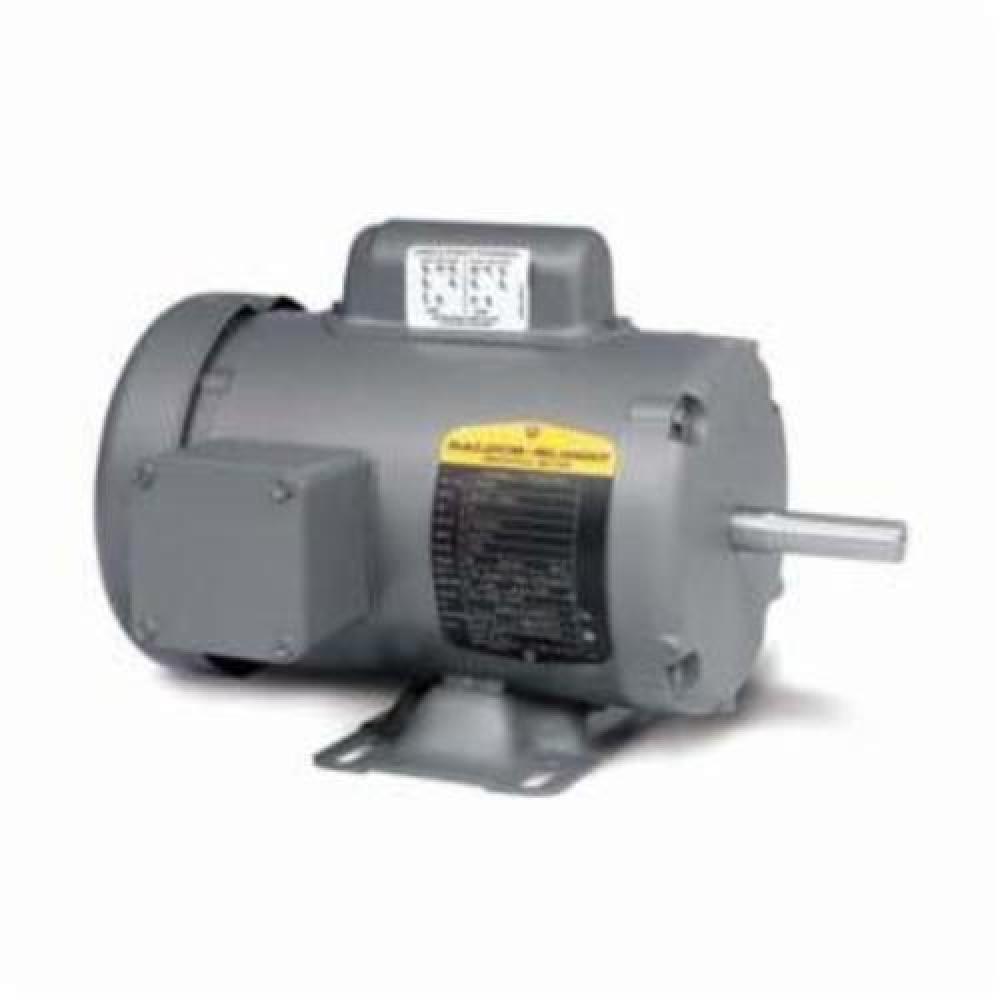

Baldor Electric L3403 General Purpose Motor Ac

Brand: Baldor Electric

Part Number: L3403

Baldor-Reliance AC Motor, 115/230 VAC, 2.5/5 A, 60 Hz, 0.25 hp, 1, 1725 rpm, 1 Speed, TEFC, 48 Frame, 1/2 in Dia Shaft, Reversible, Service Factor: 1.35, Ball Bearing, 2.13 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 10.72 in L x 8.96 in W x 7.4 in H

Additional Description: BALD-L3403 .25HP,1725RPM,1PH,60HZ,48,3411L,TEF C,F1

Catalog Description: Baldor Electric; AC Motor; Phase: 1 PH; Voltage Rating: 115/230 VAC; Horsepower: 0.25 HP; Speed Rating: 1725 RPM; Frequency Rating: 60 HZ; Full Load Current: 5/2.5 AMP; Torque Rating: 0.75 LB-FT Full Load, 2.13 LB-FT Break Down, 1.88 LB-FT Pull-Up, 2.48 L
