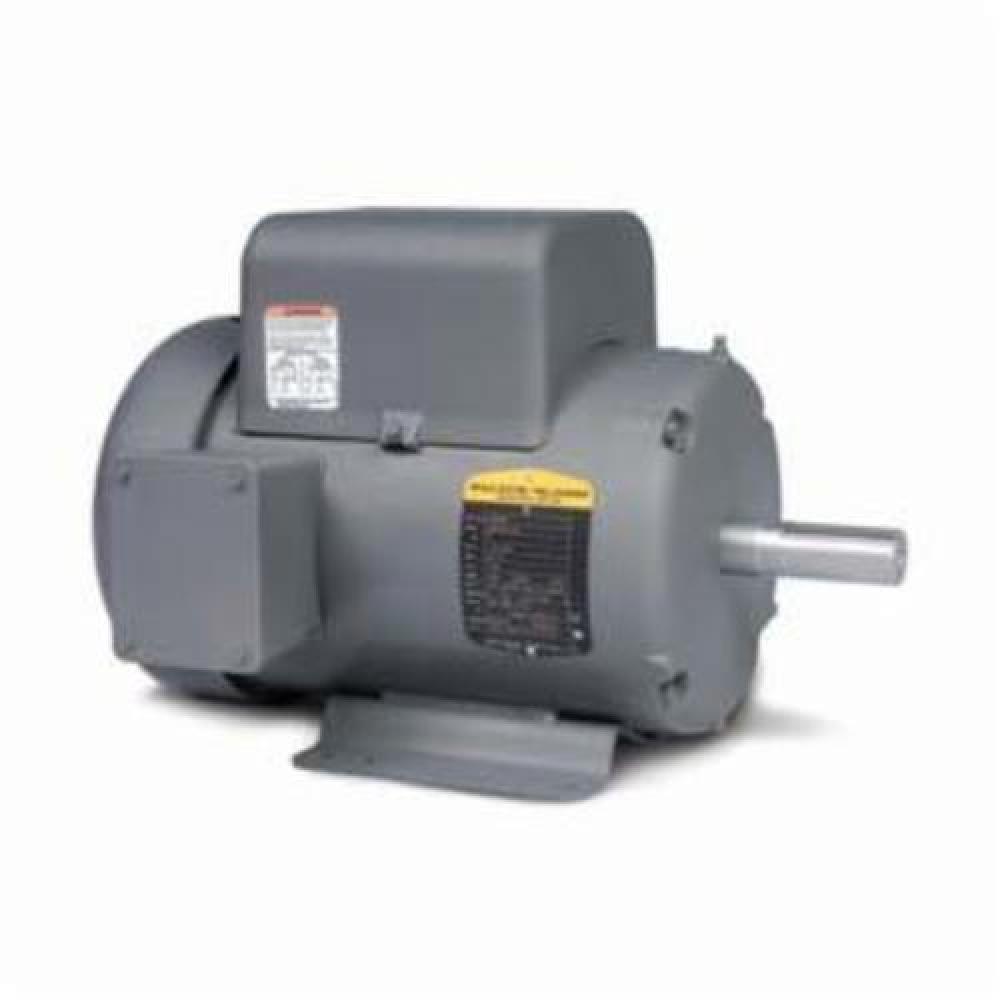

Baldor Electric L3507 General Purpose Motor Ac

Brand: Baldor Electric

Part Number: L3507

Baldor-Reliance AC Motor, 115/230 VAC, 4.2/8.4 A, 60 Hz, 0.75 hp, 1, 1725 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 5.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 12.47 in L x 8.97 in W x 8.65 in H

Additional Description: BALD-L3507 .75HP,1725RPM,1PH,60HZ,56,3428LC,TE FC,F1

Catalog Description: Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Phase: 1 PH; Voltage Rating: 115/230 VAC; Service Factor: 1.25; Enclosure: TEFC; Frame: 56; Insulation Class: B; Horsepower: 0.75 HP; Speed Rating: 1725 RPM; Frequency Rating: 60
