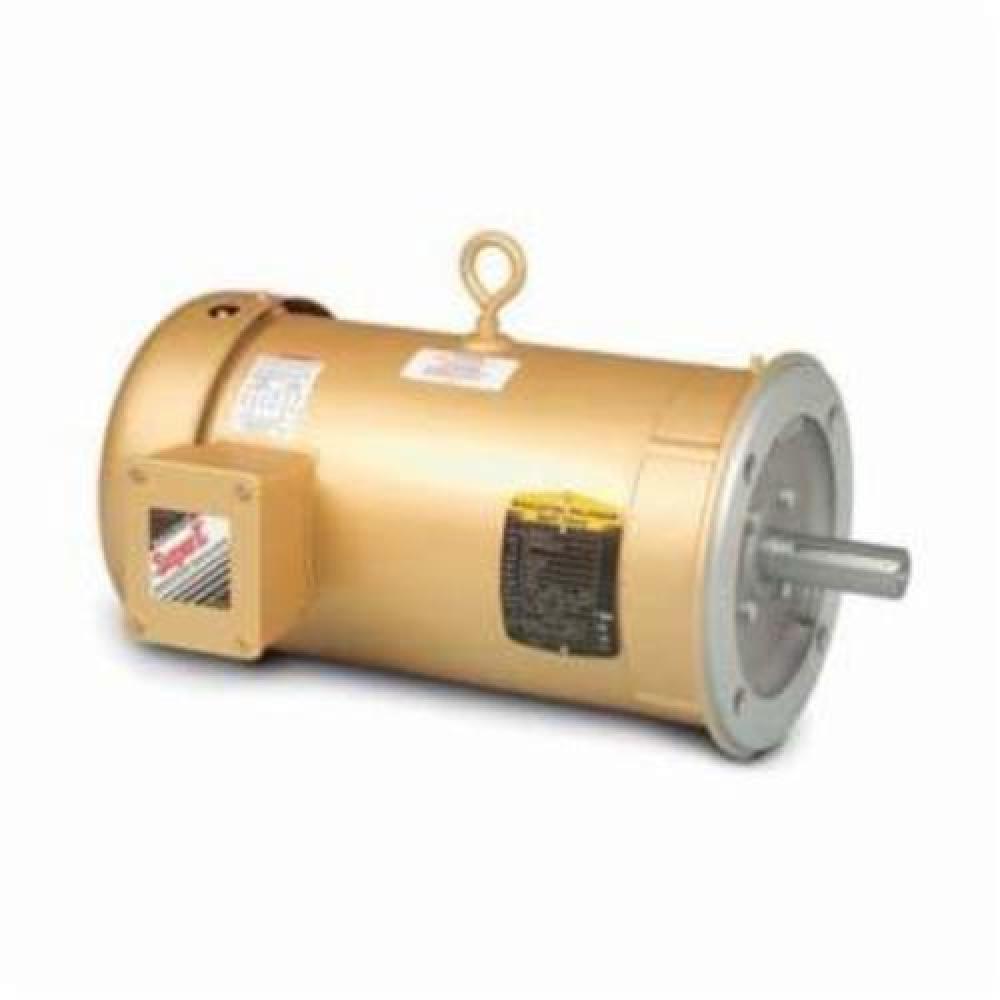

Baldor Electric VEM3542 General Purpose Motor Ac

Brand: Baldor Electric

Part Number: VEM3542

Baldor-Reliance Super-E AC Motor, 230/460 VAC, 1.1/2.3 A, 60 Hz, 0.75 hp, 3 Phase, 1750 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 10.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 12.23 in L x 9.75 in W

Additional Description: BALD-VEM3542 .75HP,1765RPM,3PH,60HZ,56C,3514M,TE FC,F1

Catalog Description: Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 230/460 VAC; Torque Rating: 2.22 LB-FT Full Load, 10.5 LB-FT Break Down, 6.26 LB-FT Pull-Up, 7.48 LB-FT Locked-Roter At 460 V, 60 HZ, 0.75 HP; Insulation Class: F; Horsepower: 0.75 HP; Speed Rating:
