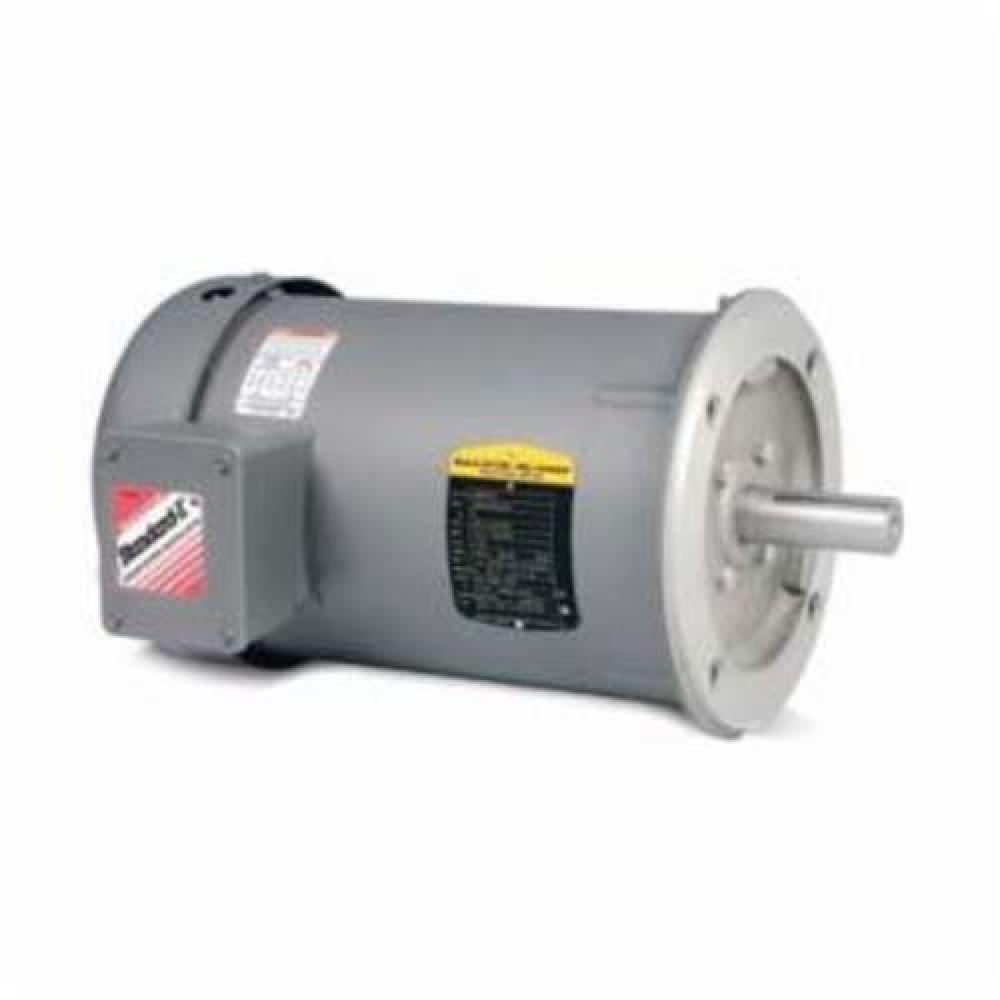

Baldor Electric VM3534 General Purpose Motor Ac

Brand: Baldor Electric

Part Number: VM3534

Baldor-Reliance AC Motor, C-Face Continuous Duty, Application Type: Compressor Motor, General Purpose AC Motor, Fan & Blower Motor, Special Features: 3413M Motor, Direct On Line Starting Method, 0.33 hp, 230/460 VAC, 0.8/1.6 A, 60 Hz, 3, 1725 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.35, Ball Bearing, 4.7 lb-ft, F1 Mount, 40 to 76 deg C, Insulation Class: Class F, Steel, 11.35 in L

Additional Description: BALD-VM3534 .33HP,1730RPM,3PH,60HZ,56C,3413M,TE FC,F1

Catalog Description: Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 230/460 VAC; Torque Rating: 1 LB-FT Full Load, 4.7 LB-FT Break Down, 3.35 LB-FT Pull-Up, 3.75 LB-FT Locked-Roter At 460 V, 60 HZ, 0.33 HP; Horsepower: 0.33 HP; Speed Rating: 1725 RPM; Frequency Ratin
