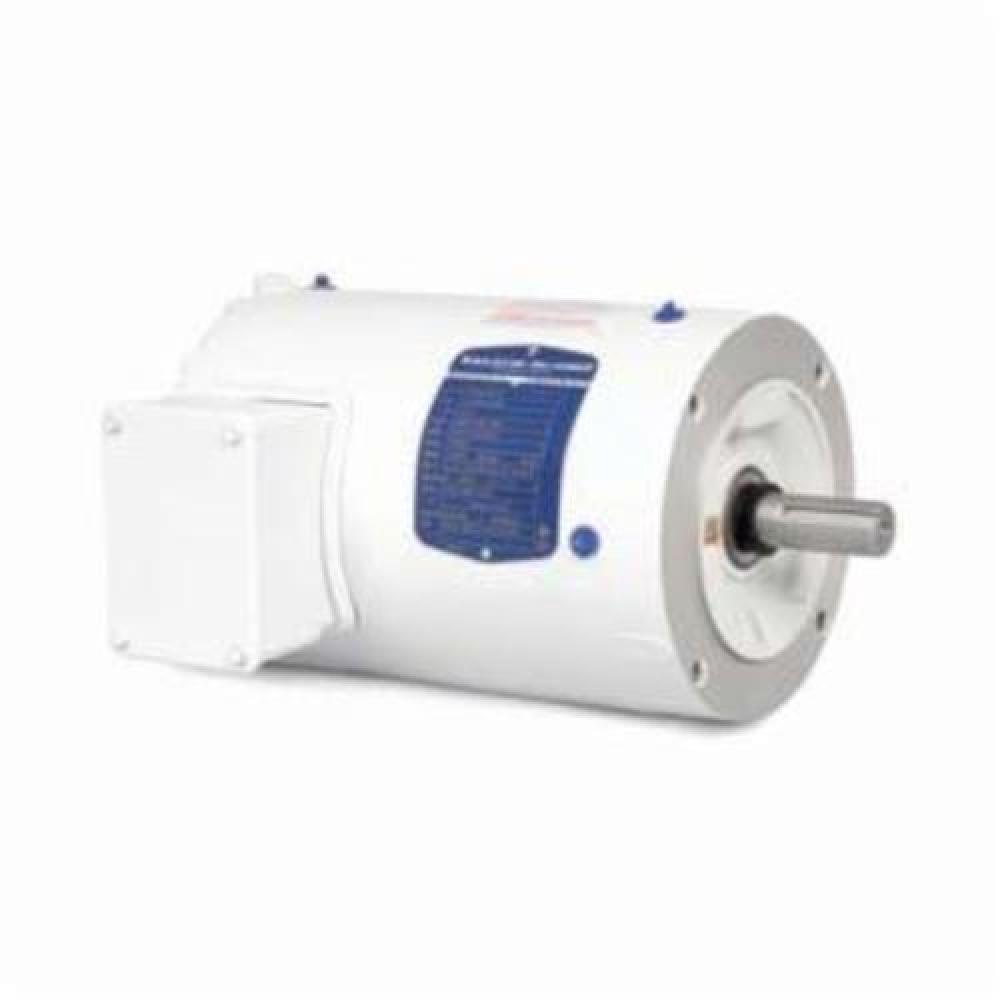

Baldor Electric VWDM3542 General Purpose Motor Ac

Brand: Baldor Electric

Part Number: VWDM3542

Baldor-Reliance AC Motor, 230/460 VAC, 1.2/2.4 A, 60 Hz, 0.75 hp, 3, 1750 rpm, 1 Speed, TENV, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Sealed Bearing, 9.58 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 11.06 in L x 10.26 in W

Additional Description: BALD-VWDM3542 .75HP,1750RPM,3PH,60HZ,56C,3516M,TE NV,F1

Catalog Description: Baldor Electric; Washdown Motor; Phase: 3 PH; Torque Rating: 2.24 LB-FT Full Load, 9.58 LB-FT Break Down, 6.13 LB-FT Pull-Up, 75 LB-FT Locked-Roter At 460 V, 60 HZ, 0.75 HP; Horsepower: 0.75 HP; Speed Rating: 1750 RPM; Voltage Rating: 230/460 VAC; Frequen
