2HT-250-2-WT-S
Brady 2HT-250-2-WT-S Wire Marker Sleeve
Part Number # 2HT-250-2-WT-S
SKU # 2317392
Brady 2HT-250-2-WT-S Key Features
| Brand: | Brady |
|---|---|
| Part Number # : | 2HT-250-2-WT-S |
| SKU #: | 2317392 |
| UNSPSC: | 55121612 |
| UPC: | 00662820922193 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Brady 2HT-250-2-WT-S Wire Marker Sleeve
Brand: Brady
Part Number: 2HT-250-2-WT-S

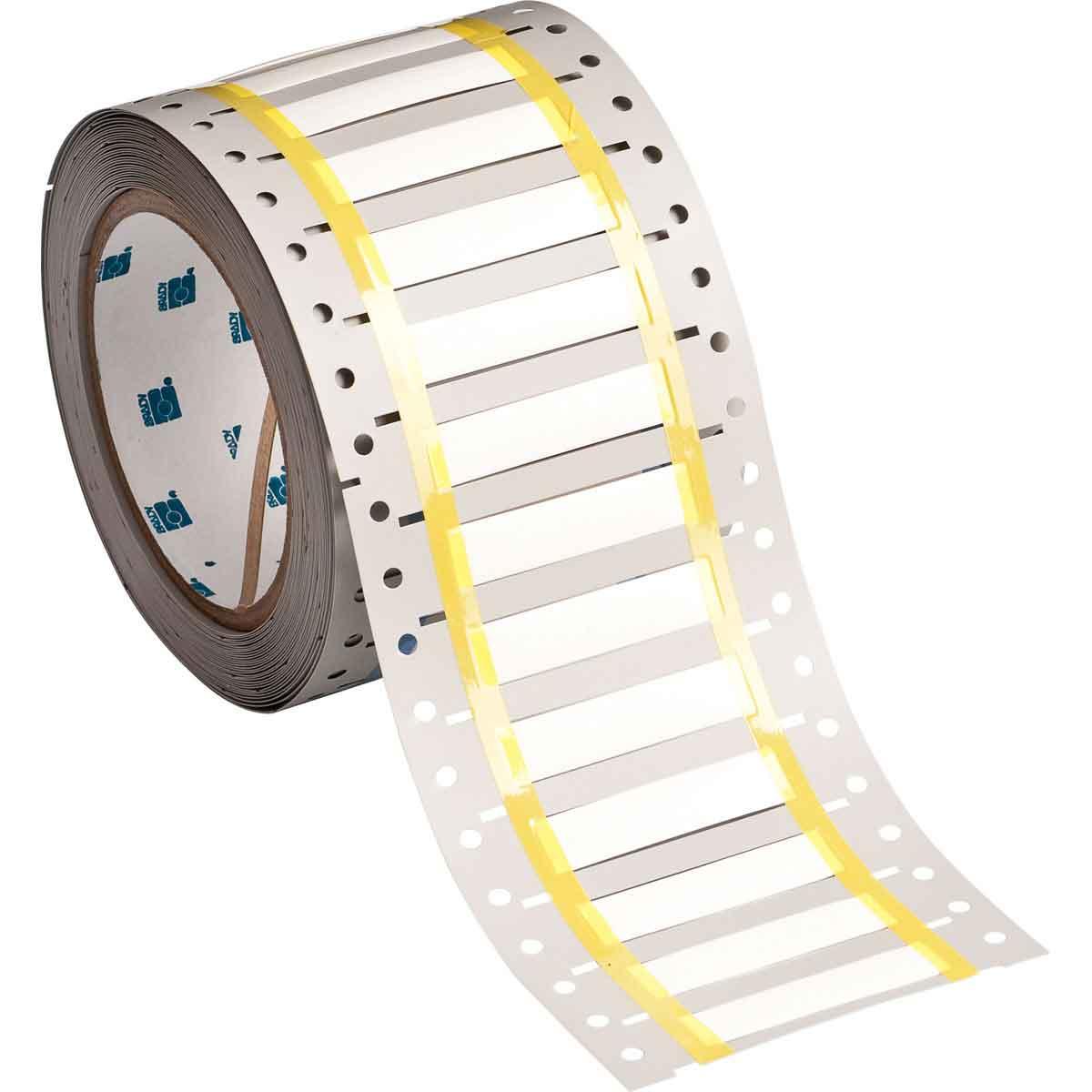

Brady PermaSleeve Wire Marker Sleeve, 2-Sided Printable Heat Shrink, 2 in Width, 12 to 8 AWG Wire, White, B-345 Polyolefin, -94 to 267 deg F, For Use With: IP Series and BradyPrinter PR Plus Label Printer
Additional Description: BRAD-2HT-250-2-WT-S (O) SLEEVE, 0.25 IN DIA X 2 IN W 24 ROLL OF 500 EACH W X 11.150 MM H) Y1155494
Catalog Description: PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications. 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A. Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents. Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized. The operating temperature range is 55°C (67°F) to +225°C (437°F). This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
2HT-250-2-WT-S Application
Insulation Purposes, Cable and Wire Marking Applications2HT-250-2-WT-S Item Features
- These sleeves are suitable for many high temperature and/or low out gassing applications
- Thermal transfer print technology
- Irradiated polyvinylidene fluoride heat shrink tubing
- Matte finish
- Recommended for Brady R6000 and R6600 black ribbon Series
- 19.1 mm vertical repeat
- 1/4 in Dia sleeve as supplied
- The sleeves can also be used in applications that require greater-resistant to harsh chemicals such as fuels, lubricants and high power cleaning solvents
- 0.439 in H
- 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant
- The operating temperature range is 55 deg C ( 67 deg F) to +225 deg C (437 deg F)
2HT-250-2-WT-S Standards
ASTM D2671|ASTM E162|ASTM E662|ASTM G155|MIL-STD-202G|NASA SP-R-0022A|SAE-AMS-DTL-23053|SAE-AS-81531SKU #2317392Part Number #2HT-250-2-WT-SUNSPSC55121612UPC00662820922193
Image provided may only be a representation of final product and may include optional equipment
