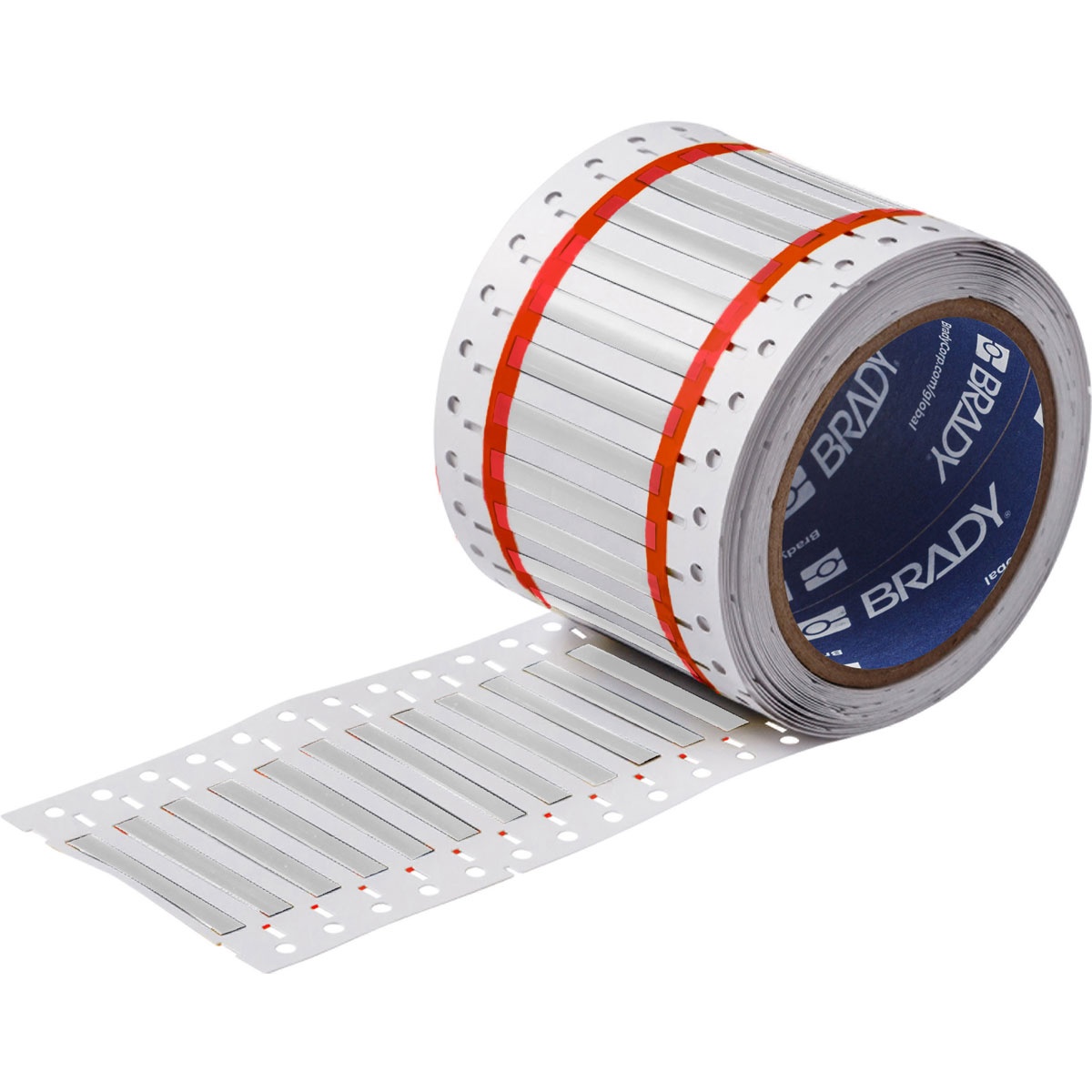

Brady 2HX-187-2-WT-2 Wire Marker Sleeve
Part Number # 2HX-187-2-WT-2
SKU # 2292674
$2141.10 / Roll
Brady 2HX-187-2-WT-2 Key Features
Brand: Brady
Part Number # 2HX-187-2-WT-2
SKU #2292674
Marker Color: White
Suitable For Use With: BradyPrinter PR Plus Label Printer, BradyPrinter™ PR Plus Label Printer
Temperature Rating (Degrees F): -40 to 248, -40 to 248 deg F
Type: 2-Sided Printable Heat Shrink
Wire Size: 16 to 10, 16 to 10 AWG
Color: White
Country of origin: US
Material: B-7642 Polyolefin
Width: 1, 1 in
Manufacturer Name: Brady Worldwide
UNSPSC: 55121612
UPC: 00662820818540
$2141.10 / Roll
Brady 2HX-187-2-WT-2 Wire Marker Sleeve
Brady PermaSleeve Wire Marker Sleeve, 2-Sided Printable Heat Shrink, 1 in Width, 16 to 10 AWG Wire, White, B-7642 Polyolefin, -40 to 248 deg F, For Use With: BradyPrinter PR Plus Label Printer
Additional Description: BRAD-2HX-187-2-WT-2 (N) SLEEVE, 0.187 IN DIA X 1 IN W 7126 ROLL OF 5000 EACH W X 8.400 MM H) NON-CANCELABLE, NON-RETURNABLE
Catalog Description: PermaSleeve HX Heat Shrink Double Sided Wire Marking Sleeves, White, 0.187" Dia x 1" W, Roll of 5000 Each
2HX-187-2-WT-2 Application
Insulation Purposes, Cable and Wire Marking Applications2HX-187-2-WT-2 Item Features
- PermaSleeve HX heat shrinkable wire marking sleeves are high temperature-rated, highly flame-retardant and very flexible
- Thermal transfer print technology
- Heatex markers are supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Matte finish
- Recommended for Brady R4300, R6000, R6400 and R6600 ribbon Series
- 15.88 mm vertical repeat
- 0.187 in Dia sleeve as supplied
- 0.335 in H
- Operating temperature of -40 deg F to 248 deg F (-40 deg C to 120 deg C)
2HX-187-2-WT-2 Standards
ASTM D570|ASTM D638|ASTM D792|ASTM D876|ASTM D882|ASTM G21|Halogen-Free (DIN VDE 0472 Part 815)|MIL-STD-202|SAE-AMS-DTL-23053|SAE-AMS-STD-104 Class 1|SAE-AS-81531|UL Listed|VW-1|PROP65: Cancer - www.P65warnings.ca.govSKU #2292674Part Number #2HX-187-2-WT-2UNSPSC55121612UPC00662820818540
