Part Number # 3PS-094-2-WT-SC-2
SKU # 2355636
Image Disclaimers Message
Brand: Brady
3PS-094-2-WT-SC-2

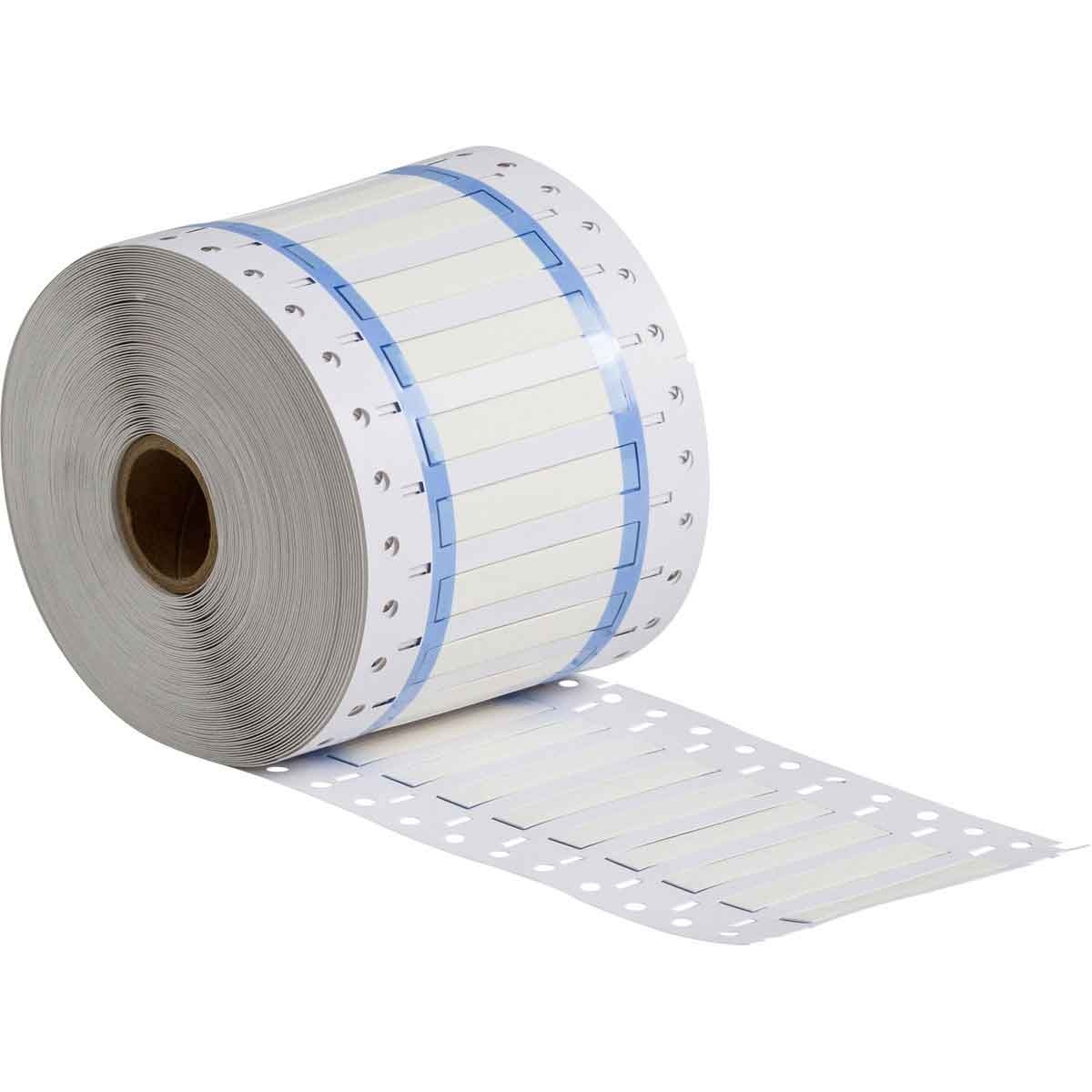

Brady 3PS-094-2-WT-SC-2 Wire Marker Sleeve
Part Number # 3PS-094-2-WT-SC-2
SKU # 2355636
$545.39 / Roll
Typical price:$605.99 / Roll
Brady 3PS-094-2-WT-SC-2 Key Features
| Brand: | Brady |
|---|---|
| Part Number # : | 3PS-094-2-WT-SC-2 |
| SKU #: | 2355636 |
| Series: | IP Series, IP® PermaSleeve®, IP® Series |
| Temperature Rating (Degrees F): | -67 to 275, -94 to 267 deg F |
| Type: | 2-Sided, 2-Sided Heat Shrink |
| Wire Size: | 0.023 to 0.08, 28 to 20 AWG |
| Color: | White |
| Country of origin: | US |
| Length: | 1, 1 in |
| Material: | B-342 Polyolefin, Polyolefin |
| Width: | 0.182, 1 in |
| Manufacturer Name: | Brady Worldwide |
| UNSPSC: | 39131502 |
| UPC: | 00662820575368 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$545.39 / Roll
Typical price:$605.99 / Roll
Quantity:
- Brady PermaSleeve Wire Marker Sleeve, 2-Sided Heat Shrink, Series: IP Series, 1 in Length, 1 in Width, 28 to 20 AWG Wire, White, B-342 Polyolefin, -94 to 267 deg F
3PS-094-2-WT-SC-2 Application
Panel ID, Cable and Wire Marking Applications3PS-094-2-WT-SC-2 Item Features
- Heat shrinkable, with 3:1 shrink ratio, self-extinguishing, made of B-342 polyolefin material
- Chemical, corrosion, fade, humidity, smear, smudge, UV, weather-resistant, full circle insulating sleeves
- Thermal transfer print technology
- LabelMark labeling software, CodeSoft 9 labeling software compatible
- Recommended for R4300, R6600, R6700 (with black sleeves) ribbon Series
- Matte finish
- Brady PermaSleeve heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification
- 3/32 in Dia sleeve as supplied
- 0.182 in H
- Cold resistant and flame-retardant with an operating temperature of -67 deg F to 275 deg F (-55 deg C to 135 deg C)
- Fade-resistant and smudge-proof for superior aesthetic appearance
3PS-094-2-WT-SC-2 Standards
ASTM D2671/E162/E662/G155|MIL-STD-202|SAE-AMS-DTL-23053|SAE-AS-81531|UL Listed|PROP65: Cancer - www.P65warnings.ca.govSKU #2355636Part Number #3PS-094-2-WT-SC-2UNSPSC39131502UPC00662820575368
