15.5CAVH1E

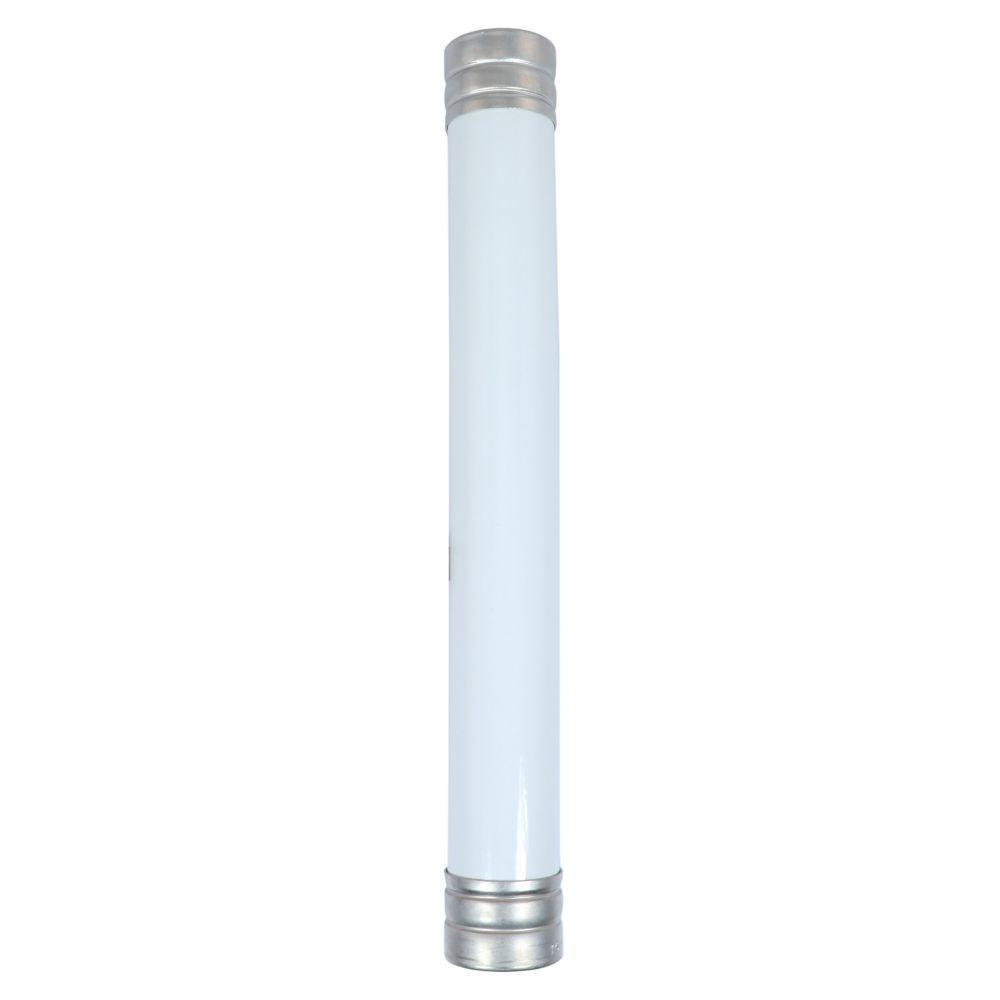

Bussmann 15.5CAVH1E Medium Voltage Fuse
Part Number # 15.5CAVH1E
SKU # 2300290
Bussmann 15.5CAVH1E Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 15.5CAVH1E |
| SKU #: | 2300290 |
| Class: | E |
| Interrupt Rating: | 80 kA |
| Series: | CAV |
| Terminal Type: | Ferrule |
| Type: | 1-Barrel Current Limiting Medium Voltage |
| Country of origin: | IN |
| Mounting type: | Bolt-On |
| UNSPSC: | 39121626 |
| UPC: | 00051712831161 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 15.5CAVH1E Medium Voltage Fuse
Brand: Bussmann
Part Number: 15.5CAVH1E
Bussmann Fuse Link, 1-Barrel Current Limiting Medium Voltage, Series: CAV, Non-Indicating, 1 A, 15.5 kV, 80 kA Interrupt, Class: E, Ferrule Terminal, Bolt-On Mounting, 41.3 mm Dia x 327 mm L Body
Additional Description: BUSS-15.5CAVH1E 15.5KV 1A 12" FUSE
Catalog Description: Eaton Bussmann series medium auxiliary fuse, VT fuse-link, medium voltage, 1 A, AC 15.5 kV, 327 x 41.3 mm, back-up, IEC, US, 1E, with striker, Protect of auxiliary trans, 1 A, 1E, 80K A Breaking Cap, Inst Air, E, IEC, AC, Class back-up
15.5CAVH1E Application
For primary protection of medium voltage potential transformers and small medium voltage service/control transformers applications15.5CAVH1E Item Features
- Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
- Silver elements ensuring high conductivity and low power (revenue) loss
- 100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained
- Sized for retrofitting in existing hardware
- Space saving size
- https://www.youtube.com/watch?v=YMvqUyoETXk
15.5CAVH1E Standards
IEC 60282-1SKU #2300290Part Number #15.5CAVH1EUNSPSC39121626UPC00051712831161
