Part Number # 15149-3
SKU # 2268624
Image Disclaimers Message
Brand: Bussmann
15149-3

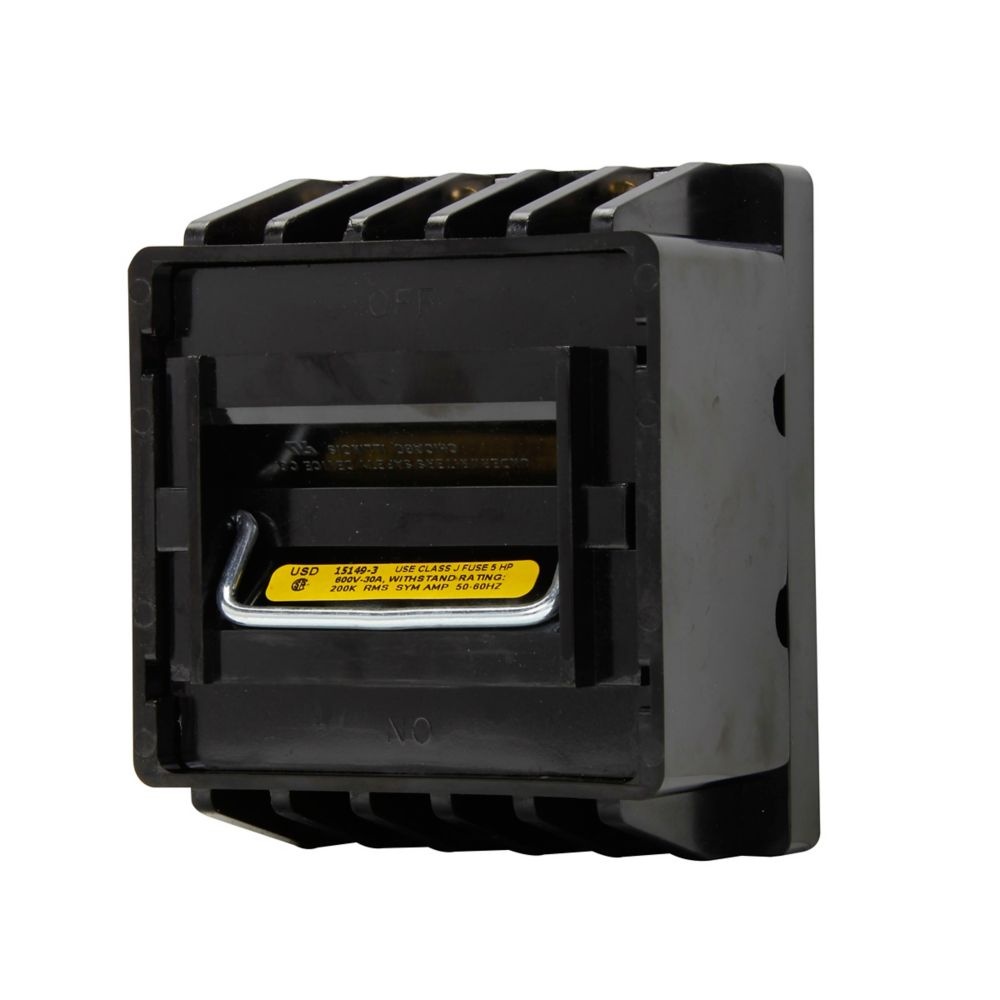

Bussmann 15149-3 Disconnect Fuse Switch
Part Number # 15149-3
SKU # 2268624
$6891.48 / 18Each
Typical price:$10130.40 / Each
Bussmann 15149-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 15149-3 |
| SKU #: | 2268624 |
| Amperage Rating: | 0 to 30, 0 to 30 A |
| Class: | J |
| Dimensions: | 5-1/2 in L x 4-1/2 in W x 3-1/2 in H |
| Horsepower: | 5 |
| Number of Poles: | 3 |
| Series: | 15149 Series |
| Short Circuit Current Rating (kA): | 200 |
| Specifications: | 0 to 30 A, 600 VAC, 200 kA SCCR, 5 hp, 3-Pole |
| Type: | Dead Front, Dead Front Fusible Pullout, Enclosed Dead Front Fused |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712735988 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6891.48 / 18Each
Typical price:$10130.40 / Each
Quantity:
- Bussmann Pullout Disconnect Switch, Enclosed Dead Front Fused, Series: 15149 Series, 600 V, 0 to 30 A, 3 Pole, Class: J, 5-1/2 in L x 4-1/2 in W x 3-1/2 in H
15149-3 Application
Electrical Assemblies, Panels and EOEMs Applications15149-3 Item Features
- Fuse holders in the pull out head eliminate possibility of electric shock while changing fuse
- Accepts class J fuses
- 200 kAIC rms symmetrical short circuit rating
- 2.2 kV dielectric SCCR
- 5 hp power rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
15149-3 Standards
CE Certified|CSA Certified|cUL Listed|UL 98/1429SKU #2268624Part Number #15149-3UNSPSC39121624UPC00051712735988
