16000-2

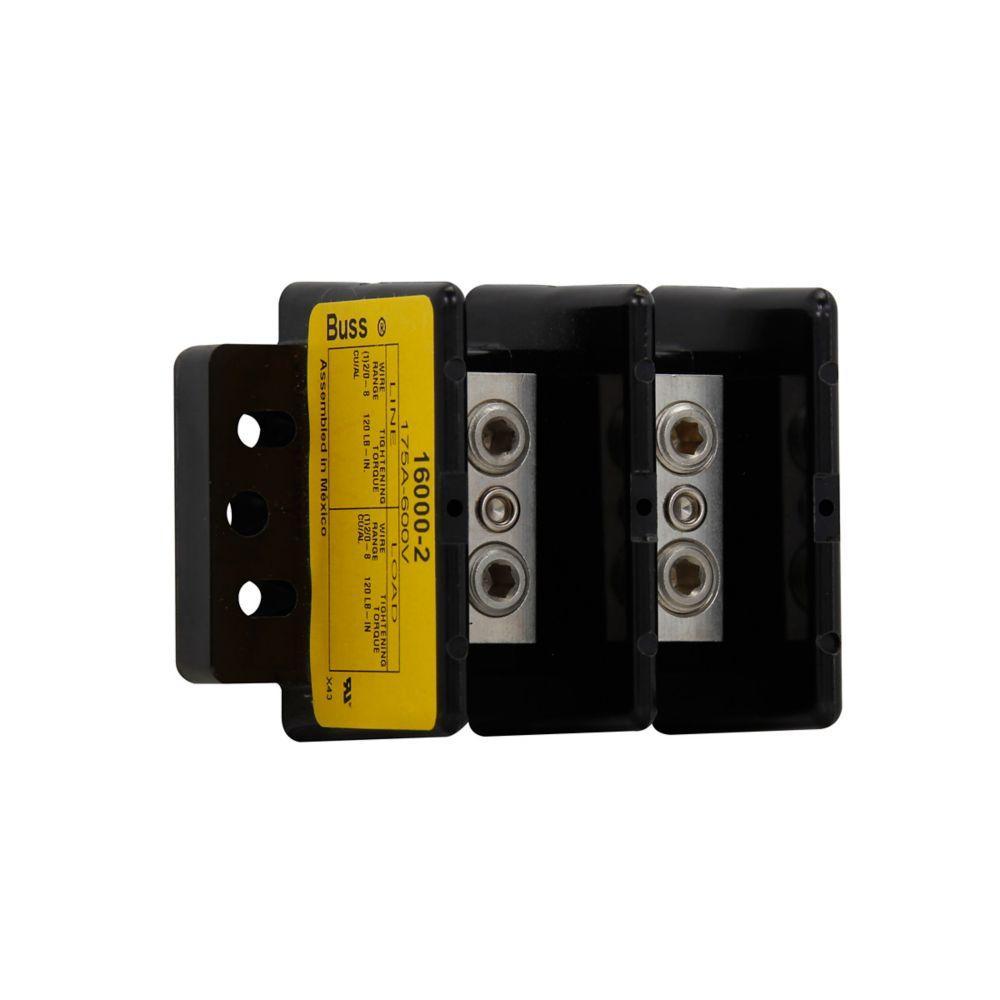

Bussmann 16000-2 Power Terminal Block
Part Number # 16000-2
SKU # 2341845
$101.34 / Each
Typical price:$148.97 / Each
Bussmann 16000-2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16000-2 |
| SKU #: | 2341845 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 4.12 in L x 2.8 in W x 2.12 in H |
| Finish: | Tin Plated |
| Number of Poles: | 2 |
| Series: | 160 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | 0, Splicer |
| Wire Size: | 8 to 2/0, 8 to 2/0 AWG Cu/Al Line/Load |
| Color: | Black |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712734813 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$101.34 / Each
Typical price:$148.97 / Each
Quantity:
- Bussmann Power Splicer Block, Series: 160, 600 V AC/DC, 175 A, 2 Pole, (1) Screw Primary Connections/Pole, (1) Screw Secondary Connection/Pole, 8 to 2/0 AWG Cu/Al Line/Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 4.12 in L x 2.8 in W x 2.12 in H
16000-2 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16000-2 Item Features
- Rated for dual wire port application to increase the possible number of line side and load side connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- https://www.youtube.com/watch?v=YMvqUyoETXk
16000-2 Standards
CE Certified|CSA 53787 Guide XCFR2|RoHS Compliant|UL 1059 File No. E221592SKU #2341845Part Number #16000-2UNSPSC39121629UPC00051712734813
