Part Number # 16000-4
SKU # 2152787
Image Disclaimers Message
16000-4

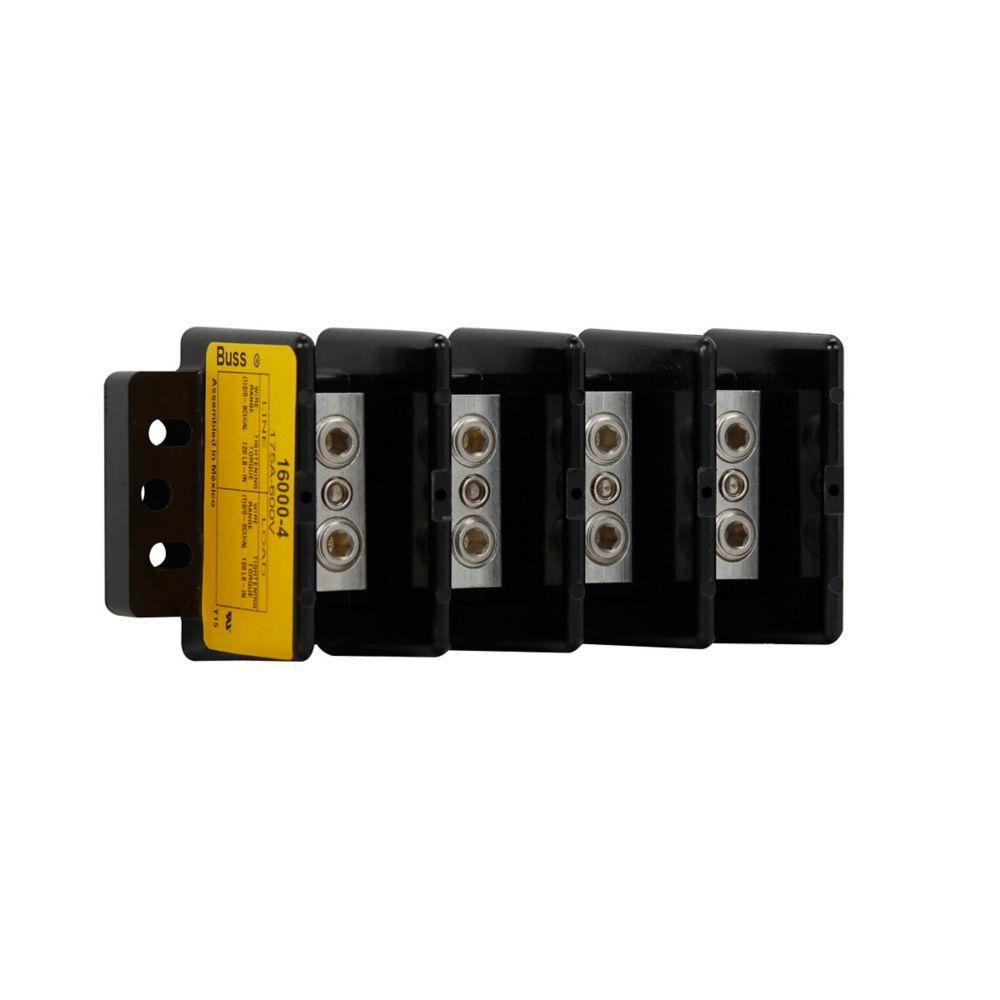

Bussmann 16000-4 Power Distribution Block
Part Number # 16000-4
SKU # 2152787
$163.37 / Each
Typical price:$240.16 / Each
Bussmann 16000-4 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16000-4 |
| SKU #: | 2152787 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 6.62 in L x 2.8 in W x 2.12 in H |
| Finish: | Tin Plated |
| Number of Poles: | 4 |
| Series: | 160, 16000 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | 0, Splicer |
| Wire Size: | 8 to 2/0, 8 to 2/0 AWG |
| Color: | Black |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712207652 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$163.37 / Each
Typical price:$240.16 / Each
Quantity:
- Bussmann Power Splicer Block, Series: 16000, 600 V AC/DC, 175 A, 4 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 8 to 2/0 AWG Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 6.62 in L x 2.8 in W x 2.12 in H
16000-4 Specifications
- Rated for dual wire port application to increase the possible number of lineside and loadside connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- 8 to 2/0 AWG copper/aluminum line/load wire
- (1) screw primary, (1) screw secondary
16000-4 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16000-4 Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
16000-4 Standards
Contact Manufacturer,RoHS Compliant,Contact factorySKU #2152787Part Number #16000-4UNSPSC39121629UPC00051712207652
