16021-4

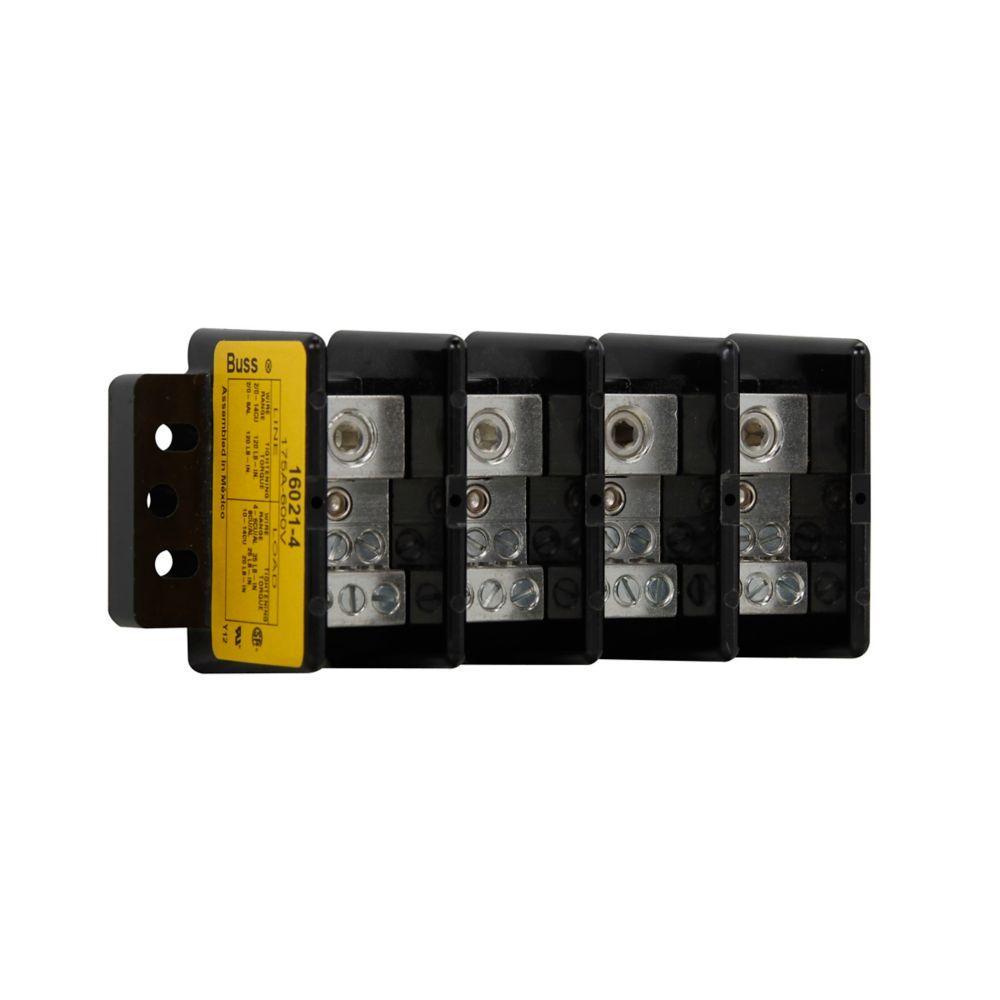

Bussmann 16021-4 Power Distribution Block
Part Number # 16021-4
SKU # 2384645
$341.60 / Each
Typical price:$502.15 / Each
Bussmann 16021-4 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16021-4 |
| SKU #: | 2384645 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 6.62 in L x 2.8 in W x 2.12 in H |
| Number of Poles: | 4 |
| Series: | 160 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Standard |
| Wire Size: | 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, 14 to 4 AWG Cu, 8 to 4 AWG Al Load |
| Color: | Black |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712148504 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$341.60 / Each
Typical price:$502.15 / Each
Quantity:
- Bussmann Power Distribution Block, Standard, Series: 160, 600 V AC/DC, 175 A, 4 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 6.62 in L x 2.8 in W x 2.12 in H
16021-4 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16021-4 Item Features
- 14 to 2/0 AWG copper, 8 to 2/0 AWG aluminum line, 14 to 4 AWG copper, 8 to 4 AWG aluminum load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16021-4 Standards
CE Certified|CSA File No. 53787|RoHS Compliant|UL 1059/508A File No. E221592 Guide XCFR2|UL 94 V-0 Flammability RatingSKU #2384645Part Number #16021-4UNSPSC39121629UPC00051712148504
