Brand: Bussmann
16023-3

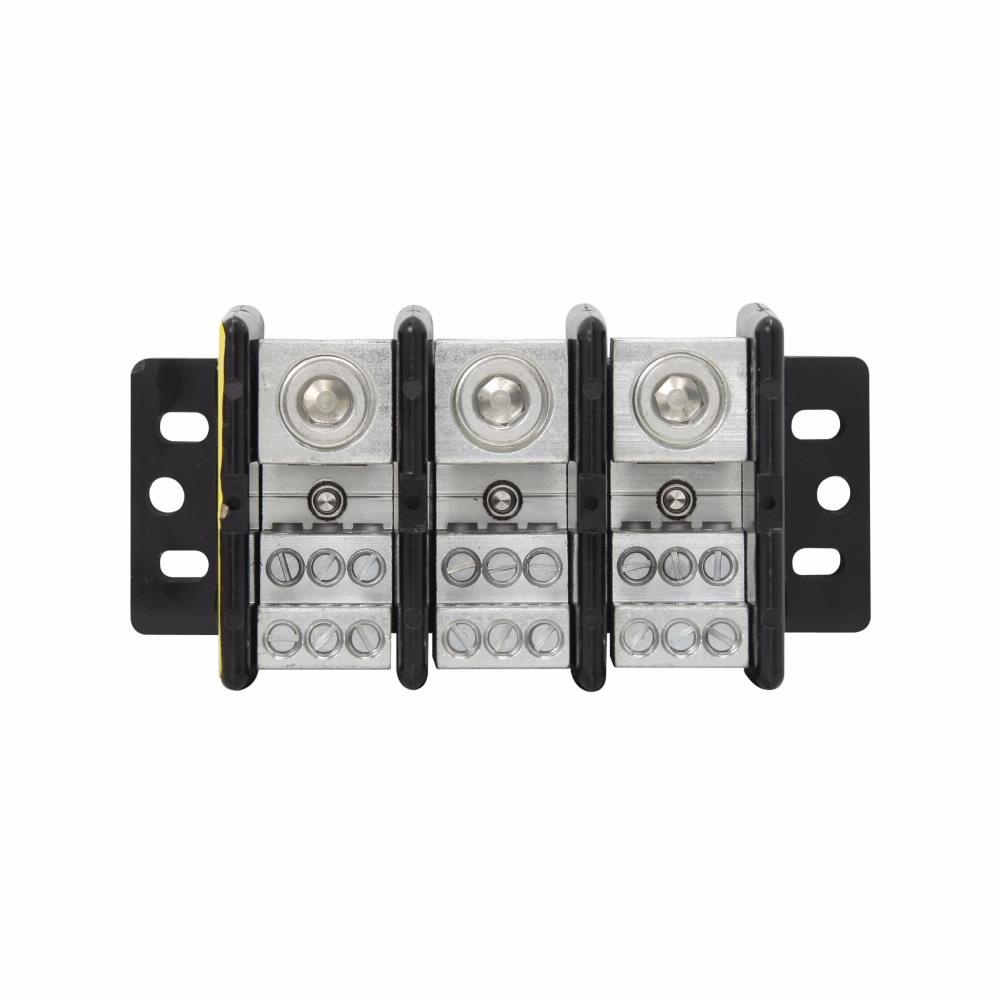

Bussmann 16023-3 Power Terminal Block
Part Number # 16023-3
SKU # 7265
$246.66 / Each
Typical price:$362.59 / Each
Bussmann 16023-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16023-3 |
| SKU #: | 7265 |
| Amperage Rating: | 310, 310 A |
| Dimensions: | 5.37 in L x 2.8 in W x 2.12 in H |
| Finish: | Tin Plated |
| Number of Poles: | 3 |
| Series: | 160 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier Standard |
| Wire Size: | 6 AWG to 350 kcmil, 6 AWG to 350 kcmil Al Line, (6) 1 4 to 4 AWG Cu, 12 to 4 AWG Al Load |
| Color: | Black |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712734844 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$246.66 / Each
Typical price:$362.59 / Each
Quantity:
- Bussmann Magnum Power Distribution Block, Barrier Standard, Series: 160, 600 V AC/DC, 310 A, 3 Pole, (1) Screw Primary Connections/Pole, (6) Screw Secondary Connection/Pole, 6 AWG to 350 kcmil Al Line, (6) 1 4 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 5.37 in L x 2.8 in W x 2.12 in H
16023-3 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16023-3 Item Features
- Rated for dual wire port application to increase the possible number of line side and load side connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- https://www.youtube.com/watch?v=YMvqUyoETXk
16023-3 Standards
CE Certified|CSA 53787 Guide XCFR2|RoHS Compliant|UL 1059 File No. E221592|UL 94 V-0 Flammability RatingSKU #7265Part Number #16023-3UNSPSC39121629UPC00051712734844
