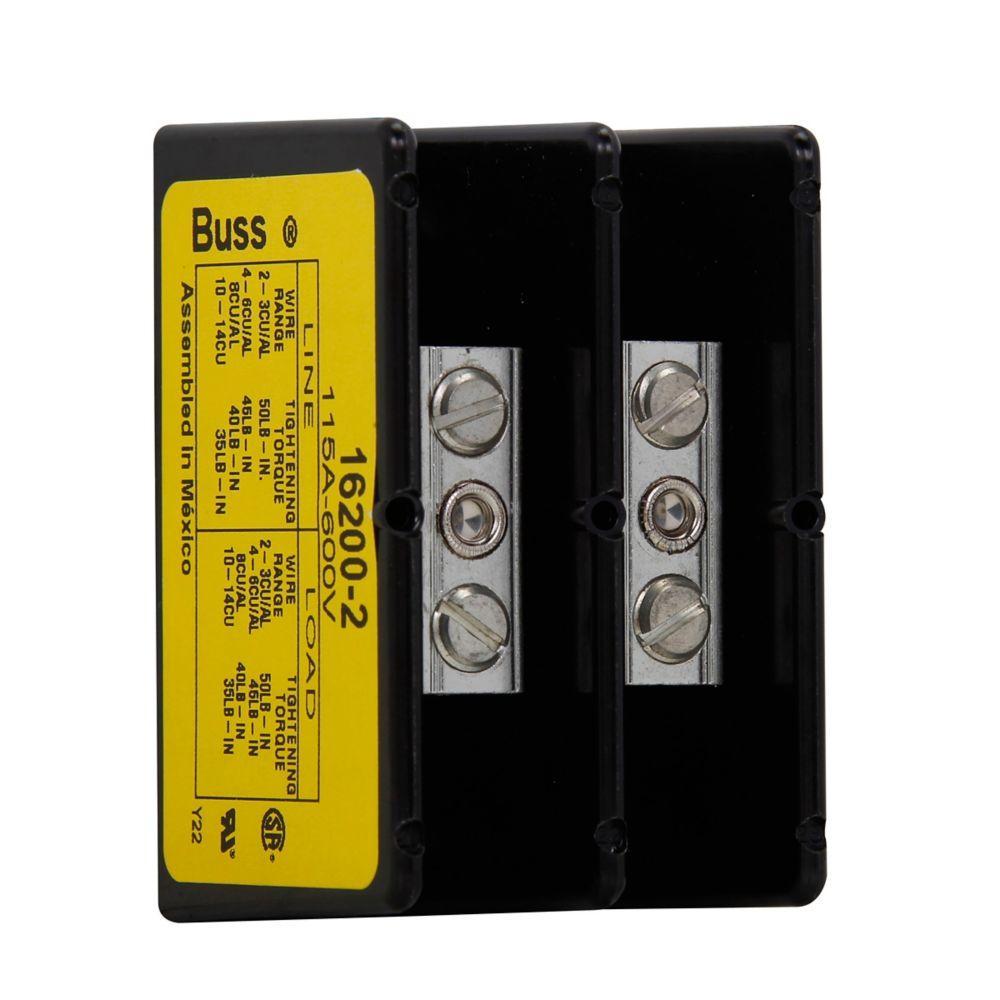

Bussmann 16200-2 Edison Power Terminal Block
Part Number # 16200-2
SKU # 2430235
$88.46 / Each
Bussmann 16200-2 Key Features
Brand: Bussmann
Part Number # 16200-2
SKU #2430235
Amperage Rating: 115 A
Dimensions: 1.88 in L x 2.88 in W x 1.75 in H
Finish: Tin Plated
Number of Poles: 2
Series: 162
Short Circuit Current Rating (kA): 10 kA
Type: 0, Connector Block/Splicer
Voltage Rating: 600 VAC/VDC
Wire Size: 14 to 2 AWG Cu, 8 to 2 AWG Al Line/Load, 14 to 2 AWG, 8 to 2 AWG
Color: Black
Country of origin: MX
Material: Thermoplastic
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712207836
$88.46 / Each
- Bussmann Power Splicer Block, Series: 162, 600 VAC/VDC, 115 A, 2 Pole, Stud Primary Connections/Pole, Stud Secondary Connection/Pole, 14 to 2 AWG Cu, 8 to 2 AWG Al Line/Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 1.88 in L x 2.88 in W x 1.75 in H
16200-2 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16200-2 Item Features
- 14 to 2 AWG copper, 8 to 2 AWG aluminum line/load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16200-2 Standards
CE Certified|CSA File No. 53787|RoHS Compliant|UL 1059/508A File No. E221592 Guide XCFR2|UL 94 V-0 Flammability RatingSKU #2430235Part Number #16200-2UNSPSC39121629UPC00051712207836
