Part Number # 16200-3
SKU # 2348782
16200-3
Bussmann 16200-3 Power Distribution Block
Part Number # 16200-3
SKU # 2348782
Bussmann 16200-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16200-3 |
| SKU #: | 2348782 |
| Amperage Rating: | 115, 115 A |
| Dimensions: | 2.7 in L x 2.88 in W x 1.75 in H |
| Finish: | Tin Plated |
| Number of Poles: | 3 |
| Series: | 162 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | 0, Splicer |
| Wire Size: | 14 to 2 AWG Cu, 8 to 2 AWG Al Line/Load, 14 to 2 AWG, 8 to 2 AWG |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712149440 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16200-3 Power Distribution Block
Brand: Bussmann
Part Number: 16200-3
Bussmann Power Splicer Block, Series: 162, 600 VAC/VDC, 115 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2 AWG Cu, 8 to 2 AWG Al Line/Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 2.7 in L x 2.88 in W x 1.75 in H
Additional Description: BUSS-16200-3 BUSS POWER BLOCK
Catalog Description: Eaton Bussmann series power splicer block, 600 Vac, 600 Vdc, 115 A, Three-pole, SCCR: 10 kA, Black, Molded Thermoplastic
16200-3 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16200-3 Item Features
- 14 to 2 AWG copper, 8 to 2 AWG aluminum line/load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16200-3 Standards
Contact Manufacturer,Contact factory,RoHS CompliantSKU #2348782Part Number #16200-3UNSPSC39121629UPC00051712149440

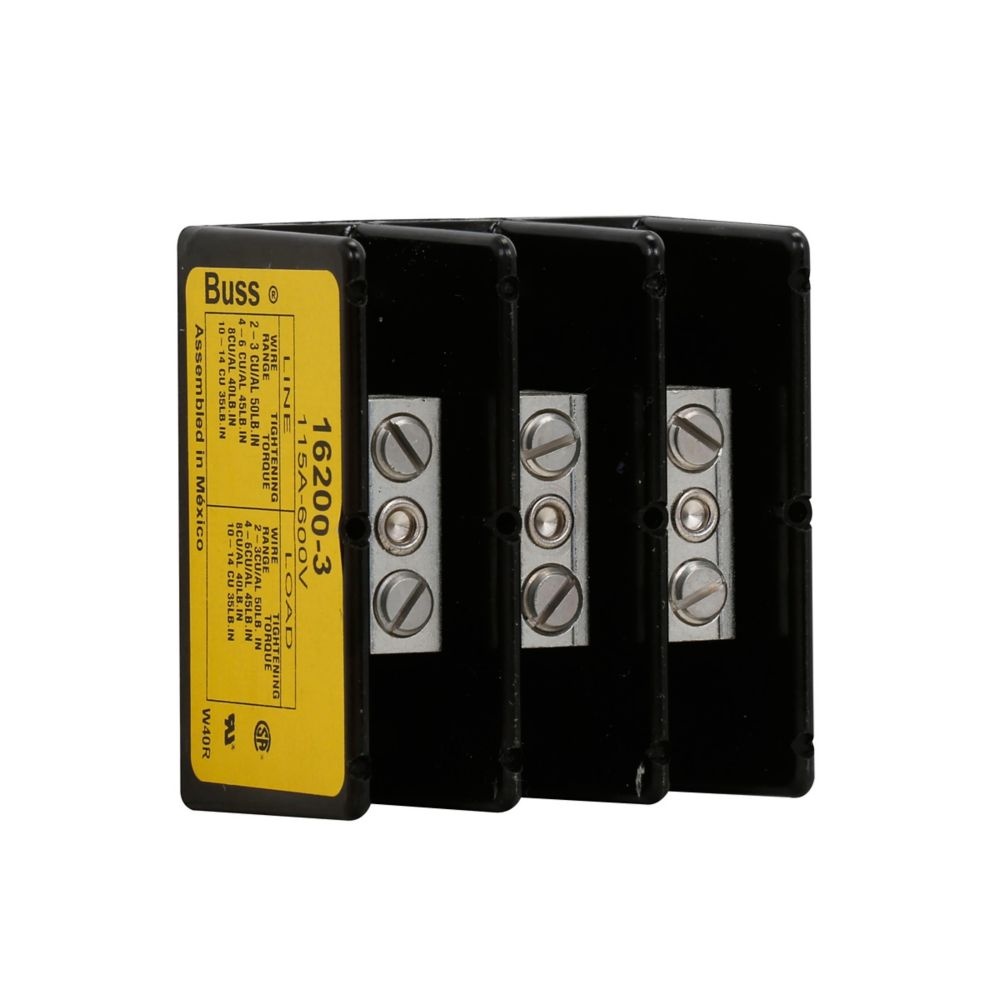

Image provided may only be a representation of final product and may include optional equipment
