16220-2

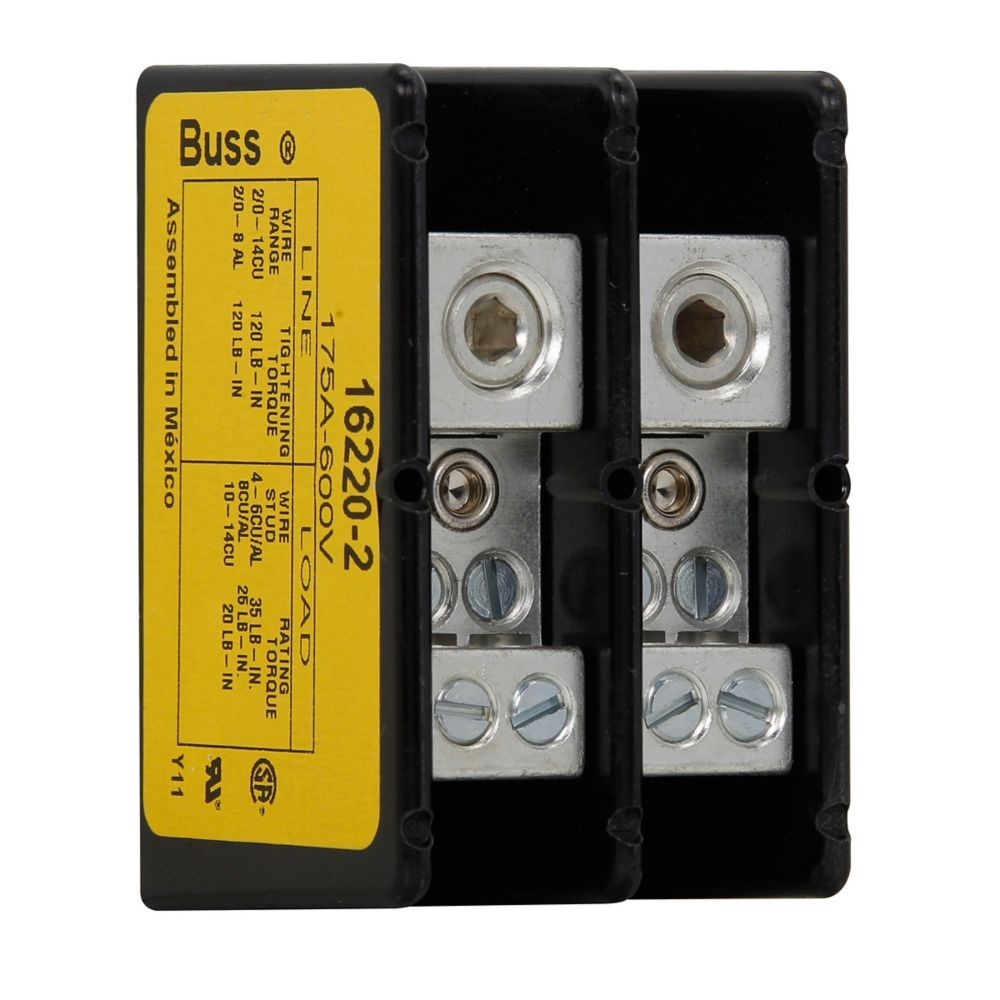

Bussmann 16220-2 Power Terminal Block
Part Number # 16220-2
SKU # 7269
$119.30 / Each
Typical price:$175.37 / Each
Bussmann 16220-2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16220-2 |
| SKU #: | 7269 |
| Amperage Rating: | 175 A |
| Dimensions: | 1.88 in L x 2.88 in W x 1.75 in H |
| Series: | 162 |
| Short Circuit Current Rating (kA): | 10 kA |
| Type: | Barrier |
| Wire Size: | (2) 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load |
| UNSPSC: | 39121629 |
| UPC: | 00051712148689 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$119.30 / Each
Typical price:$175.37 / Each
Quantity:
Bussmann 16220-2 Power Terminal Block
Brand: Bussmann
Part Number: 16220-2
Bussmann Magnum Power Distribution Block, Barrier, Series: 162, 600 V AC/DC, 175 A, 2 Pole, (2) 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 1.88 in L x 2.88 in W x 1.75 in H
Additional Description: BUSS-16220-2 BUSS BLCK WAS PDA20104042
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 175 A, Two-pole, SCCR: 10 kAIC, Black, Molded Thermoplastic
16220-2 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16220-2 Item Features
- Rated for dual wire port application to increase the possible number of line side and load side connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- https://www.youtube.com/watch?v=YMvqUyoETXk
16220-2 Standards
CE Certified|CSA Certified|RoHS Compliant|UL 1059 File No. E221592 Guide XCFR2|UL 94 V-0 Flammability Rating|UL RecognizedSKU #7269Part Number #16220-2UNSPSC39121629UPC00051712148689

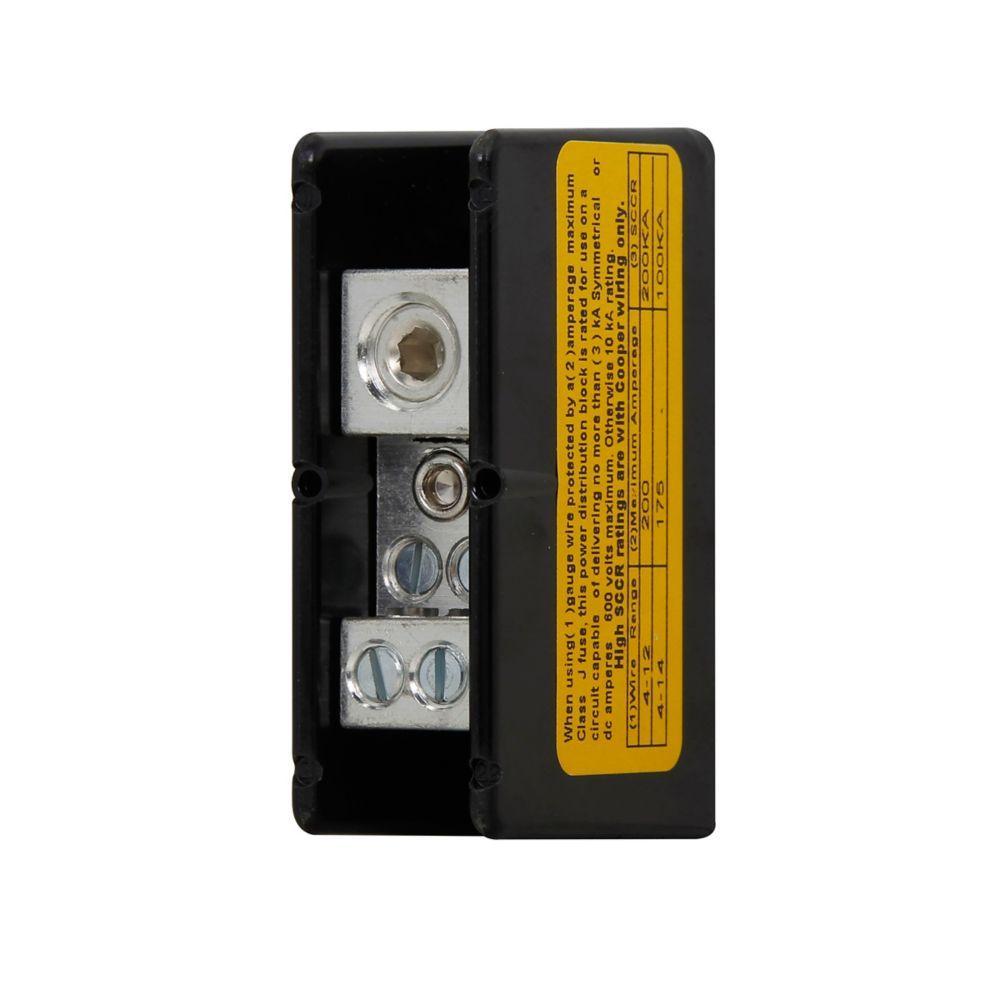

Image provided may only be a representation of final product and may include optional equipment
