Brand: Bussmann

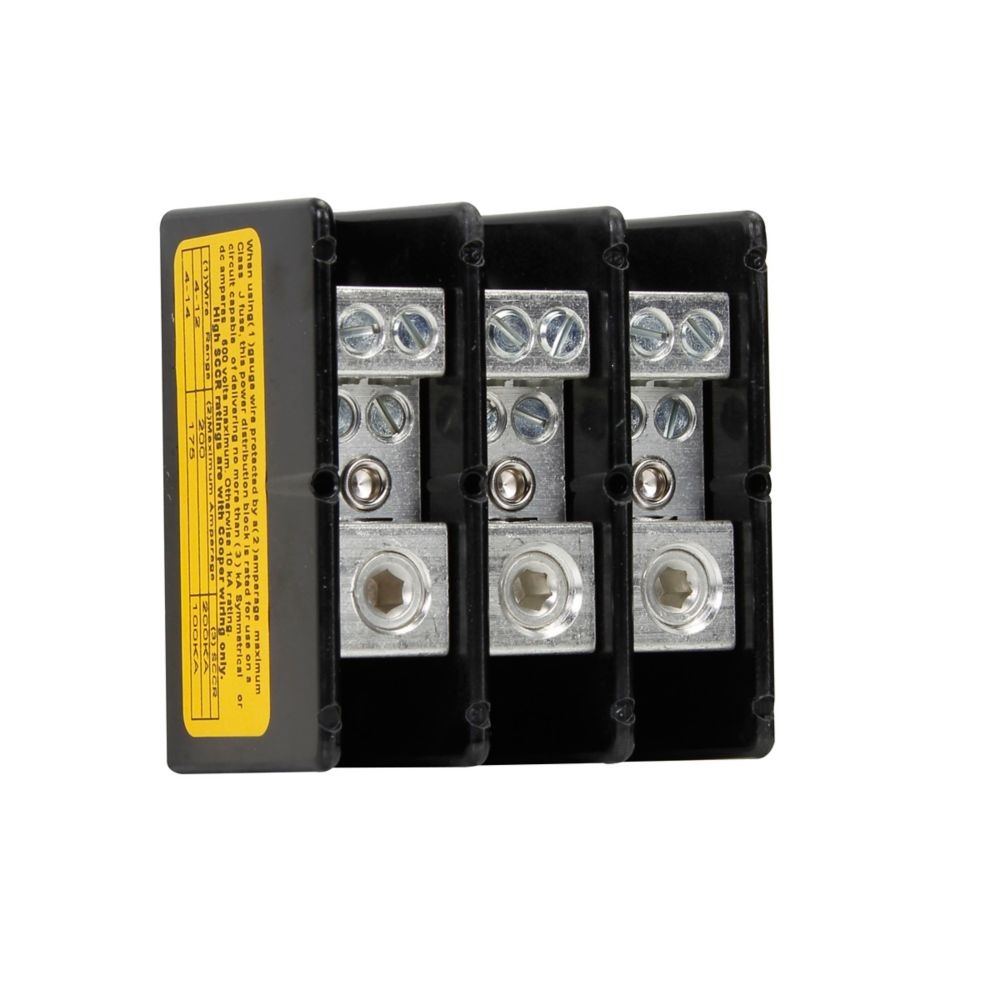

Bussmann 16220-3 Power Terminal Block
Part Number # 16220-3
SKU # 7270
$103.39 / Each
Bussmann 16220-3 Key Features
Brand: Bussmann
Part Number # 16220-3
SKU #7270
Amperage Rating: 175, 175 A
Dimensions: 2.7 in L x 2.88 in W x 1.75 in H
Finish: Tin Plated
Number of Poles: 3
Series: 162
Short Circuit Current Rating (kA): 10, 10 kA, 200 kA
Type: Barrier, Barrier Terminal
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al Load, 14 to 2/0 AWG, 8 to 2/0 AWG
Color: Black
Country of origin: MX
Material: Thermoplastic
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712149273
$103.39 / Each
Bussmann 16220-3 Power Terminal Block
Brand: Bussmann
Part Number: 16220-3
Bussmann Magnum Power Distribution Block, Barrier, Series: 162, 600 VAC/VDC, 175 A, 3 Pole, (1) Screw Primary Connections/Pole, (4) Screw Secondary Connection/Pole, 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 2.7 in L X 2.88 in W X 1.75 in H
Additional Description: BUSS-16220-3 PWR TERM.BLK 24PK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 175 A, Three-pole, SCCR: 10 kAIC, Black, Molded Thermoplastic
16220-3 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16220-3 Item Features
- Rated for dual wire port application to increase the possible number of line side and load side connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- https://www.youtube.com/watch?v=YMvqUyoETXk
16220-3 Standards
CE Certified|CSA Certified|RoHS Compliant|UL 1059 File No. E221592 Guide XCFR2|UL 94 V-0 Flammability Rating|UL RecognizedSKU #7270Part Number #16220-3UNSPSC39121629UPC00051712149273
