Part Number # 16280-3-M
SKU # 2202748
16280-3-M

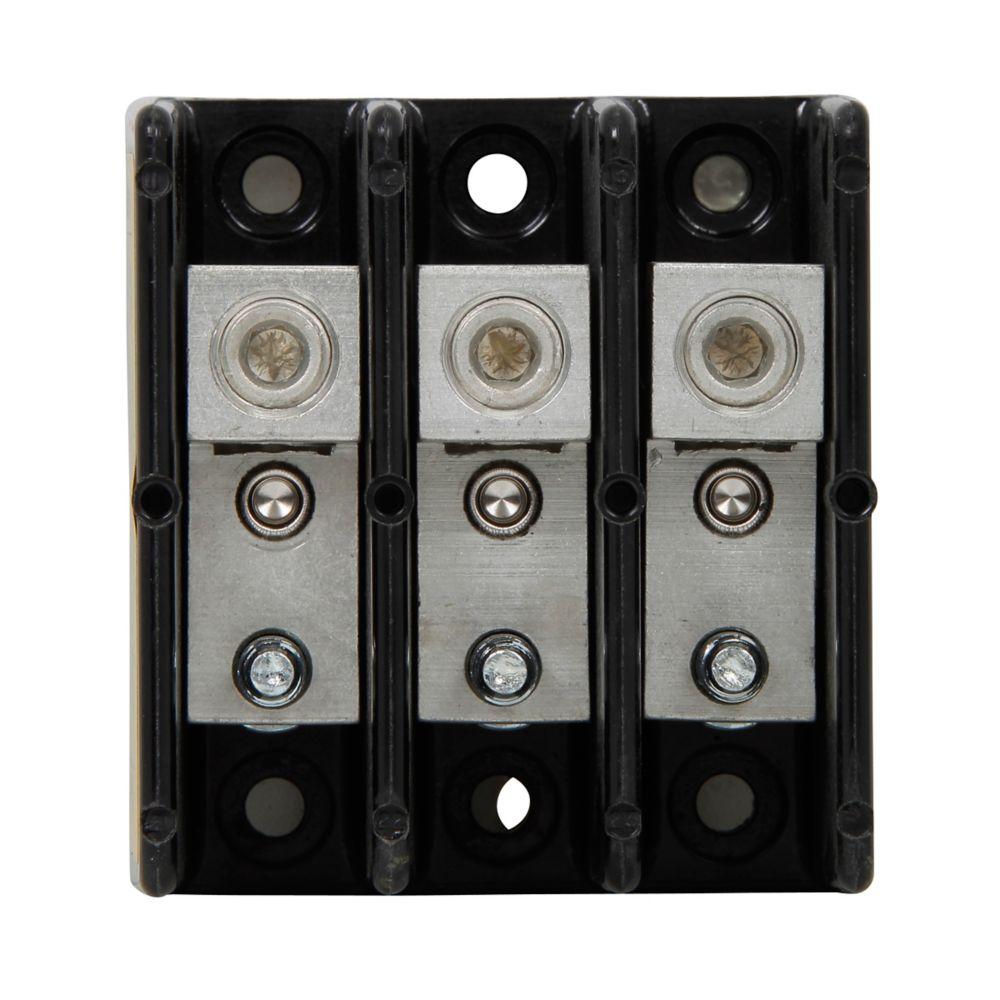

Bussmann 16280-3-M Power Distribution Terminal Block
Part Number # 16280-3-M
SKU # 2202748
Bussmann 16280-3-M Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16280-3-M |
| SKU #: | 2202748 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 1.69 in H x 2.62 in W x 2.84 in D, 2.84 in L x 1.69 in W x 2.62 in H |
| Number of Poles: | 3 |
| Series: | 162 |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Type: | Thermoplastic |
| Wire Size: | 14 to 2/0 AWG, 14 to 2/0 AWG Cu/Al Line, 14 to 2/0 AWG Cu/Al Line, 1/4-20 x 3/4 in Stud Load |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712506106 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16280-3-M Power Distribution Terminal Block
Brand: Bussmann
Part Number: 16280-3-M
Bussmann Power Terminal Block, Series: 162, 600 VAC/VDC, 175 A, 3 Pole, (1) 1/4-20 x 3/4 in Stud Secondary Connection/Pole, 14 to 2/0 AWG Cu/Al Line Wire, 200 kA Short Circuit Current Rating, Thermoplastic, Black, 2.84 in L x 1.69 in W x 2.62 in H
Additional Description: BUSS-16280-3-M (N) POWER DISC. BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power terminal block, Power terminal block, Three-pole - 16280-3-M
16280-3-M Application
For Electrical Assemblies, Panels and EOEMs Applications, Panels and EOEMs16280-3-M Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
16280-3-M Standards
Contact factory|RoHS Compliant|Contact Manufacturer|UL ListedSKU #2202748Part Number #16280-3-MUNSPSC39121629UPC00051712506106
Image provided may only be a representation of final product and may include optional equipment
