Part Number # 16290-1
SKU # 2347787
Image Disclaimers Message
16290-1

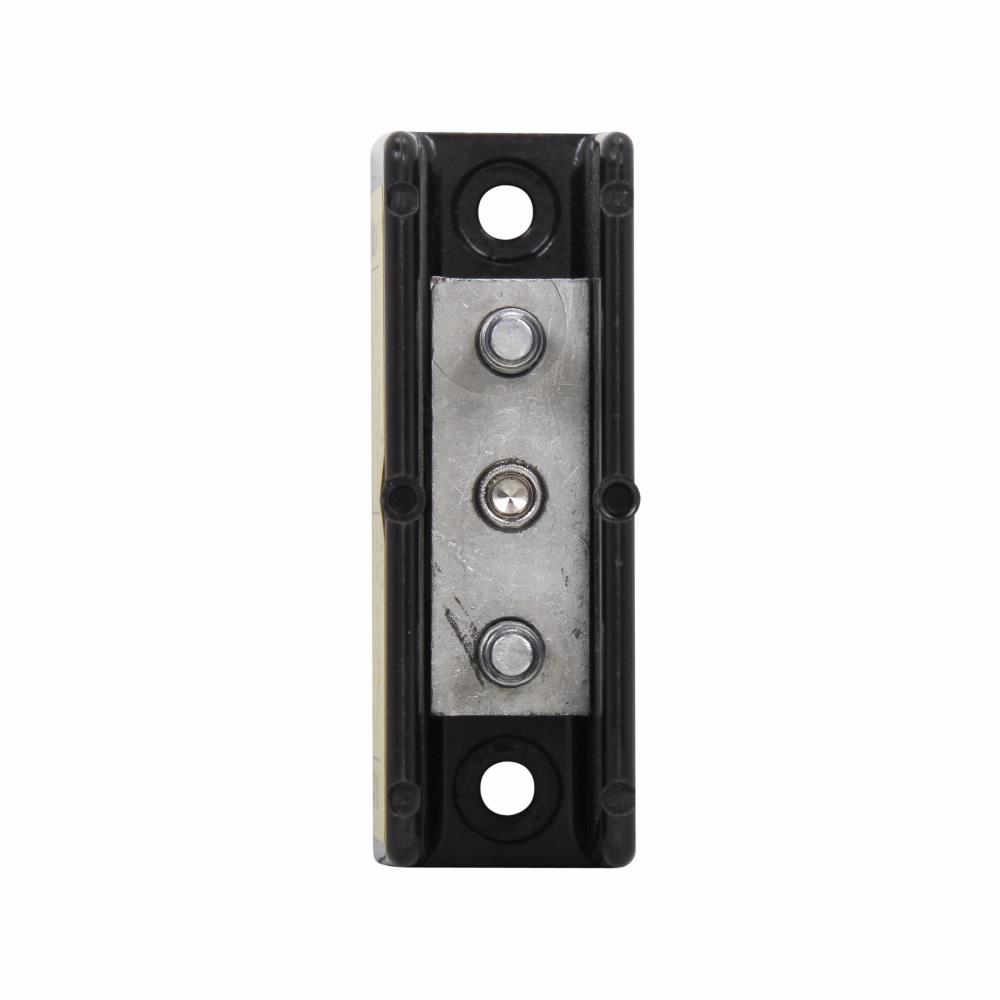

Bussmann 16290-1 Power Stud Terminal Block
Part Number # 16290-1
SKU # 2347787
$71.56 / Each
Typical price:$145.51 / Each
Bussmann 16290-1 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16290-1 |
| SKU #: | 2347787 |
| Amperage Rating: | 150, 150 A |
| Dimensions: | 1.07 in L x 2.88 in W x 1.75 in H |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Series: | 162 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier, Barrier Molded |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712604505 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$71.56 / Each
Typical price:$145.51 / Each
Quantity:
- Bussmann Magnum Power Terminal Block, Barrier Molded, Series: 162, 600 V AC/DC, 150 A, 1 Pole, (1) 1/4-20 x 3/4 in Stud Primary Connections/Pole, (1) 1/4-20 x 3/4 in Stud Secondary Connection/Pole, 10 kA Short Circuit Current, Aluminum/Thermoplastic, Tin Plated, Black, 1.07 in L x 2.88 in W x 1.75 in H
16290-1 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16290-1 Item Features
- Rated for dual wire port applications to increase the possible number of line side and load side connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- SMD/SMT style mounting
- https://www.youtube.com/watch?v=YMvqUyoETXk
16290-1 Standards
CE Certified|CSA File No. 53787/15364 Guide XCFR2|RoHS Compliant|UL 1059 File No. E221592|UL 94 V-0 Flammability RatingSKU #2347787Part Number #16290-1UNSPSC39121629UPC00051712604505
