Part Number # 16290-2
SKU # 2328441
Image provided may only be a representation of
final product and may include optional equipment
16290-2

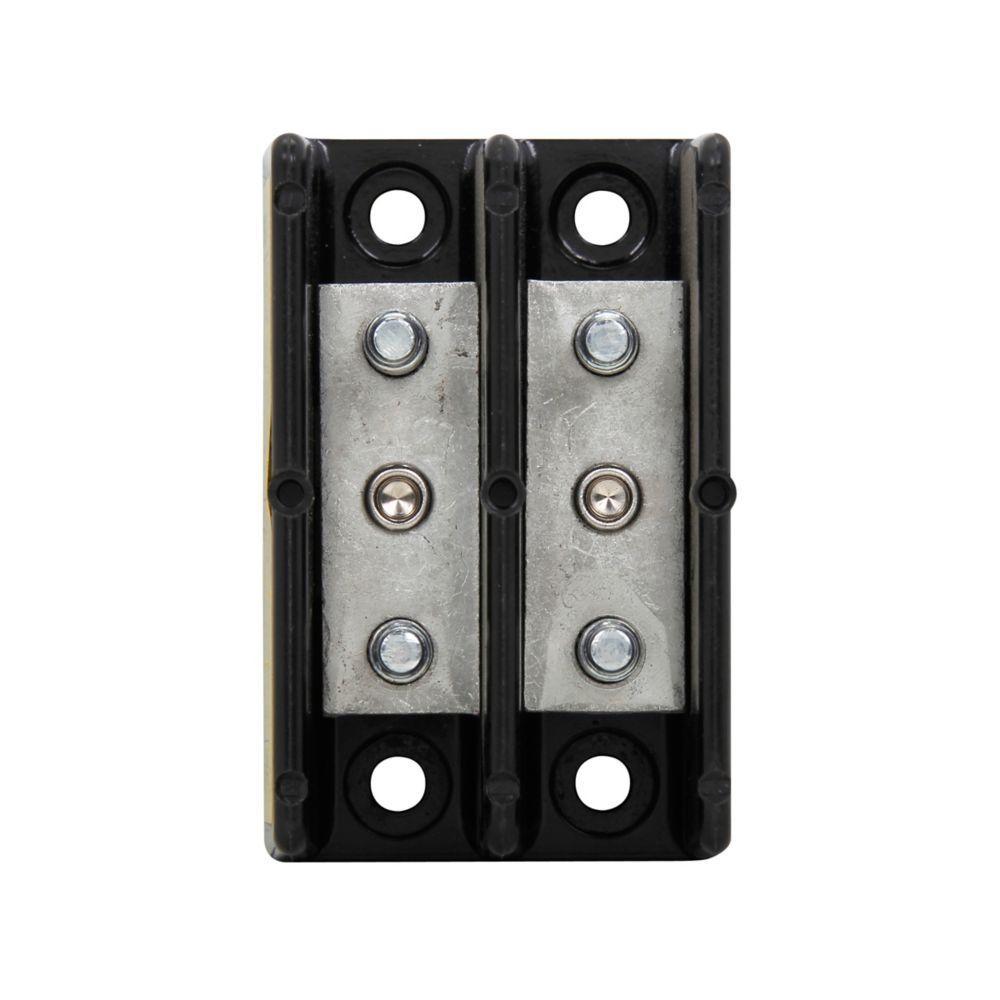

Bussmann 16290-2 Power Terminal Block
Part Number # 16290-2
SKU # 2328441
Bussmann 16290-2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16290-2 |
| SKU #: | 2328441 |
| Amperage Rating: | 150, 150 A, 175 |
| Dimensions: | 1.88 in L x 2.88 in W x 1.75 in H |
| Finish: | Tin Plated |
| Number of Poles: | 2 |
| Series: | 162 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier, Barrier Stud to Stud, Connector to Stud |
| Wire Size: | 1/4-20 x 3/4 in Line/Load Stud |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712502306 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16290-2 Power Terminal Block
Brand: Bussmann
Part Number: 16290-2
Bussmann Power Terminal Block, Barrier, Series: 162, 600 VAC/VDC, 150 A, 2 Pole, 1/4-20 x 3/4 in Stud Primary Connections/Pole, 1/4-20 x 3/4 in Stud Secondary Connection/Pole, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 1.88 in L x 2.88 in W x 1.75 in H
Additional Description: BUSS-16290-2 (N) POWER DIST. STUD BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 150 A, Two-pole, 1/4 Inches-20 TPI X 3/4 Inches Stud (Line/Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
16290-2 Specifications
- Rated for dual wire port application to increase the possible number of lineside and loadside connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- (1) stud primary, (1) stud secondary
- 1/4-20 x 3/4 stud line/load
16290-2 Application
Electrical Assemblies, Panels and EOEMs Applications16290-2 Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
16290-2 Standards
CE Guide XCFR2|CSA File No. 53787|RoHS Compliant|UL 94-V-0 Flammability Rating|UL File 1059 No. E221592SKU #2328441Part Number #16290-2UNSPSC39121629UPC00051712502306
