16303-2

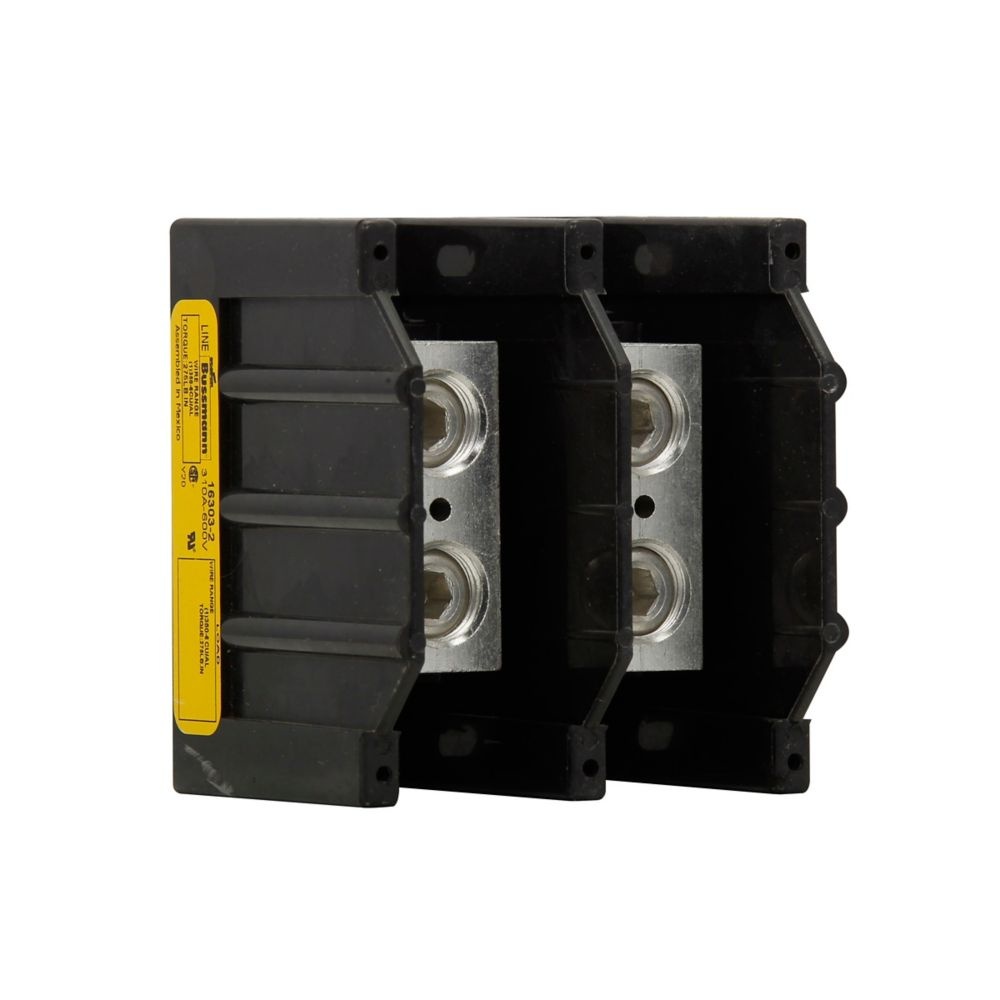

Bussmann 16303-2 Edison Power Terminal Block
Part Number # 16303-2
SKU # 2406566
$190.44 / Each
Typical price:$279.95 / Each
Bussmann 16303-2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16303-2 |
| SKU #: | 2406566 |
| Amperage Rating: | 310 A |
| Dimensions: | 3.6 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 2 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 10 kA |
| Type: | Barrier, Barrier/Splicer |
| Wire Size: | 6 AWG to 350 kcmil, 6 AWG to 350 kcmil Cu Line/Load |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712148702 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$190.44 / Each
Typical price:$279.95 / Each
Quantity:
- Edison Power Terminal Block, Barrier/Splicer, Series: 163, 600 V AC/DC, 310 A, 2 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 10 kA Short Circuit, Thermoplastic, Tin Plated, Black, 3.6 in L x 4 in W x 3.32 in H Dimensions
16303-2 Application
Power Distribution Applications16303-2 Item Features
- Rated for dual wire port application to increase the possible number of lineside and loadside connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- 6 AWG to 350 kcmil copper/aluminum line/load wire
- (1) screw primary, (1) screw secondary
- https://www.youtube.com/watch?v=YMvqUyoETXk
16303-2 Standards
CE Certified|Guide XCFR2|UL Listed|UL File No. E221592/1059|CSA Class 6228-01/53787SKU #2406566Part Number #16303-2UNSPSC39121629UPC00051712148702
