16321-3

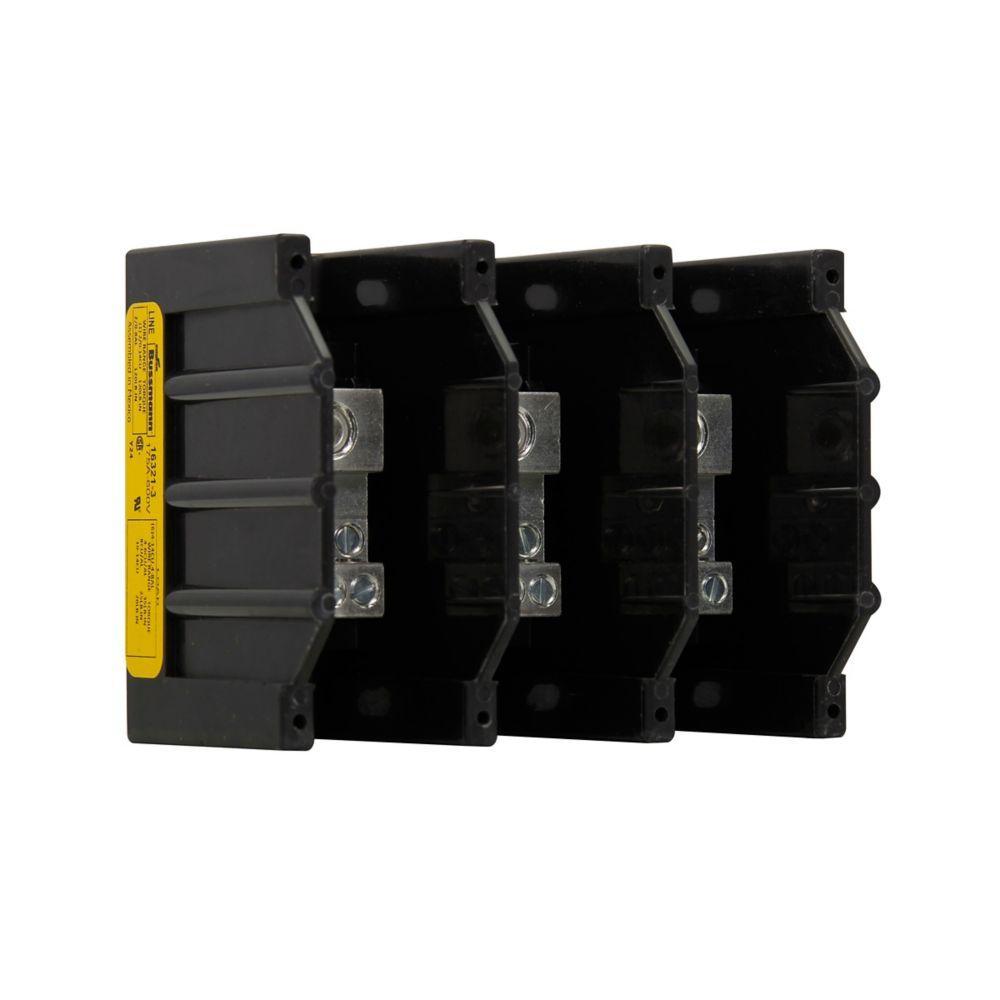

Bussmann 16321-3 Power Terminal Block
Part Number # 16321-3
SKU # 225057
Bussmann 16321-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16321-3 |
| SKU #: | 225057 |
| Amperage Rating: | 175 A |
| Dimensions: | 5.21 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Barrier |
| Wire Size: | 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load |
| Material: | Aluminum/Thermoplastic |
| UNSPSC: | 39121629 |
| UPC: | 00051712247641 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16321-3 Power Terminal Block
Brand: Bussmann
Part Number: 16321-3
Bussmann Magnum Power Distribution Block, Barrier, Series: 163, 600 V AC/DC, 175 A, 3 Pole, (1) Screw Primary Connections/Pole, (6) Screw Secondary Connection/Pole, 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, 100 kA Short Circuit Current, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16321-3 POWER DIST. BLOCK 15PK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 175 A, Three-pole, SCCR: 100 kAIC, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
16321-3 Application
Electrical Assemblies, Panels and EOEMs Applications16321-3 Item Features
- Rated for dual wire port applications to increase the possible number of line side and load side connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- https://www.youtube.com/watch?v=YMvqUyoETXk
16321-3 Standards
CSA Certified|RoHS Compliant|UL ListedSKU #225057Part Number #16321-3UNSPSC39121629UPC00051712247641
Image provided may only be a representation of final product and may include optional equipment
