Part Number # 16323-2
SKU # 7275
Image provided may only be a representation of
final product and may include optional equipment
16323-2

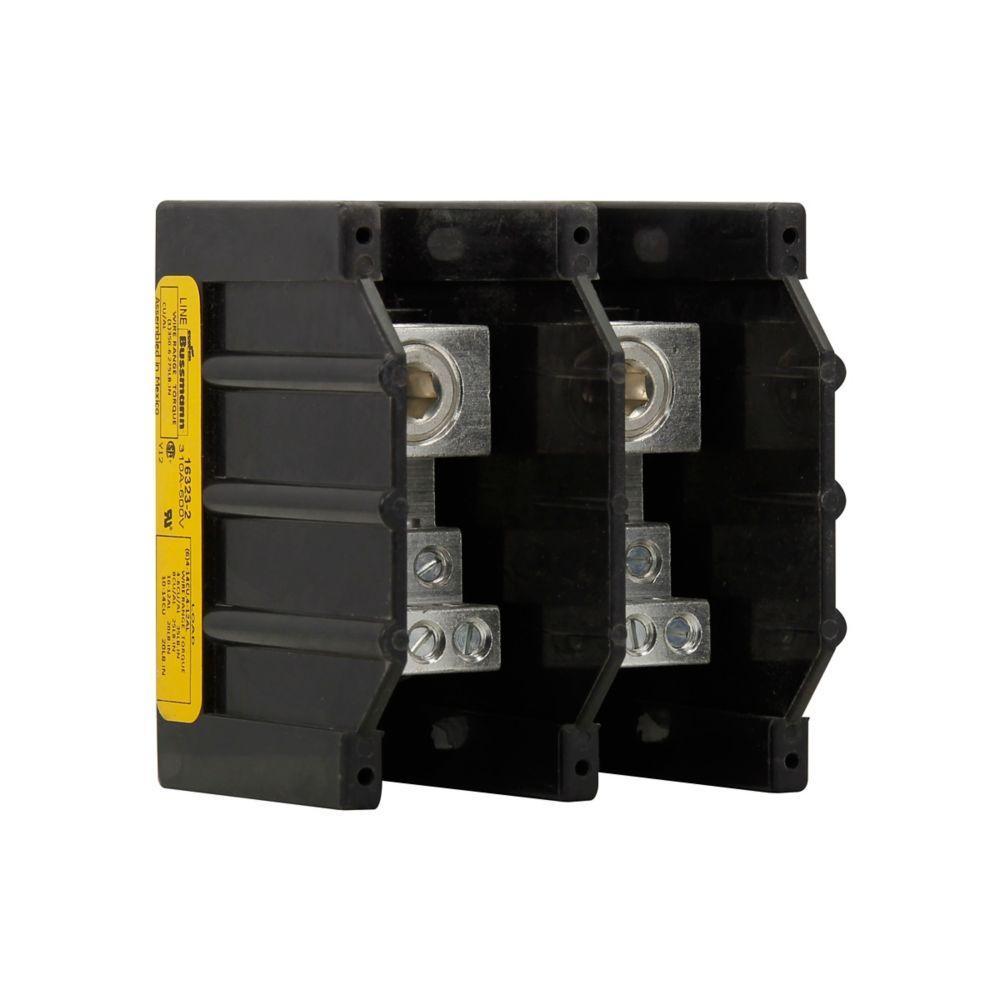

Bussmann 16323-2 Power Distribution Block
Part Number # 16323-2
SKU # 7275
Bussmann 16323-2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16323-2 |
| SKU #: | 7275 |
| Amperage Rating: | 310, 310 A |
| Dimensions: | 3.6 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 2 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Type: | Barrier |
| Wire Size: | 6 AWG to 350 kcmil, 6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712148726 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16323-2 Power Distribution Block
Brand: Bussmann
Part Number: 16323-2
Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 310 A, 2 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 3.6 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16323-2 (N) BUSS BLCK WAS PDA4M102062 WAS PDA4M102 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Two-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16323-2
16323-2 Application
Electrical Assemblies, Panels and EOEMs Applications16323-2 Item Features
- 6 AWG to 350 kcmil copper/aluminum line, 14 to 4 AWG copper, 12 to 4 AWG aluminum load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16323-2 Standards
Contact Manufacturer,RoHS Compliant,Contact factorySKU #7275Part Number #16323-2UNSPSC39121629UPC00051712148726
