Part Number # 16325-3
SKU # 284669
Image provided may only be a representation of
final product and may include optional equipment
16325-3

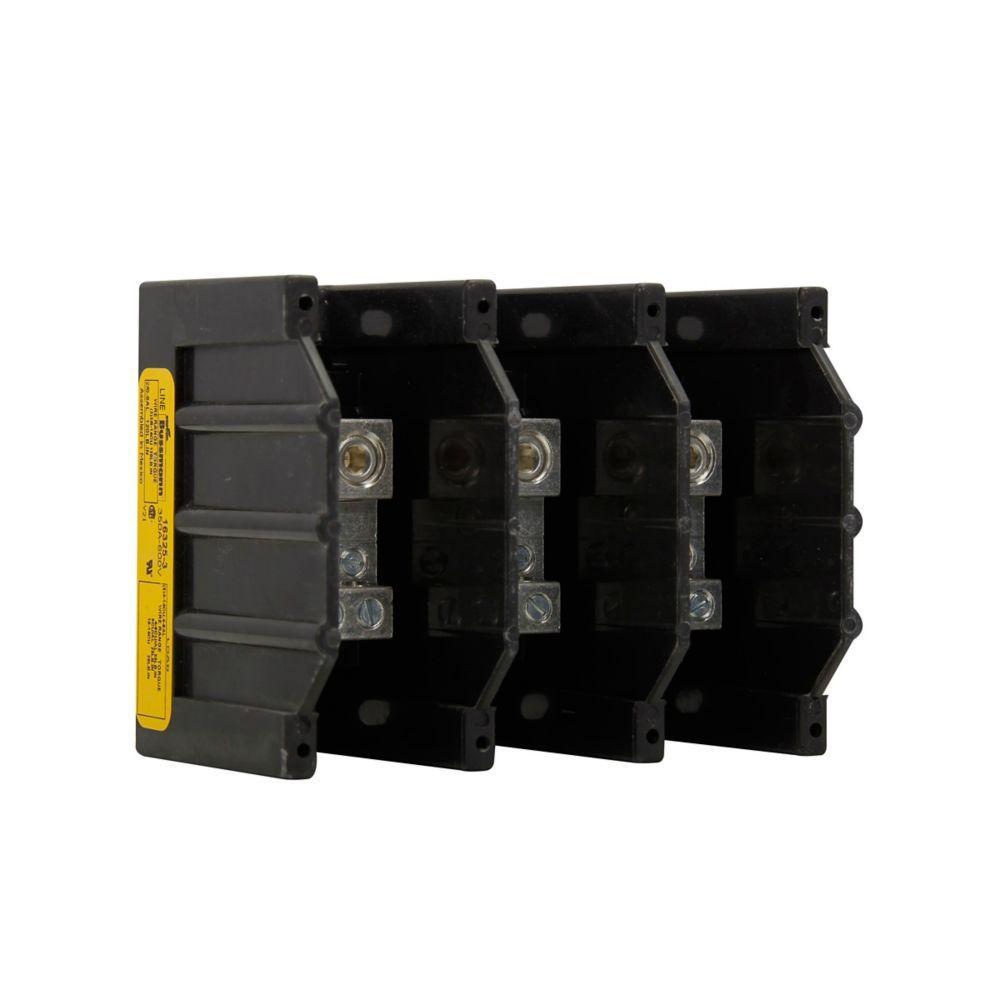

Bussmann 16325-3 Power Distribution Block
Part Number # 16325-3
SKU # 284669
Bussmann 16325-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16325-3 |
| SKU #: | 284669 |
| Amperage Rating: | 350, 350 A |
| Dimensions: | 5.21 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 3 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier |
| Wire Size: | 14 to 2/0 AWG, 8 to 2/0 AWG |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712148757 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16325-3 Power Distribution Block
Brand: Bussmann
Part Number: 16325-3
Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 350 A, 3 Pole, 2 Primary Connections/Pole, 6 Secondary Connection/Pole, 14 to 2/0 AWG, 8 to 2/0 AWG Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16325-3 POWER TERM. BLK 15PK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 350A, Three-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
16325-3 Application
Electrical Assemblies, Panels and OEMs Applications16325-3 Item Features
- 14 to 2/0 AWG copper, 8 to 2/0 AWG aluminum line side, 14 to 4 AWG copper, 8 to 4 AWG aluminum load side wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
16325-3 Standards
CE Certified|CSA 6228-01/53787|RoHS Compliant|UL 1059|UL 508A|UL 94-V-0 Flammability Rating|UL File No. E221592|UL Guide XCFR2SKU #284669Part Number #16325-3UNSPSC39121629UPC00051712148757
