Brand: Bussmann
16335-3

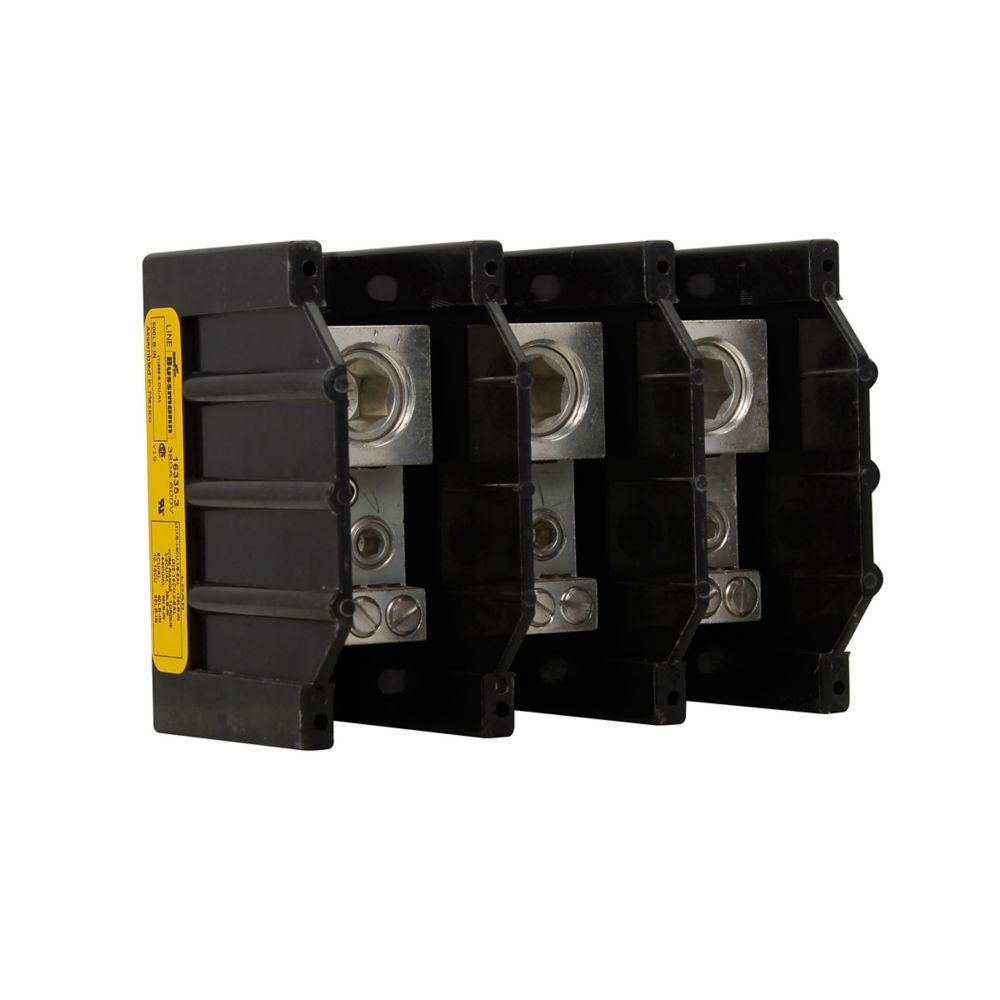

Bussmann 16335-3 Power Distribution Block
Part Number # 16335-3
SKU # 2396234
$340.43 / Each
Typical price:$631.02 / Each
Bussmann 16335-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16335-3 |
| SKU #: | 2396234 |
| Amperage Rating: | 380, 380 A |
| Dimensions: | 5.21 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 3 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier |
| Wire Size: | 6 AWG to 350 kcmil Cu/Al Line, 14 to 2 AWG, 14 to 1/0 AWG Cu, 8 to 2 AWG, 8 to 1/0 AWG Al Load |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712269056 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$340.43 / Each
Typical price:$631.02 / Each
Quantity:
- Bussmann Power Distribution Block, Barrier, Series: 163, 600 V AC/DC, 380 A, 3 Pole, 1 Primary Connections/Pole, 5 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/Al Line, 14 to 2 AWG, 14 to 1/0 AWG Cu, 8 to 2 AWG, 8 to 1/0 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
16335-3 Application
Electrical Assemblies, Panels and EOEMs Applications16335-3 Item Features
- 6 AWG to 350 kcmil copper/aluminum line, 14 to 2 AWG, 14 to 1/0 AWG copper, 8 to 2 AWG, 8 to 1/0 AWG aluminum load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16335-3 Standards
CE Certified|CSA Class 6228-01 File No. 53787|UL 94-V-0 Flammability Rating|UL File No. 1059/508A/E221592 Guide XCFR2SKU #2396234Part Number #16335-3UNSPSC39121629UPC00051712269056
