16370-1

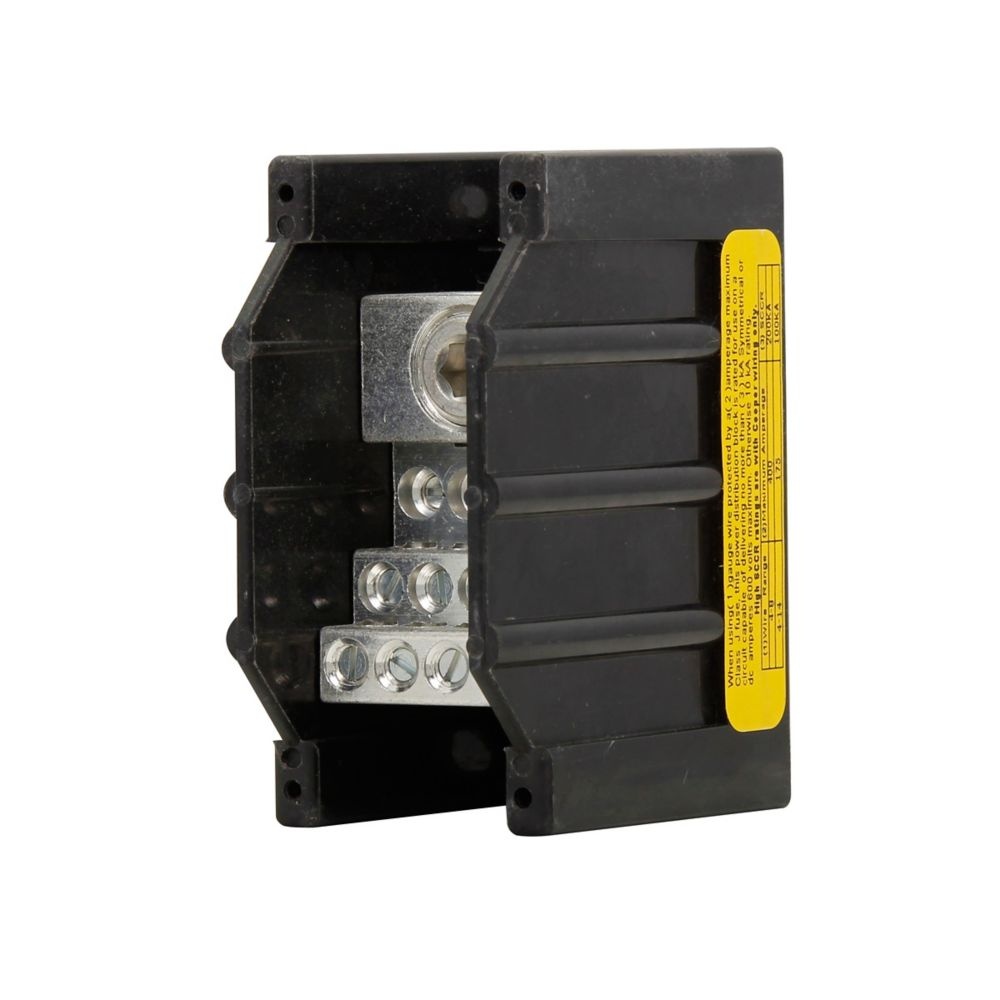

Bussmann 16370-1 Power Terminal Block
Part Number # 16370-1
SKU # 142358
Bussmann 16370-1 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16370-1 |
| SKU #: | 142358 |
| Amperage Rating: | 310 A |
| Dimensions: | 1.98 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Barrier |
| Wire Size: | 6 AWG to 350 kcmil Cu/Al Line, (12) 14 to 4 AWG Cu, 12 to 4 AWG Al Load |
| Material: | Aluminum/Thermoplastic |
| UNSPSC: | 39121629 |
| UPC: | 00051712271349 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16370-1 Power Terminal Block
Brand: Bussmann
Part Number: 16370-1
Bussmann Power Distribution Block, Barrier, Series: 163, 600 V AC/DC, 310 A, 1 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/Al Line, (12) 14 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 1.98 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16370-1 POWER DIST. BLOCK 24PK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310 A, Single-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
16370-1 Application
Electrical Assemblies, Panels and EOEMs Applications16370-1 Item Features
- 6 AWG to 350 kcmil copper, aluminum line, (12) 14 to 4 AWG copper, 12 to 4 AWG aluminum load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16370-1 Standards
CE Certified|CSA File No. 53787|RoHS Compliant|UL 1059 File No. 221592 Guide XCFR2|UL 94-V-0 Flammability RatingSKU #142358Part Number #16370-1UNSPSC39121629UPC00051712271349
Image provided may only be a representation of final product and may include optional equipment
