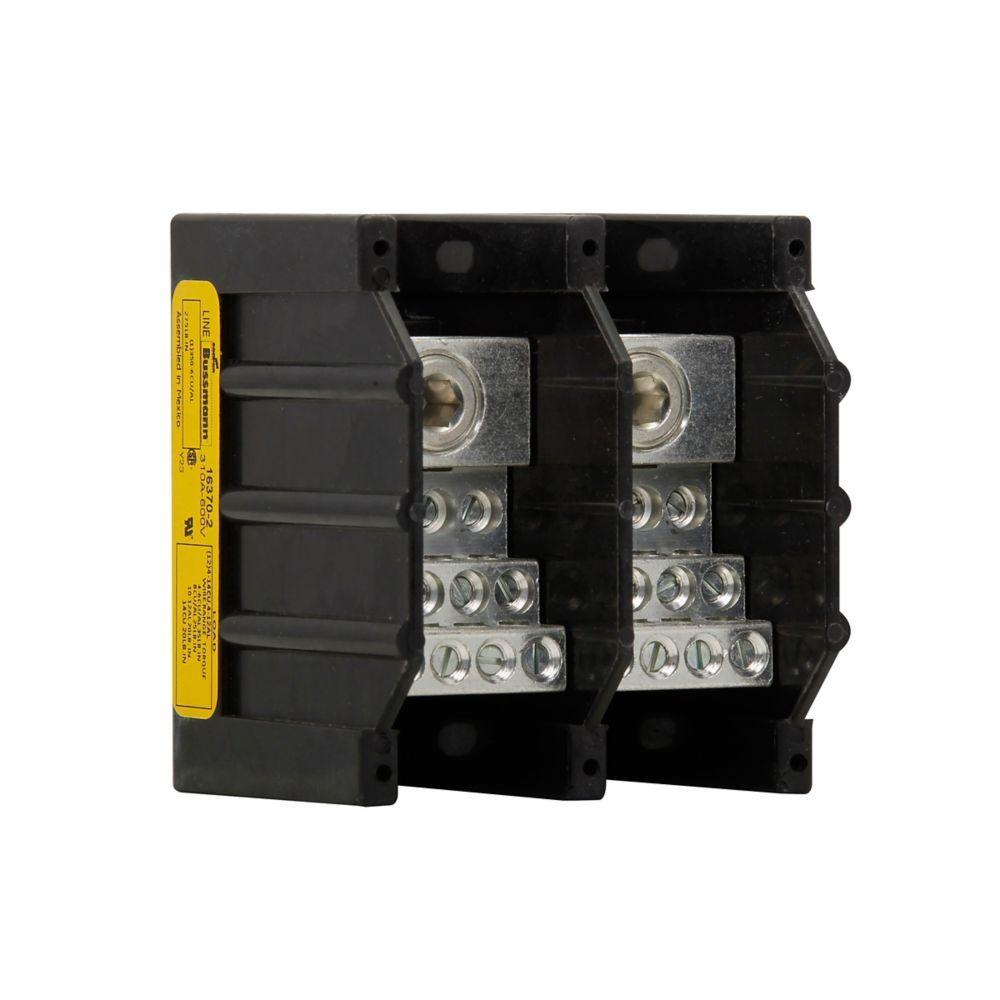

Bussmann 16370-2 Power Terminal Block
Part Number # 16370-2
SKU # 142240
$287.16 / Each
Typical price:$422.12 / Each
Bussmann 16370-2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16370-2 |
| SKU #: | 142240 |
| Amperage Rating: | 310, 310 A |
| Dimensions: | 3.6 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 2 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Type: | Barrier |
| Wire Size: | 6 AWG to 350 kcmil, 6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712271356 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$287.16 / Each
Typical price:$422.12 / Each
Quantity:
- Bussmann Power Distribution Block, Barrier, Series: 163, 600 V AC/DC, 310 A, 2 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 3.6 in L x 4 in W x 3.32 in H
16370-2 Application
Electrical Assemblies, Panels and EOEMs Applications16370-2 Item Features
- 6 AWG to 350 kcmil copper/aluminum line, 14 to 4 AWG copper, 12 to 4 AWG aluminum load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16370-2 Standards
CE Certified|CSA File No. 53787|RoHS Compliant|UL 1059/508A File No. E221592 Guide XCFR2|UL 94 V-0 Flammability RatingSKU #142240Part Number #16370-2UNSPSC39121629UPC00051712271356
