16370-3

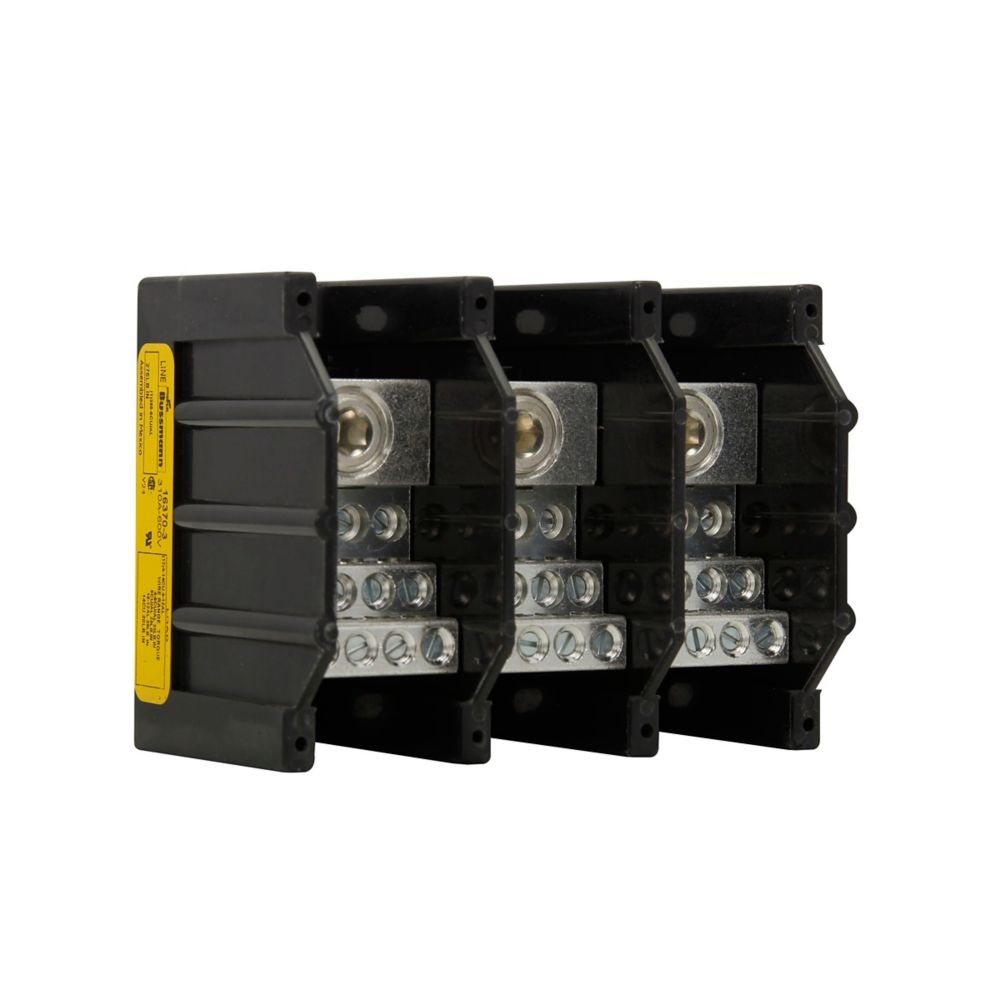

Bussmann 16370-3 Power Terminal Block
Part Number # 16370-3
SKU # 142513
Bussmann 16370-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16370-3 |
| SKU #: | 142513 |
| Amperage Rating: | 310 A |
| Dimensions: | 5.21 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Barrier |
| Wire Size: | 6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load |
| Material: | Aluminum/Thermoplastic |
| UNSPSC: | 39121629 |
| UPC: | 00051712271363 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16370-3 Power Terminal Block
Brand: Bussmann
Part Number: 16370-3
Bussmann Power Distribution Block, Barrier, Series: 163, 600 V AC/DC, 310 A, 3 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16370-3 POWER DIST. BLOCK 15PK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Three-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16370-3
16370-3 Application
Electrical Assemblies, Panels and EOEMs Applications16370-3 Item Features
- 6 AWG to 350 kcmil copper/aluminum line, 14 to 4 AWG copper, 12 to 4 AWG aluminum load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16370-3 Standards
CE Certified|CSA File No. 53787|RoHS Compliant|UL 1059/508A File No. E221592 Guide XCFR2|UL 94 V-0 Flammability RatingSKU #142513Part Number #16370-3UNSPSC39121629UPC00051712271363
Image provided may only be a representation of final product and may include optional equipment
