Part Number # 16371-1
SKU # 2332080
Image Disclaimers Message
16371-1

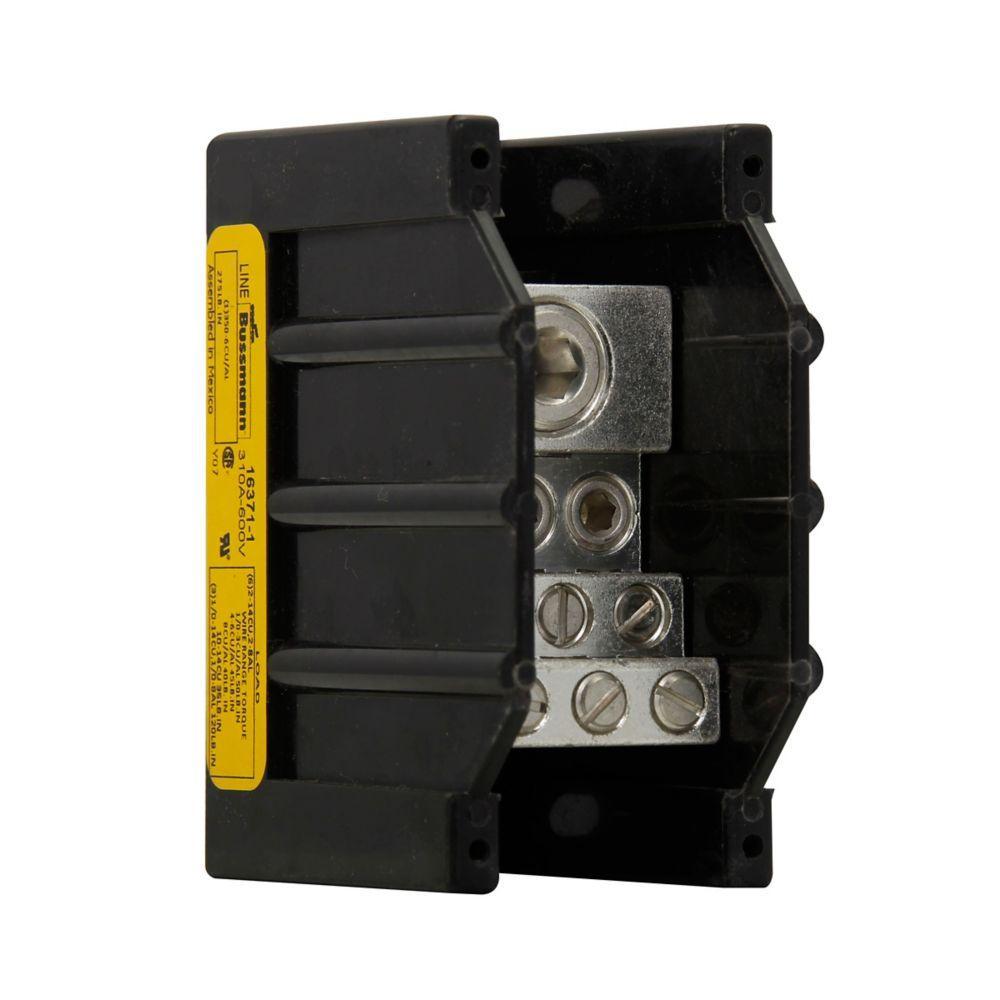

Bussmann 16371-1 Power Distribution Block
Part Number # 16371-1
SKU # 2332080
$144.76 / Each
Typical price:$212.79 / Each
Bussmann 16371-1 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16371-1 |
| SKU #: | 2332080 |
| Amperage Rating: | 310, 310 A |
| Dimensions: | 1.98 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Type: | Barrier, Barrier Splicer |
| Wire Size: | 6 AWG to 350 kcmil, 6 AWG to 350 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu, 8 to 2 AWG Al, (3) 14 to 1/0 AWG Cu, 8 to 1/0 AWG Al Load, 6 AWG to 350 kcmil, 8 to 1/0 AWG |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712271370 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$144.76 / Each
Typical price:$212.79 / Each
Quantity:
- Bussmann Power Distribution Block, Barrier, Series: 163, 600 V AC/DC, 310 A, 1 Pole, 1 Primary Connections/Pole, 9 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu, 8 to 2 AWG Al, (3) 14 to 1/0 AWG Cu, 8 to 1/0 AWG Al Load Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 1.98 in L x 4 in W x 3.32 in H
16371-1 Application
Electrical Assemblies, Panels and EOEMs Applications16371-1 Item Features
- 6 AWG to 350 kcmil copper/aluminum line, (6) 14 to 2 AWG copper, 8 to 2 AWG aluminum, (3) 14 to 1/0 AWG copper, 8 to 1/0 AWG aluminum load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16371-1 Standards
CE Certified|CSA File No. 53787|RoHS Compliant|UL 1059 File No. 221592 Guide XCFR2|UL 94-V-0 Flammability RatingSKU #2332080Part Number #16371-1UNSPSC39121629UPC00051712271370
