Part Number # 16371-2
SKU # 7279
16371-2

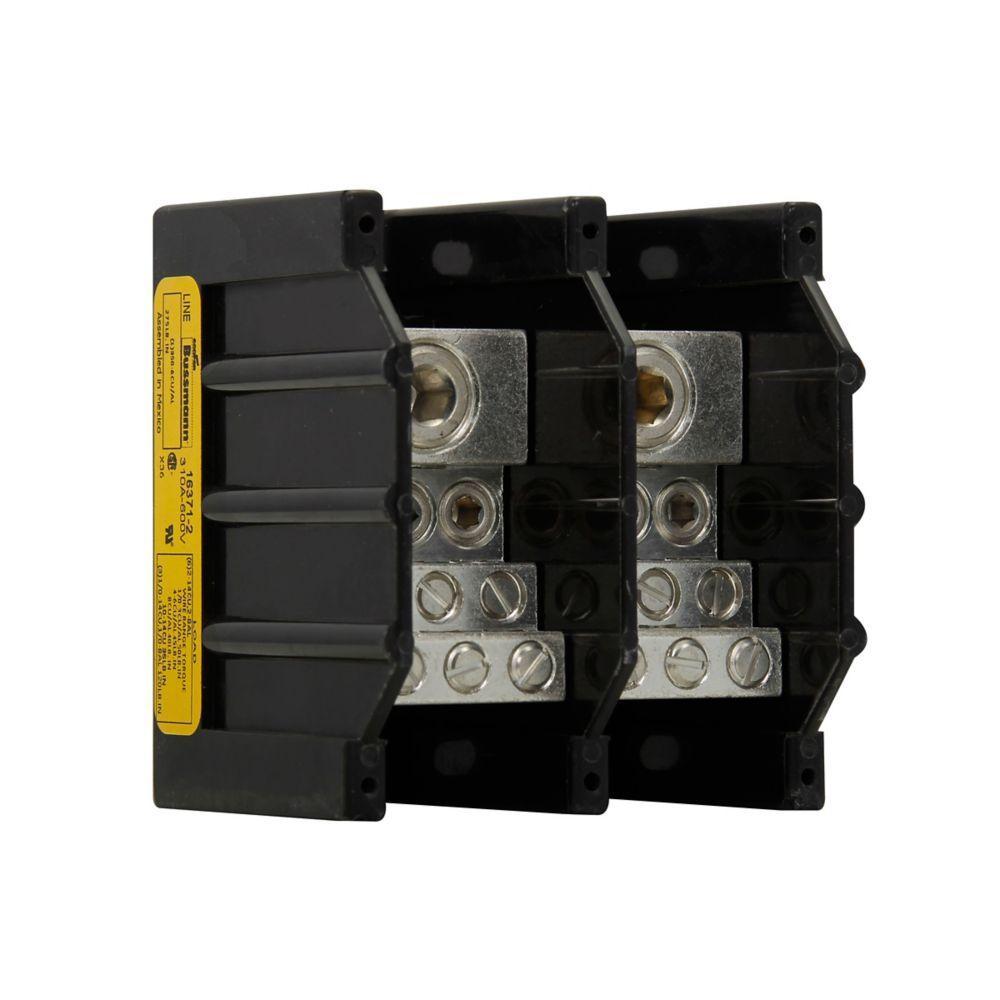

Bussmann 16371-2 Power Distribution Block
Part Number # 16371-2
SKU # 7279
Bussmann 16371-2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16371-2 |
| SKU #: | 7279 |
| Amperage Rating: | 310, 310 A |
| Dimensions: | 3.6 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 2 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Type: | Barrier |
| Wire Size: | 6 AWG to 350 kcmil |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712271387 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16371-2 Power Distribution Block
Brand: Bussmann
Part Number: 16371-2
Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 310 A, 2 Pole, 1 Primary Connections/Pole, 9 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 3.6 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16371-2 (N) 18PK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Two-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16371-2
16371-2 Application
Electrical Assemblies, Panels and OEMs Applications16371-2 Item Features
- 6 AWG to 350 kcmil copper/aluminum line side, 14 to 2 AWG, 14 to 1/0 AWG copper, 8 to 2 AWG, 8 to 1/0 AWG aluminum load side wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
16371-2 Standards
CE Certified|CSA 6228-01/53787|RoHS Compliant|UL 1059|UL 508A|UL 94-V-0 Flammability Rating|UL File No. E221592|UL Guide XCFR2SKU #7279Part Number #16371-2UNSPSC39121629UPC00051712271387
Image provided may only be a representation of final product and may include optional equipment
