16372-1

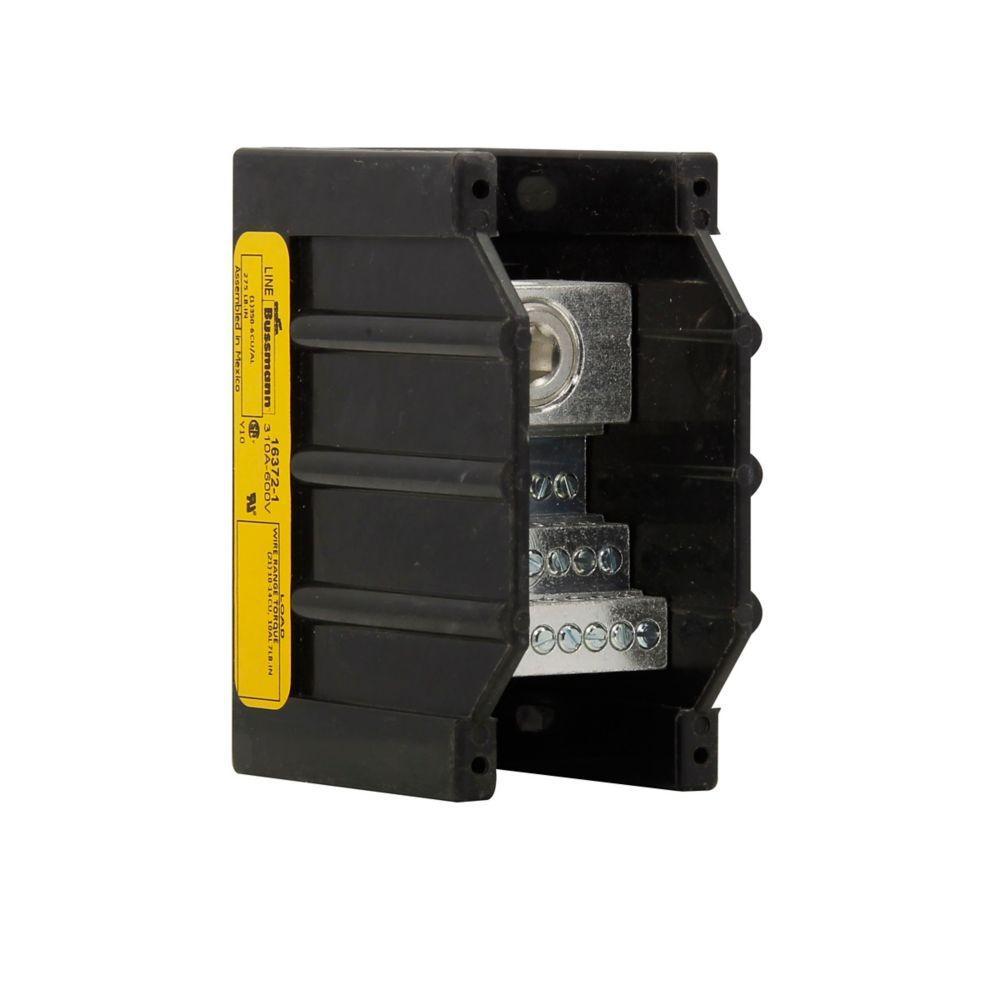

Bussmann 16372-1 Power Distribution Block
Part Number # 16372-1
SKU # 2340344
$227.71 / Each
Typical price:$422.09 / Each
Bussmann 16372-1 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16372-1 |
| SKU #: | 2340344 |
| Amperage Rating: | 310, 310 A |
| Dimensions: | 1.98 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier |
| Wire Size: | 1/0 AWG Cu/Al, 6 to 1 AWG Cu/Al, 2/0 AWG to 350 kcmil Cu/Al Line, 10 AWG Cu/Al, 14 to 12 AWG Cu Load, 2/0 AWG to 350 kcmil Cu/Al, 1/0 AWG Cu/Al, 6 to 1 AWG Cu/Al, 10 AWG Cu/Al, 14 to 12 AWG Cu, 6 AWG to 350 kcmil, 14 to 10 AWG |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic, Tin Plated Aluminum/Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712148870 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$227.71 / Each
Typical price:$422.09 / Each
Quantity:
- Bussmann Power Distribution Block, Barrier, Series: 163, 600 V AC/DC, 310 A, 1 Pole, 1/0 AWG Cu/Al, 6 to 1 AWG Cu/Al, 2/0 AWG to 350 kcmil Cu/Al Line, 10 AWG Cu/Al, 14 to 12 AWG Cu Load Wire, 10 kA Short Circuit Current, Aluminum/Thermoplastic, Tin Plated, Black, 1.98 in L x 4 in W x 3.32 in H
16372-1 Application
Electrical Assemblies, Panels and EOEMs Applications16372-1 Item Features
- Molded thermoplastic base, tin plated aluminum connector
- 1/0 AWG copper/aluminum stranded, 6 to 1 AWG copper/aluminum, 2/0 AWG to 350 kcmil copper/aluminum stranded line side, 10 AWG copper/aluminum, 14 to 12 AWG copper load side wire size
- https://www.youtube.com/watch?v=YMvqUyoETXk
16372-1 Standards
RoHS Compliant,Contact factorySKU #2340344Part Number #16372-1UNSPSC39121629UPC00051712148870
