Part Number # 16376-1
SKU # 2403434
16376-1
Bussmann 16376-1 Power Distribution Block
Part Number # 16376-1
SKU # 2403434
Bussmann 16376-1 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16376-1 |
| SKU #: | 2403434 |
| Amperage Rating: | 420 A |
| Dimensions: | 1.98 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 10 kA |
| Type: | Barrier |
| Wire Size: | 2 AWG to 600 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu/8 to 2 AWG Al, (3) 14 to 1/0 AWG Cu, 8 to 1/0 AWG Al Load |
| Material: | Aluminum/Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712271400 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16376-1 Power Distribution Block
Brand: Bussmann
Part Number: 16376-1
Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 420 A, 1 Pole, 1 Primary Connections/Pole, 9 Secondary Connection/Pole, 2 AWG to 600 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu/8 to 2 AWG Al, (3) 14 to 1/0 AWG Cu, 8 to 1/0 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 1.98 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16376-1 (N) DISTRIBUTION BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 420 A, Single-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
16376-1 Application
Electrical Assemblies, Panels and EOEMs Applications16376-1 Item Features
- 2 AWG to 600 kcmil copper/aluminum line, (6) 14 to 2 AWG copper/8 to 2 AWG aluminum, (3) 14 to 1/0 AWG copper, 8 to 1/0 AWG aluminum load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16376-1 Standards
RoHS Compliant,Contact factorySKU #2403434Part Number #16376-1UNSPSC39121629UPC00051712271400

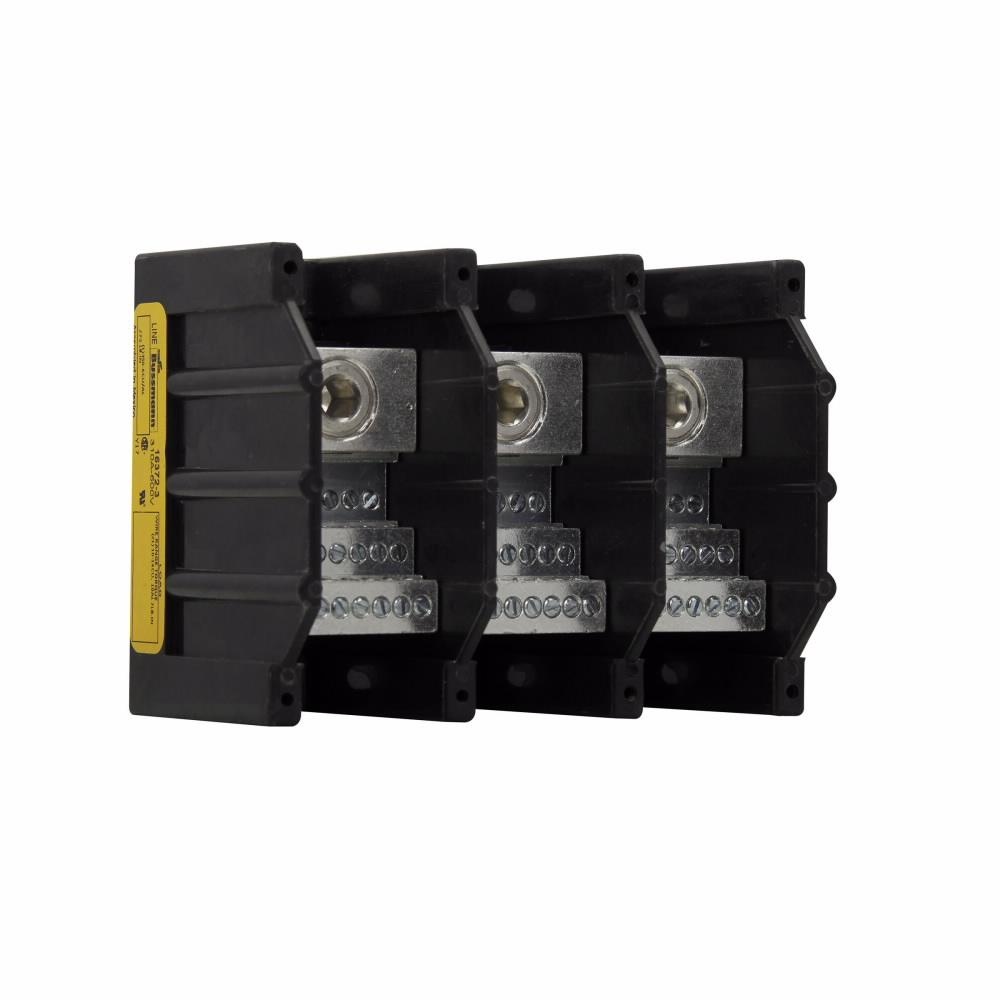

Image provided may only be a representation of final product and may include optional equipment
