Part Number # 16378-3
SKU # 2345009
16378-3

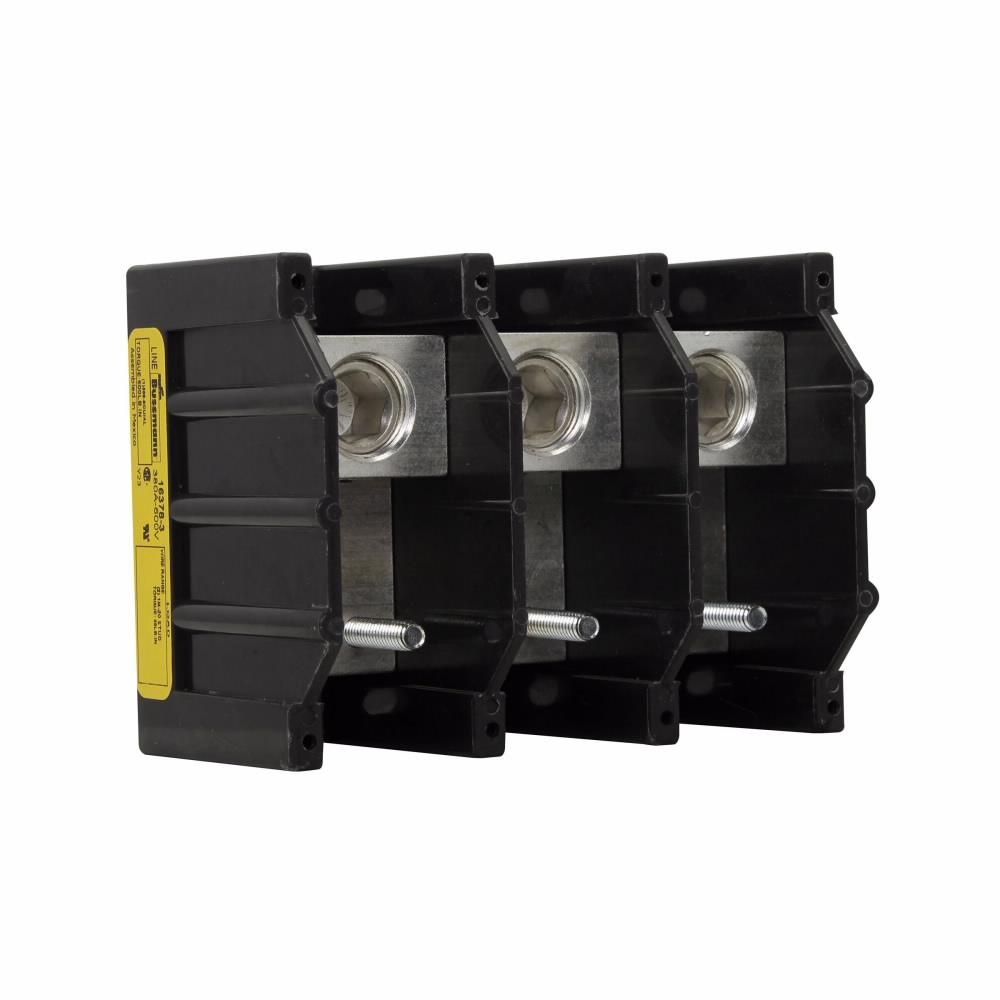

Bussmann 16378-3 Power Distribution Block
Part Number # 16378-3
SKU # 2345009
Bussmann 16378-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16378-3 |
| SKU #: | 2345009 |
| Amperage Rating: | 380, 380 A |
| Dimensions: | 5.21 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 3 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier, Barrier Connector to Stud, Barrier/Connector to Stud |
| Wire Size: | 6 AWG to 500 kcmil, 6 AWG to 500 kcmil Cu/Al Line |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712271547 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16378-3 Power Distribution Block
Brand: Bussmann
Part Number: 16378-3
Bussmann Power Terminal Block, Barrier, Series: 163, 600 VAC/VDC, 380 A, 3 Pole, 1 Primary Connections/Pole, (2) 1/4-20 x 1 in Stud Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16378-3 (N) TERMINAL BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 380 A, Three-pole, (2) 1/4 Inches-20 TPI X 1 Inches Stud (Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
16378-3 Application
Electrical Assemblies, Panels and EOEMs Applications16378-3 Item Features
- 6 AWG to 500 kcmil copper/aluminum line, 1/4-20 x 1 in stud load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16378-3 Standards
Contact Manufacturer,RoHS Compliant,Contact factorySKU #2345009Part Number #16378-3UNSPSC39121629UPC00051712271547
Image provided may only be a representation of final product and may include optional equipment
