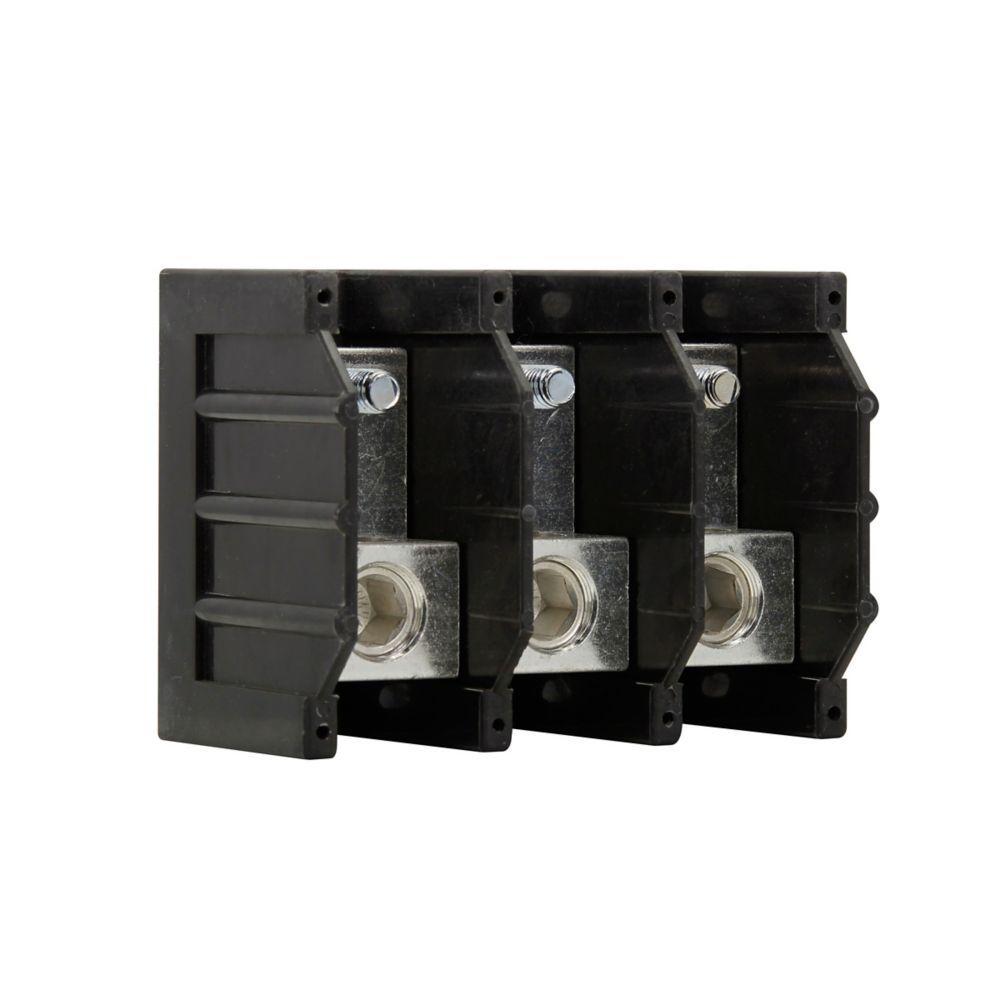

Bussmann 16383-3 Power Distribution Block
Part Number # 16383-3
SKU # 1552543
$293.53 / Each
Typical price:$544.08 / Each
Bussmann 16383-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16383-3 |
| SKU #: | 1552543 |
| Amperage Rating: | 380, 380 A |
| Dimensions: | 5.21 in L x 4 in W x 3.32 in H |
| Finish: | Tin Plated |
| Number of Poles: | 3 |
| Series: | 163 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier, Barrier Connector to Stud, Barrier/Connector to Stud |
| Wire Size: | 6 AWG to 500 kcmil, 6 AWG to 500 kcmil Cu/Al Line |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121410 |
| UPC: | 00051712271455 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$293.53 / Each
Typical price:$544.08 / Each
Quantity:
- Bussmann Power Terminal Block, Barrier, Series: 163, 600 V AC/DC, 380 A, 3 Pole, 1 Primary Connections/Pole, (1) 3/8-16 x 1 in Stud Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
16383-3 Application
Electrical Assemblies, Panels and EOEMs Applications16383-3 Item Features
- 6 AWG to 500 kcmil copper/aluminum line, 3/8-16 x 1 in stud load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16383-3 Standards
CE Certified|CSA Class 6228-01 File No. 53787|UL 94-V-0 Flammability Rating|UL File No. 1059/508A/E221592 Guide XCFR2SKU #1552543Part Number #16383-3UNSPSC39121410UPC00051712271455
