Part Number # 16395-3
SKU # 2257852
Image Disclaimers Message
Brand: Bussmann
16395-3

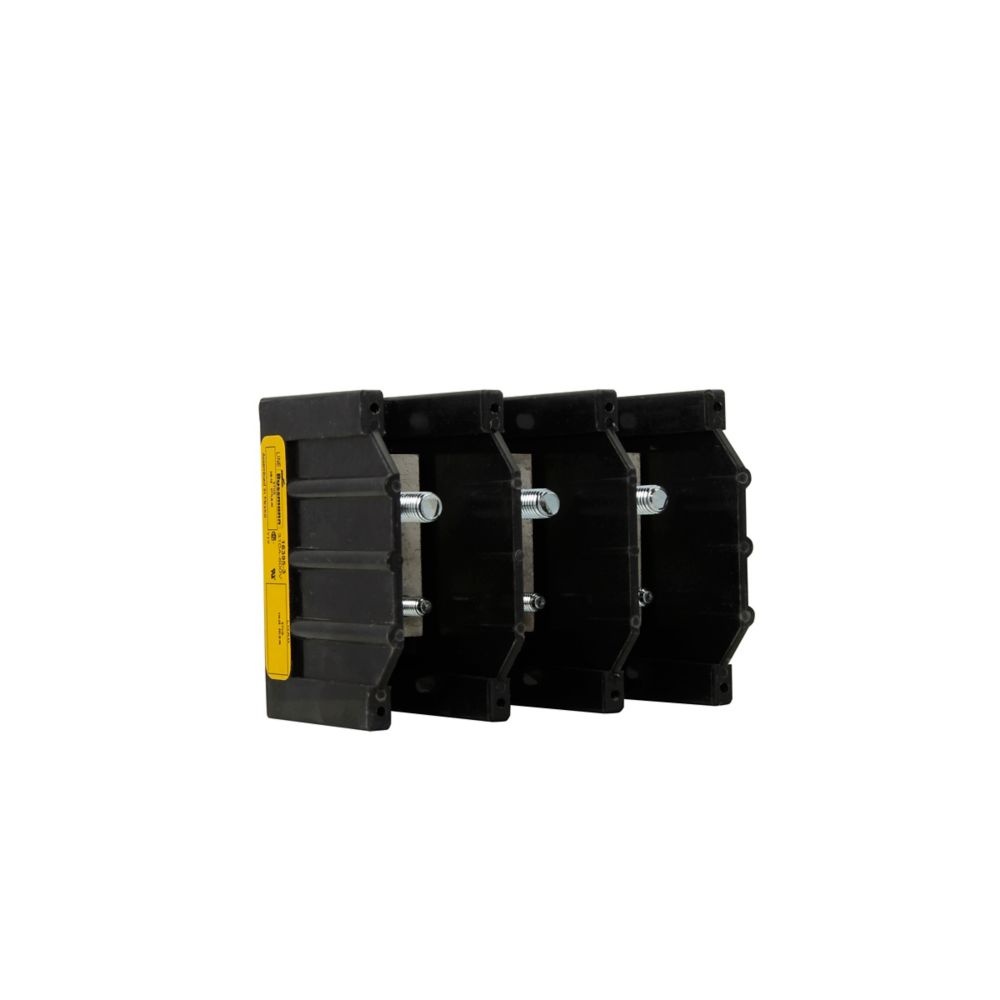

Bussmann 16395-3 Power Distribution Block
Part Number # 16395-3
SKU # 2257852
$242.84 / Each
Typical price:$356.98 / Each
Bussmann 16395-3 Key Features
Brand: | Bussmann |
---|---|
Part Number # : | 16395-3 |
SKU #: | 2257852 |
Amperage Rating: | 310, 310 A |
Dimensions: | 5.21 in L x 4 in W x 3.32 in H |
Finish: | Tin Plated |
Number of Poles: | 3 |
Series: | 163 |
Short Circuit Current Rating (kA): | 10, 10 kA |
Type: | Barrier Stud to Stud, Barrier/Connector to Stud |
Wire Size: | (1) 3/8-16 x 1-7/16 in Stud, (2) 1/4-20 x 9/16 in Load Stud, 14 to 2/0 |
Color: | Black |
Country of origin: | MX |
Material: | Aluminum/Thermoplastic, Thermoplastic |
Manufacturer Name: | Eaton |
UNSPSC: | 39121629 |
UPC: | 00051712247672 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$242.84 / Each
Typical price:$356.98 / Each
Quantity:
- Bussmann Power Distribution Block, Barrier Stud to Stud, 600 V AC/DC, 310 A, 3 Pole, (1) 3/8-16 x 1-7/16 in Stud, (2) 1/4-20 x 9/16 in Load Stud Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
16395-3 Specifications
- Rated for dual wire port application to increase the possible number of lineside and loadside connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- (1) stud primary, (2) stud secondary
- 3/8-16 x 1-7/16 stud line, (2) 1/4-20 x 9/16 stud load
16395-3 Application
Electrical Assemblies, Panels and OEMs Applications16395-3 Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
16395-3 Standards
CE Certified|CSA 6228-01/File No. 53787|RoHS Compliant|UL 94-V-0 Flammability Rating|UL File No. E221592 per UL 1059|UL Guide XCFR2SKU #2257852Part Number #16395-3UNSPSC39121629UPC00051712247672
