Part Number # 16528-1
SKU # 2334054
16528-1

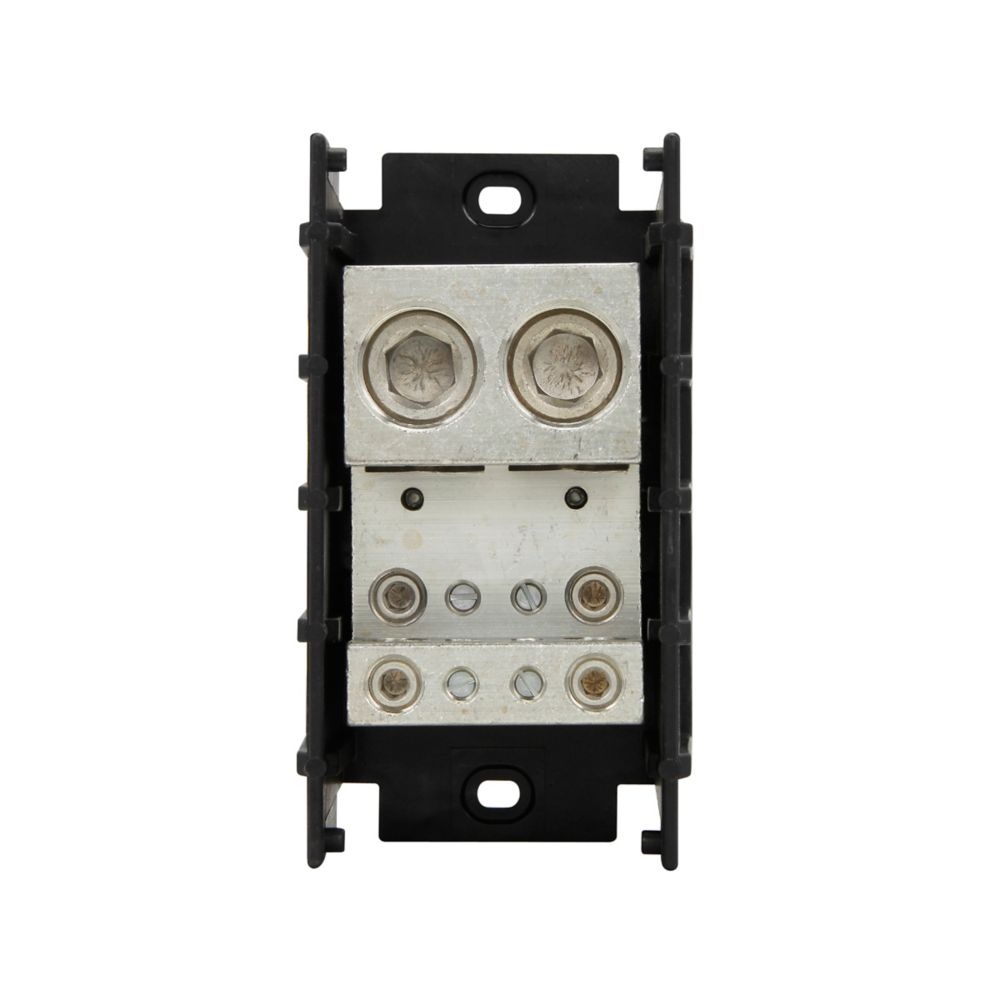

Bussmann 16528-1 Power Distribution Block
Part Number # 16528-1
SKU # 2334054
Bussmann 16528-1 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16528-1 |
| SKU #: | 2334054 |
| Amperage Rating: | 840, 840 A |
| Dimensions: | 3.1 in L x 5.5 in W x 2.93 in H |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Series: | 165 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier Splicer Standard, Barrier/Standard |
| Wire Size: | 2 AWG to 600 kcmil, 2 AWG to 600 kcmil, 14 to 4 AWG |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712149938 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16528-1 Power Distribution Block
Brand: Bussmann
Part Number: 16528-1
Bussmann Power Distribution Block, Barrier Splicer Standard, Series: 165, 600 VAC/VDC, 840 A, 1 Pole, 2 Primary Connections/Pole, 4 Secondary Connection/Pole, 2 AWG to 600 kcmil Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 3.1 in L x 5.5 in W x 2.93 in H
Additional Description: BUSS-16528-1 POWER DIST. BLOCK 6PK
Catalog Description: Eaton Bussmann series power distribution block, Flammability Rating UL 94-V0, 600 Vac, 600 Vdc, 840 A, Single-pole, Black, Molded Thermoplastic
16528-1 Application
Electrical Assemblies, Panels and OEMs Applications16528-1 Item Features
- (2) 2 AWG to 600 kcmil copper/aluminum line side, (4) 6 to 3/0 AWG copper/aluminum, 14 to 4 AWG copper/aluminum load side wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
16528-1 Standards
CE Certified|CSA 6228-01/File No. 53787|RoHS Compliant|UL 1059|UL 94-V-0 Flammability Rating|UL Guide XCFR2SKU #2334054Part Number #16528-1UNSPSC39121629UPC00051712149938
Image provided may only be a representation of final product and may include optional equipment
