Part Number # 16530-3
SKU # 2279582
Image provided may only be a representation of
final product and may include optional equipment
16530-3

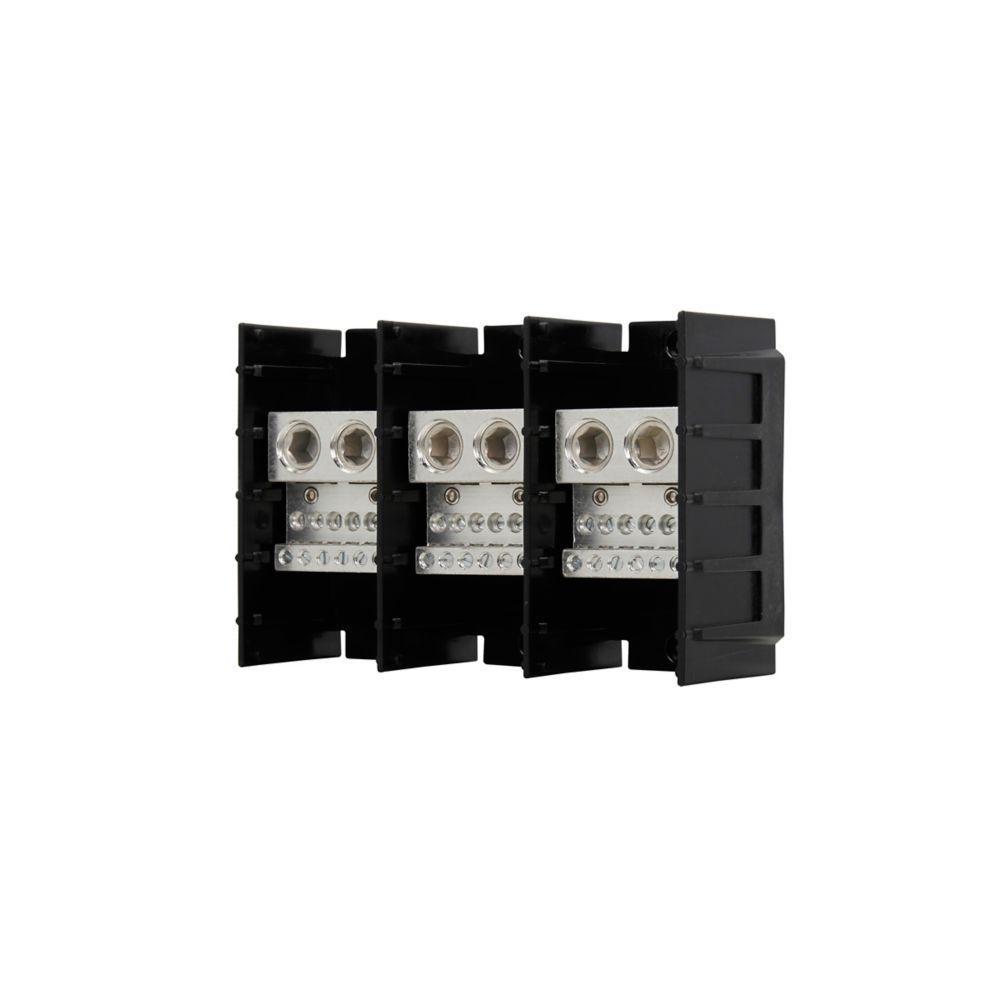

Bussmann 16530-3 Power Distribution Block
Part Number # 16530-3
SKU # 2279582
Bussmann 16530-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16530-3 |
| SKU #: | 2279582 |
| Amperage Rating: | 760, 760 A |
| Dimensions: | 8.48 in L x 5.5 in W x 2.93 in H |
| Finish: | Tin Plated |
| Number of Poles: | 3 |
| Series: | 165 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier Standard, Standard |
| Wire Size: | 6 AWG to 500 kcmil, 6 AWG to 500 kcmil Cu/Al Line, 14 to 4 AWG Cu AL Load |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712149020 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16530-3 Power Distribution Block
Brand: Bussmann
Part Number: 16530-3
Bussmann Power Distribution Block, Standard, Series: 165, 600 VAC/VDC, 760 A, 3 Pole, 2 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line, 14 to 4 AWG Cu AL Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 8.48 in L x 5.5 in W x 2.93 in H
Additional Description: BUSS-16530-3 PWR TRM. BLK 6PK
Catalog Description: Eaton Bussmann series power distribution block, Flammability Rating UL 94-V0, 600 Vac, 600 Vdc, 760 A, Three-pole, Black, Molded Thermoplastic
16530-3 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16530-3 Item Features
- 6 AWG to 500 kcmil copper/aluminum line, 14 to 4 AWG copper/aluminum load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16530-3 Standards
CE Certified|CSA File No. 53787|RoHS Compliant|UL 1059/508A File No. E221592 Guide XCFR2|UL 94 V-0 Flammability RatingSKU #2279582Part Number #16530-3UNSPSC39121629UPC00051712149020
