Brand: Bussmann
16541-3

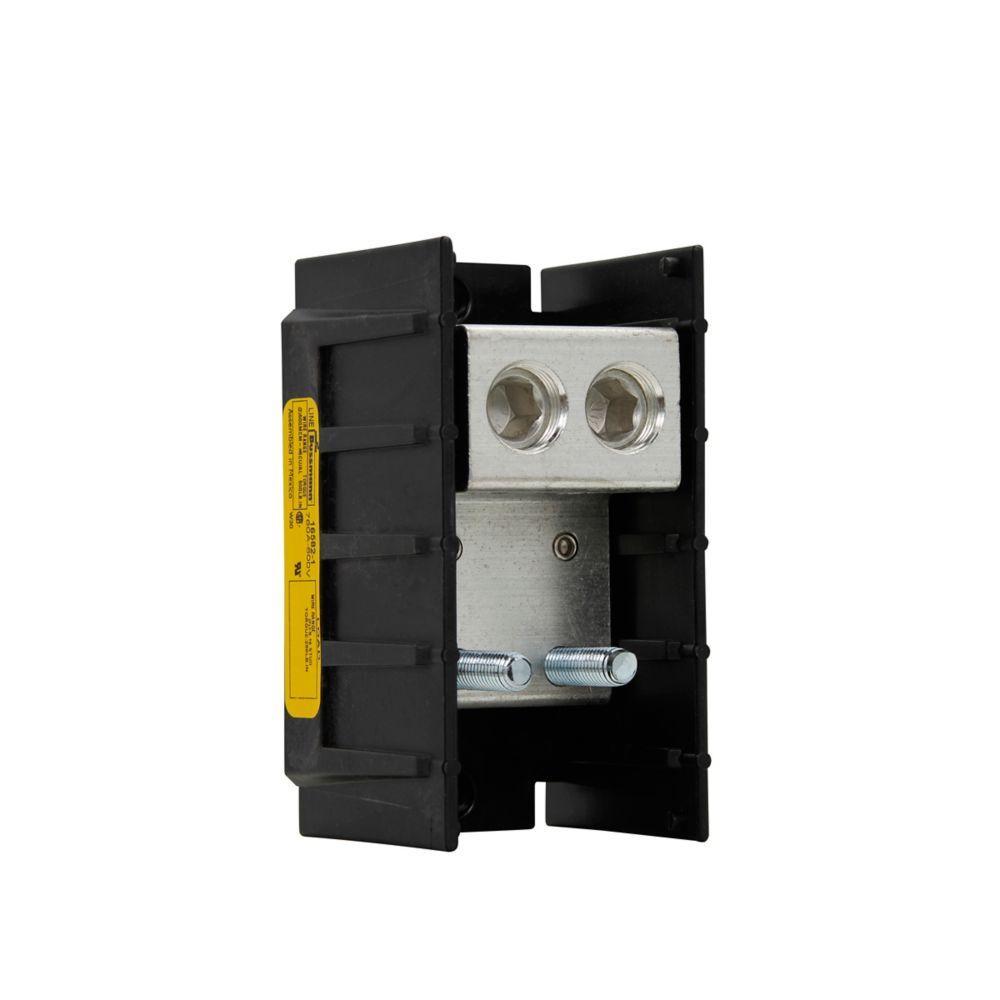

Bussmann 16541-3 Power Terminal Block
Part Number # 16541-3
SKU # 2136043
$975.27 / Each
Typical price:$1983.21 / Each
Bussmann 16541-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16541-3 |
| SKU #: | 2136043 |
| Amperage Rating: | 380, 380 A |
| Dimensions: | 8.48 in L x 5.5 in W x 2.93 in H |
| Finish: | Tin Plated |
| Number of Poles: | 3 |
| Series: | 165 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier |
| Wire Size: | 6 AWG to 500 kcmil, 6 AWG to 500 kcmil Cu/Al Line, (21) 14 to 6 AWG Cu/Al Load |
| Color: | Black |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712208420 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$975.27 / Each
Typical price:$1983.21 / Each
Quantity:
- Bussmann Magnum Power Distribution Block, Barrier, Series: 165, 600 V AC/DC, 380 A, 3 Pole, (1) Screw Primary Connections/Pole, (3) 1/4 in Quick Connect Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line, (21) 14 to 6 AWG Cu/Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 8.48 in L x 5.5 in W x 2.93 in H
16541-3 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16541-3 Item Features
- Rated for dual wire port application to increase the possible number of line side and load side connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- https://www.youtube.com/watch?v=YMvqUyoETXk
16541-3 Standards
CE Certified|CSA Class 6228-01/53787|Guide XCFR2|UL File No. E221592/1059|UL ListedSKU #2136043Part Number #16541-3UNSPSC39121629UPC00051712208420
